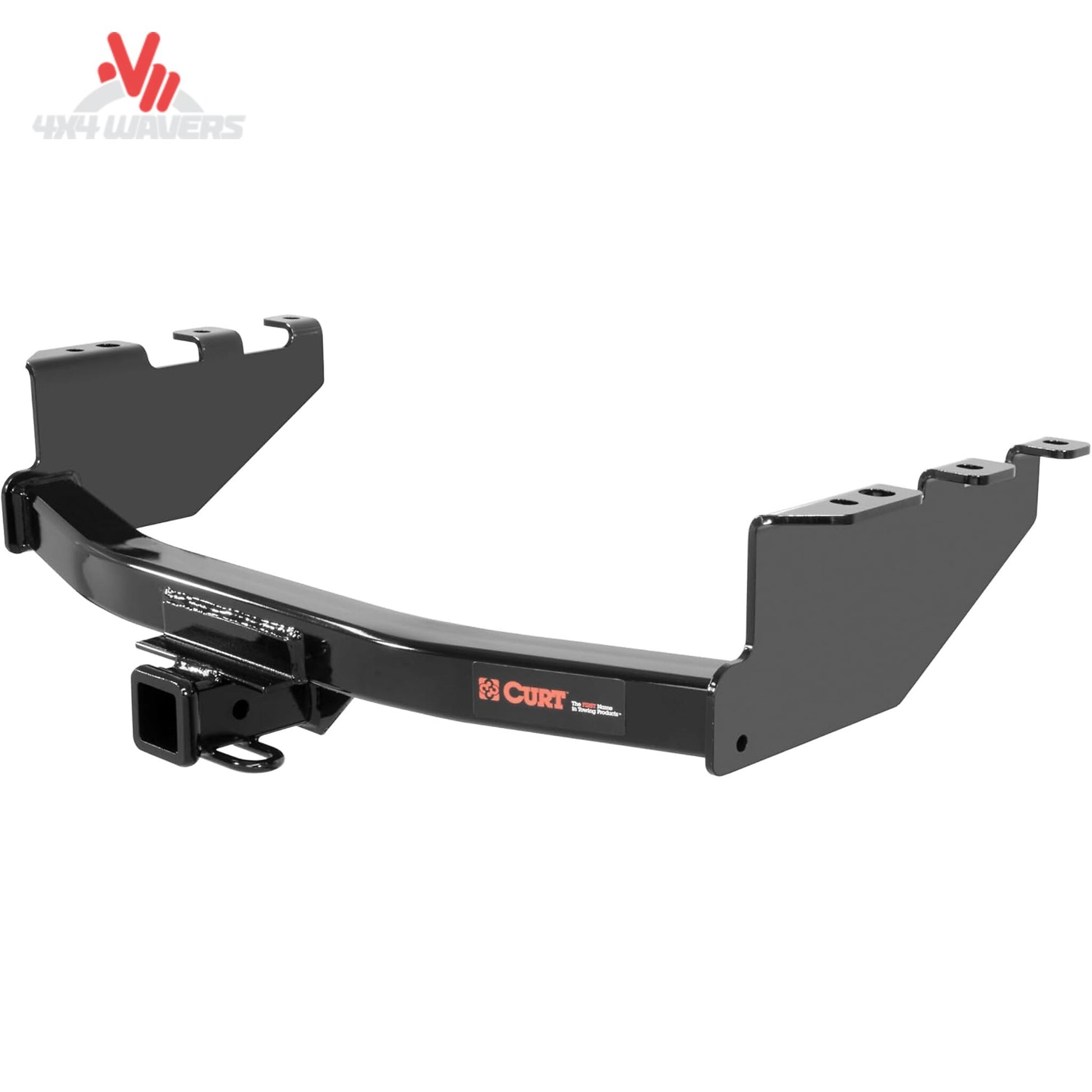

• CURT 14006 black powder coated Class 4 rear receiver hitch assembly SKU 14006

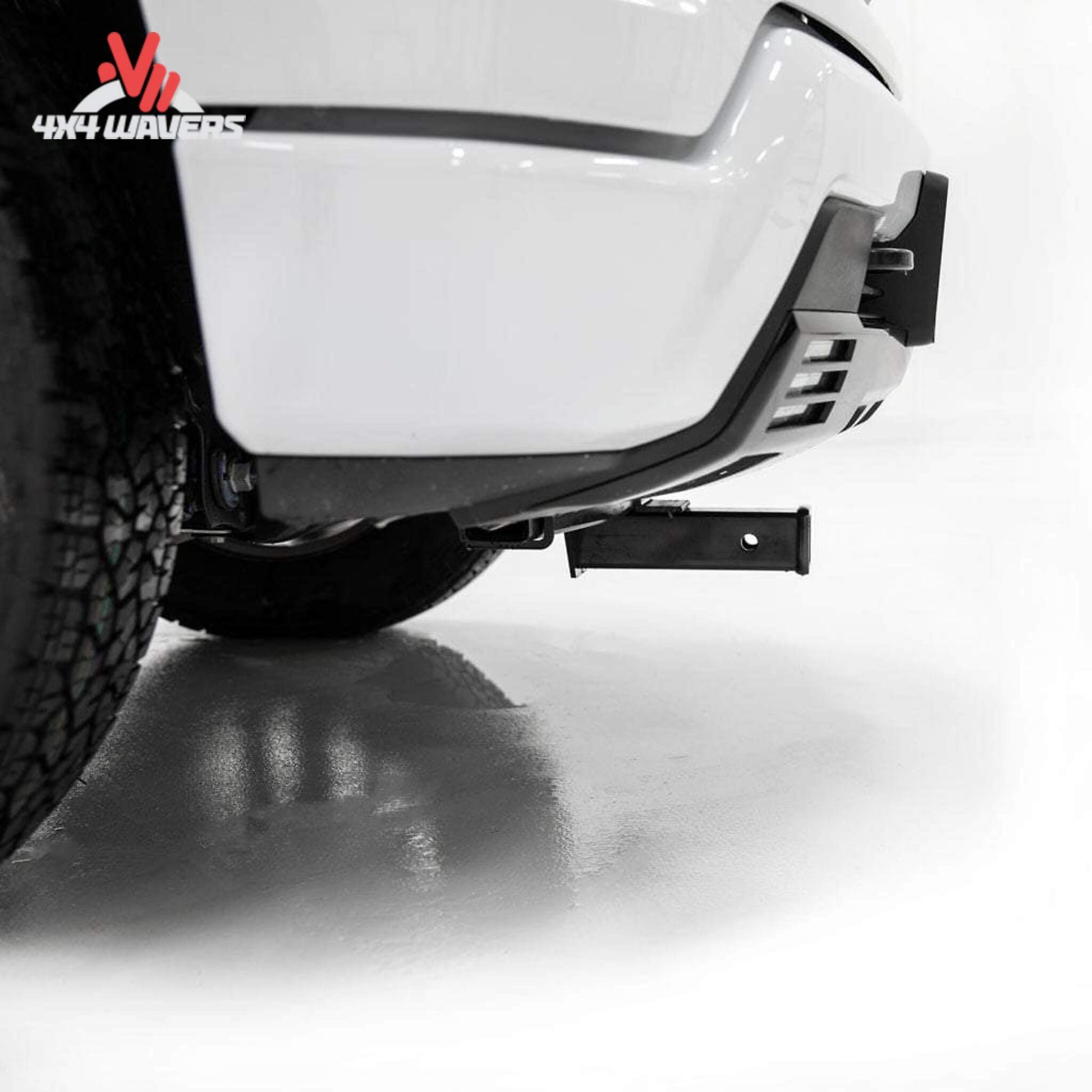

  • Concealed main body CURT 2 inch receiver hitch installed on GMC Sierra 1500 SKU 14006

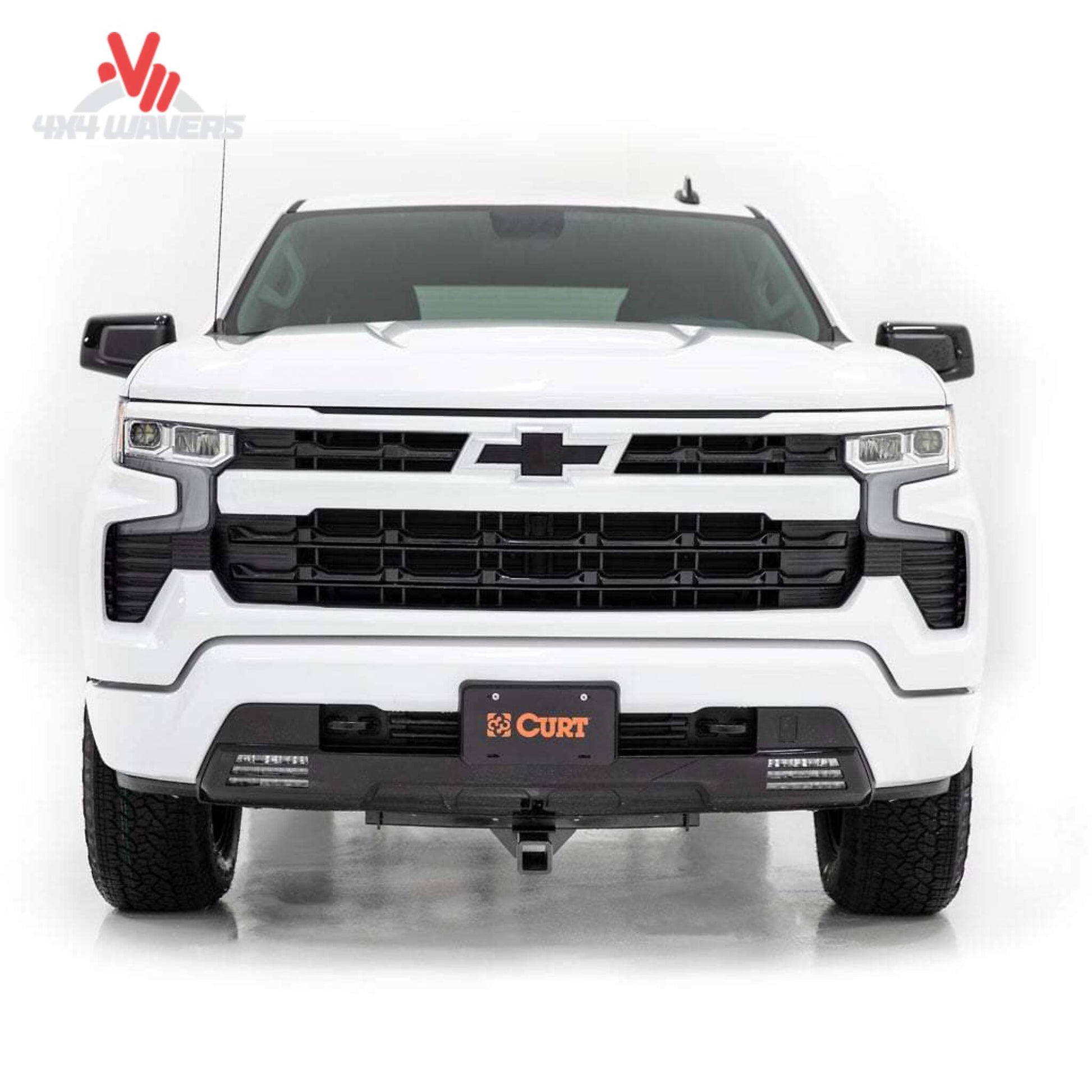

  • Installed CURT 14006 Class 4 hitch under rear bumper of Chevy Silverado SKU 14006

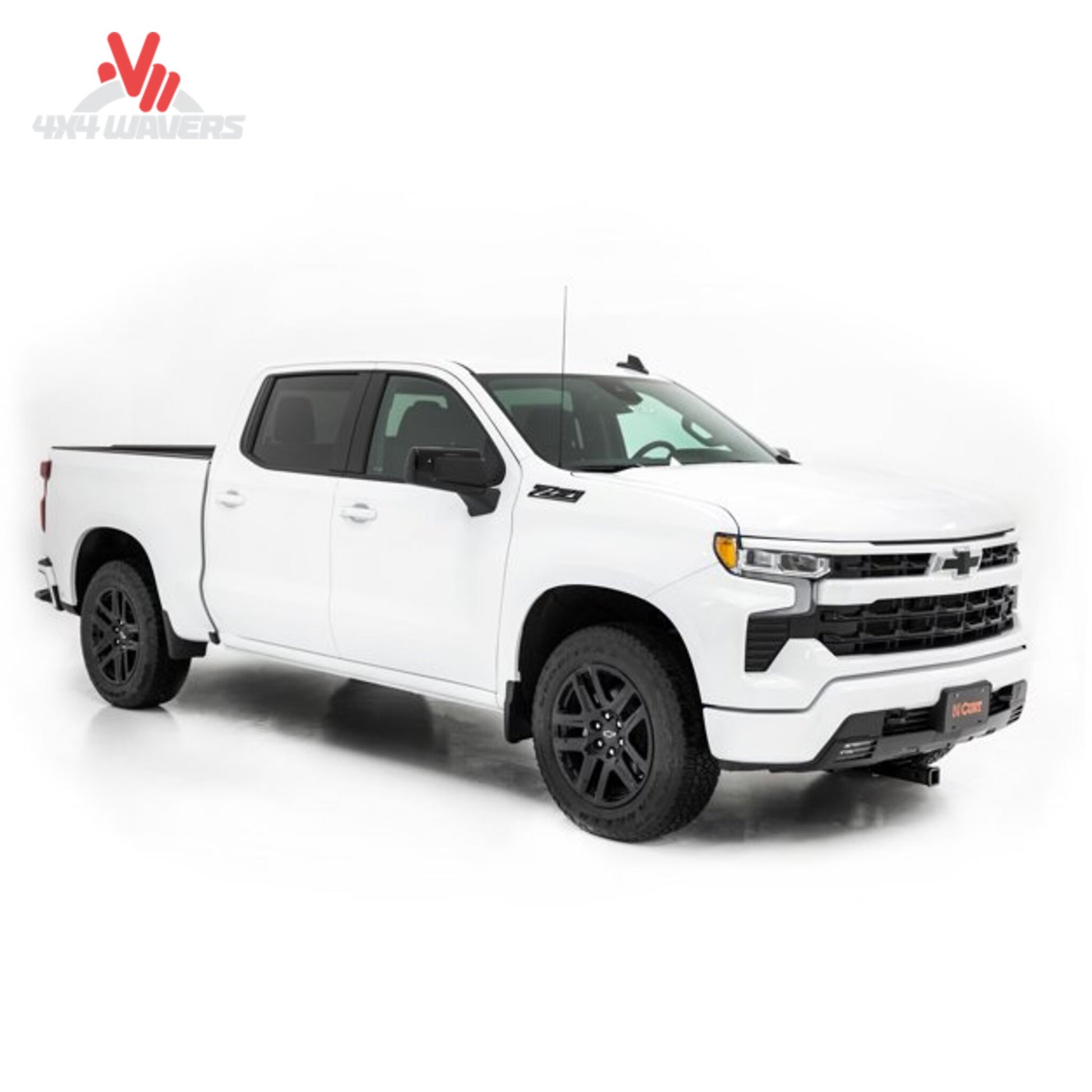

  • Concealed main body CURT 2 inch receiver hitch installed on GMC Sierra 1500 SKU 14006
  • Receiver tube size indicator with arrows and '2"' text.

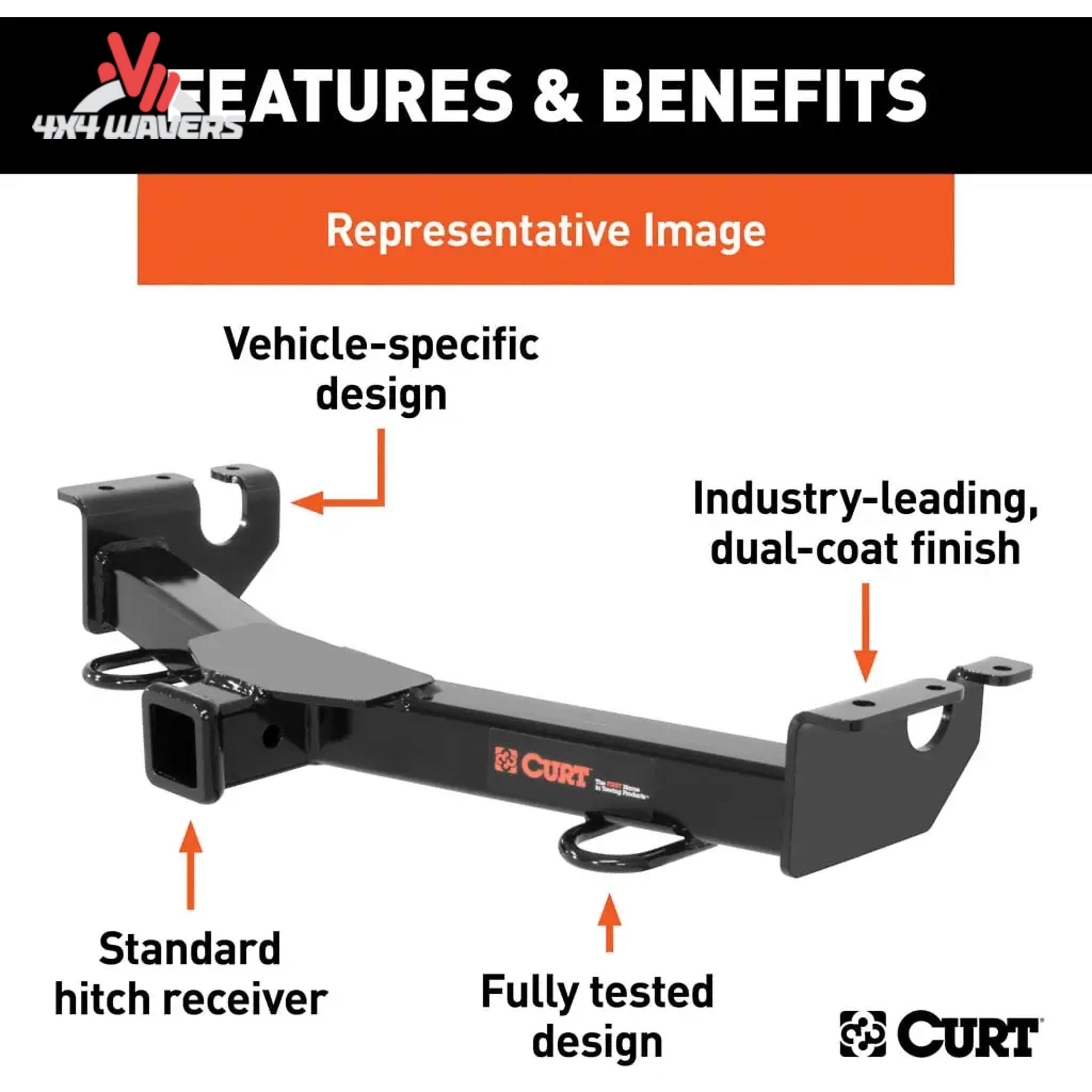

  • A black CURT hitch receiver shown on a white infographic with callout labels reading 'Vehicle-specific design,' 'Industry-leading, dual-coat finish,' 'Standard hitch receiver,' and 'Fully tested design.' The top banner includes 'FEATURES & BENEFITS'.

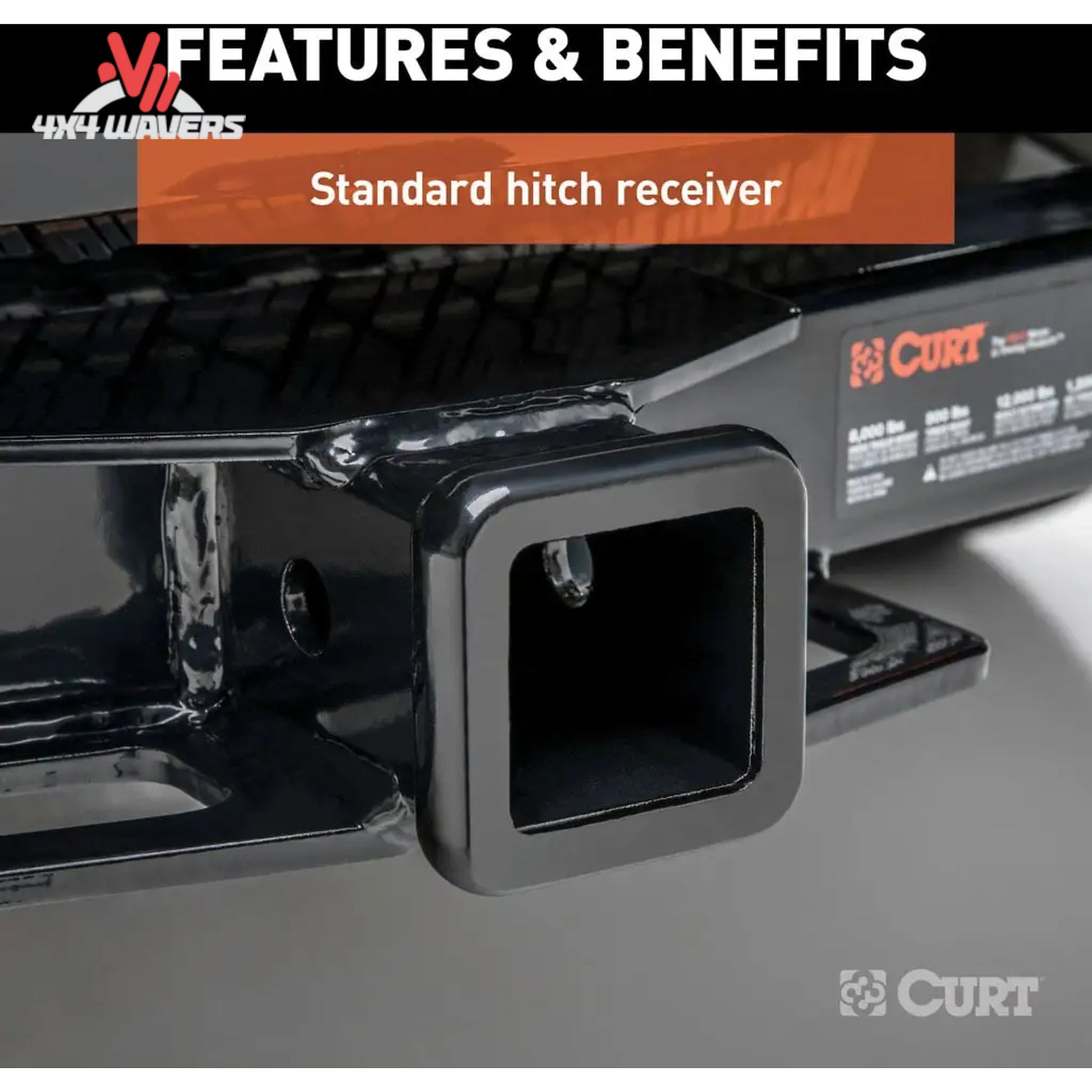

  • Close-up of a CURT hitch receiver with a black protective cover, under a banner reading 'Standard hitch receiver' with 'FEATURES & BENEFITS' at the top.

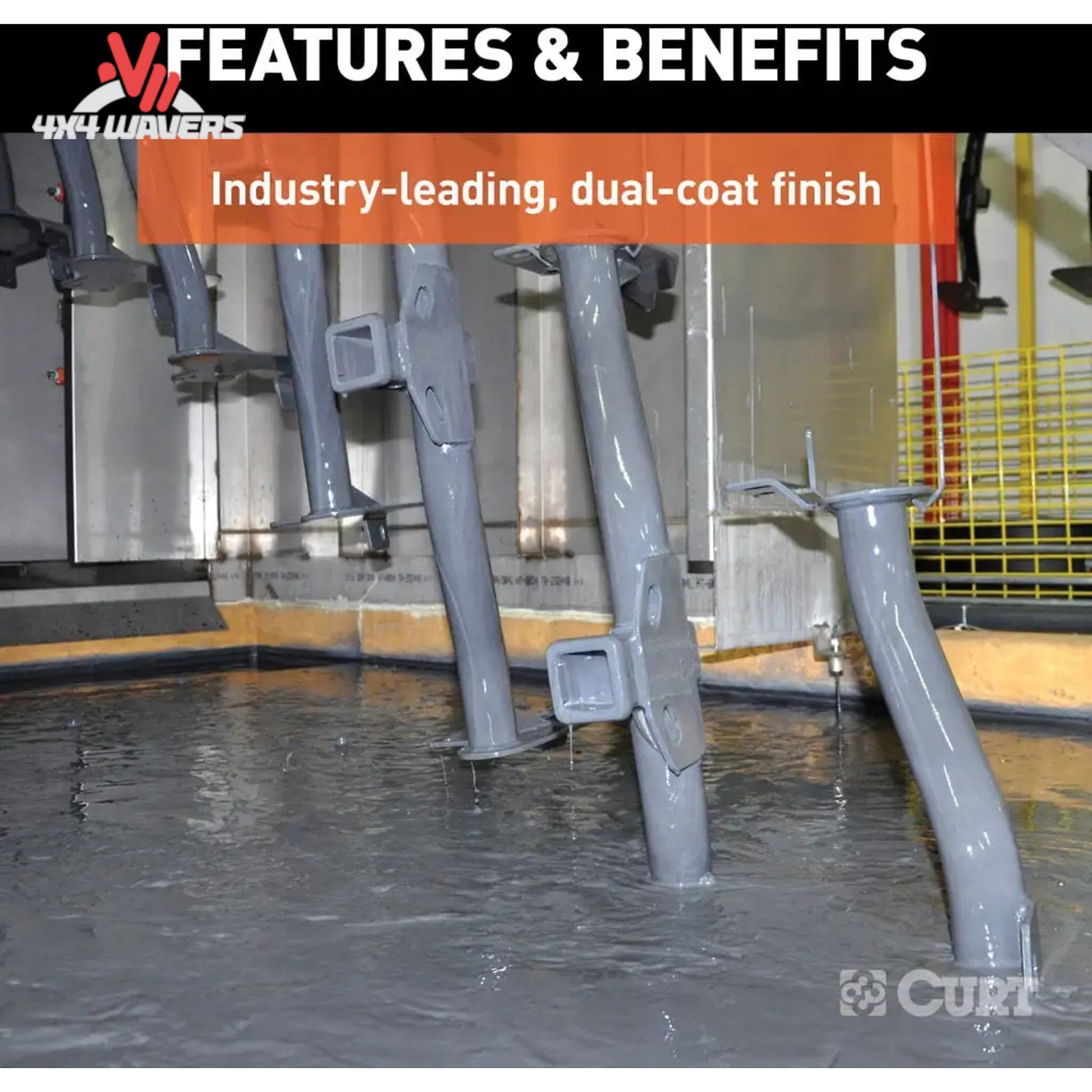

  • Gray metal structural components standing in a water-filled coating tank, with a black and orange banner at the top reading 'FEATURES & BENEFITS' and 'Industry-leading, dual-coat finish.' A Curt brand logo appears in the bottom right corner.

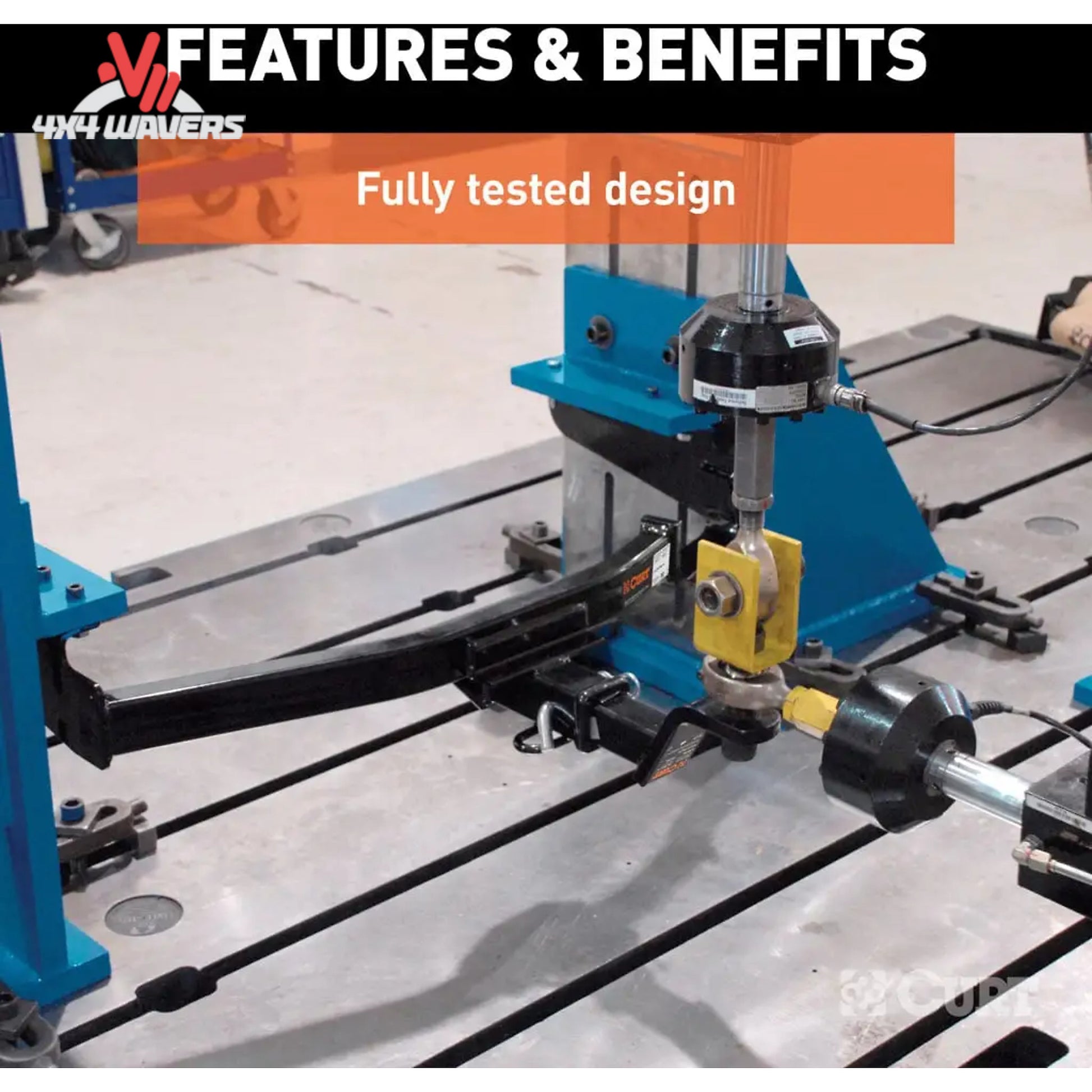

  • A close-up of a blue and black industrial machine mounted on a metal T-table, with overlaid text reading 'FEATURES & BENEFITS' and 'Fully tested design.'.

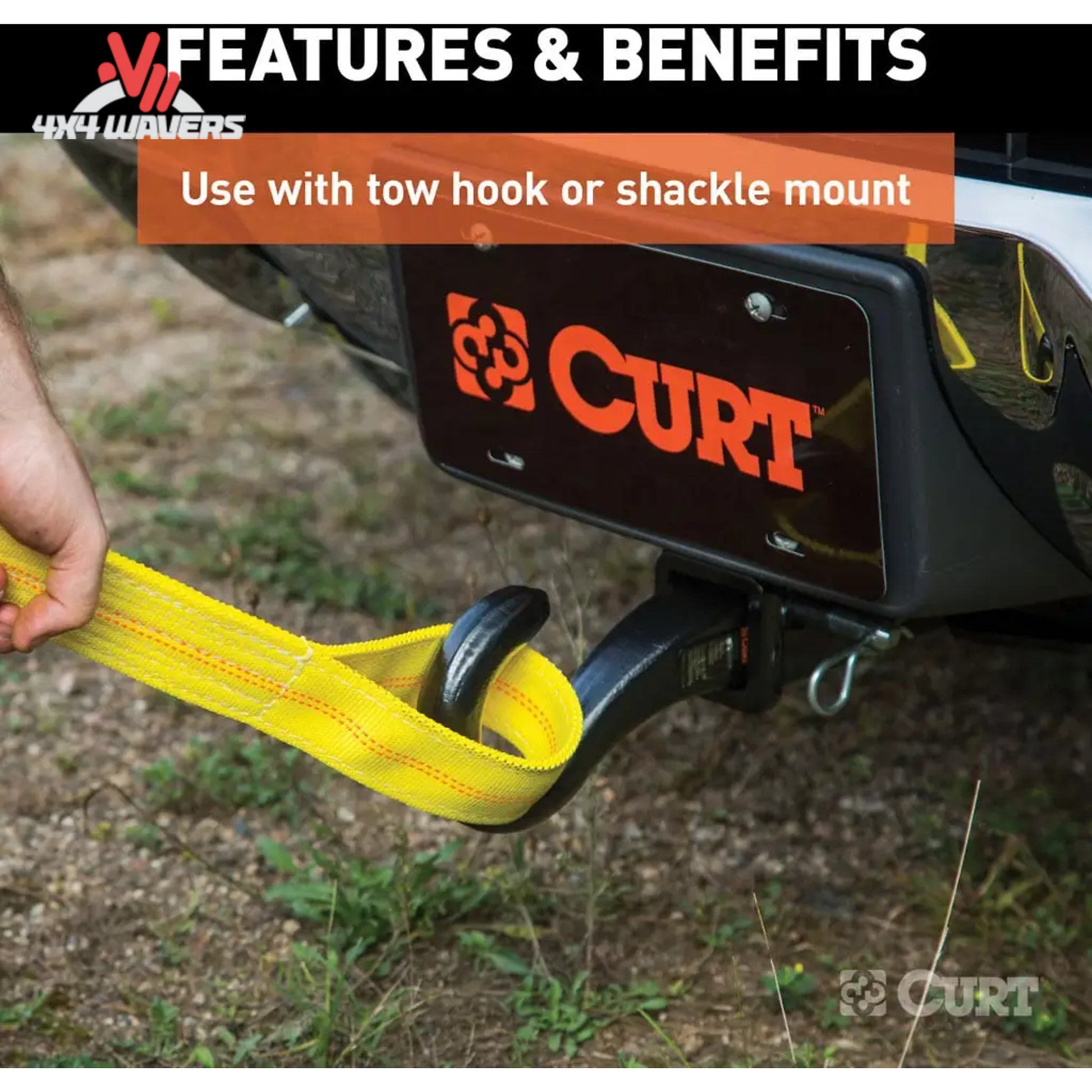

  • A yellow CURT tow strap being attached to a black hitch on a vehicle, with a hand holding the strap. The image includes a CURT logo.

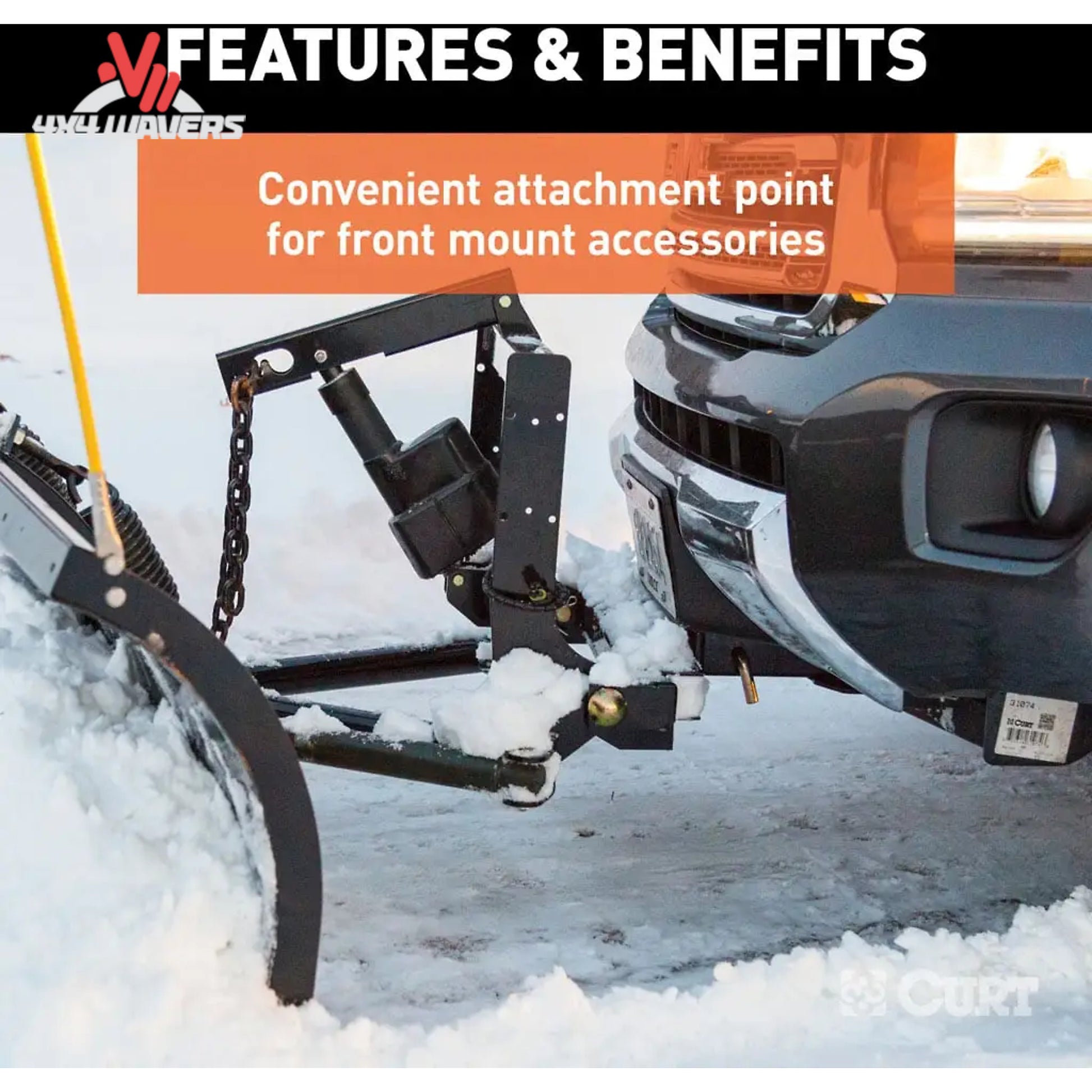

  • A snowmobile attachment bracket mounted between a snowmobile and a vehicle front bumper in a snowy outdoor setting, with text overlays reading 'FEATURES & BENEFITS' and 'Convenient attachment point for front mount accessories.'.
1 11

CURT

CURT Class 4 Receiver Hitch 2" | 14-18 GM 1500

CURT Class 4 Receiver Hitch 2" | 14-18 GM 1500

🚚 Free Shipping Across US & Canada For Orders +$200 📦 Customs Duties Included — No Surprises🇨🇦 Ships from Canada🛡️ 1-Year Warranty↺ Easy Returns 👥 Ships in 1-3 days🍁 North America Based Support
$419.00 CAD
$649.00 CAD $419.00 CAD
Sale Coming soon
Shipping calculated at checkout.

CURT Class 4 Heavy-Duty 2-Inch Rear Receiver Hitch for 2014-2018 Chevy Silverado & GMC Sierra 1500

The CURT Class 4 Custom Receiver Hitch expands your vehicle's towing capability, delivering heavy-duty hauling performance for 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500 pickup trucks. Custom-engineered with high-strength carbon steel and a concealed main body layout, this hitch integrates seamlessly under the rear bumper to maintain an OEM appearance while providing robust towing capacity.

According to structural towing assessments conducted by SEMA vehicle engineering groups, Class 4 receiver hitches distribute heavy trailer tongue weight directly across the truck's rear frame rails to minimize rear suspension sag and maintain steering stability. "The dual-stage protection system—combining an internal/external liquid Bonderite A-coat dip with a high-gloss black powder coat topcoat—prevents internal rust and surface flaking caused by winter road salt and slush," notes towing equipment specialist Marcus Vance.

Technical Specifications

Feature Specification Details
Hitch Class & Receiver Size Class 4 Receiver Hitch with 2-Inch x 2-Inch square opening
Weight Carrying (WC) Capacity 10,000 lbs Gross Trailer Weight (GTW) / 1,000 lbs Tongue Weight (TW)
Weight Distribution (WD) Capacity 12,000 lbs WD GTW / 1,200 lbs WD Tongue Weight (WDTW)
Material Construction Precision-welded high-strength carbon steel square tube design
Finish Protection Co-cured liquid A-coat (E-coat) & high-gloss black powder coat finish
Receiver Tube Feature Open-back receiver tube for easy cleaning of dirt and road debris
Safety Testing Tested and verified for safety in accordance with SAE J684 standards
Warranty Limited Lifetime Warranty (1-Year finish, 1-Year parts)

Vehicle Fitment

  • Make: Chevrolet / GMC
  • Model: Silverado 1500 / Sierra 1500
  • Years: 2014, 2015, 2016, 2017, 2018
  • Fitment Requirements: Fits 2WD and 4WD configurations across short, standard, and long bed lengths. Fits 2019 Silverado/Sierra 1500 LD / Limited legacy models.
  • Fitment Exclusions: Does NOT fit 2500HD / 3500HD heavy-duty trucks. Towing capacities are limited to vehicle manufacturer's stated maximum payload/towing specs.

Installation Notes

  • Easy bolt-on installation with novice-level difficulty and an estimated install time of 30 minutes.
  • No drilling or vehicle frame modification required; bolts directly into existing factory mounting locations.
  • Includes complete grade 8 mounting hardware (carriage bolts, square hole spacers, flange nuts) and installation instructions.

Frequently Asked Questions

What size shank accessories work with this hitch?

This Class 4 hitch features a standard 2-inch x 2-inch receiver opening, making it compatible with all industry-standard 2-inch shanks for ball mounts, weight distribution hitches, pintle mounts, and bike racks.

Can I use a weight distribution system with this hitch?

Yes. This hitch is engineered to work with weight distribution systems, boosting the maximum towing rating to 12,000 lbs GTW and 1,200 lbs tongue weight.
