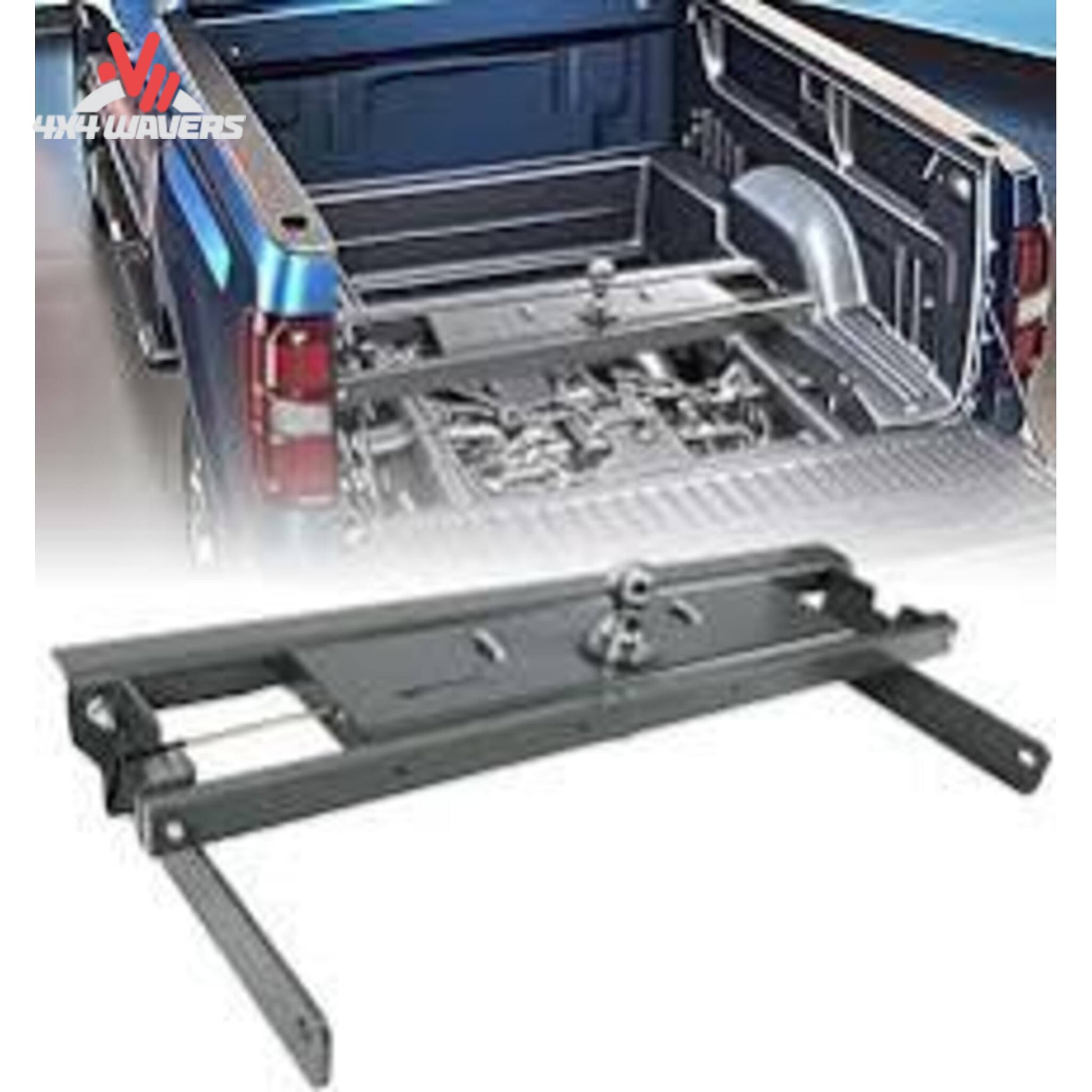

• Upright 2-5/16 inch gooseneck hitch ball positioned in 4-inch bed hole SKU GNRK1019
  • B and W Turnoverball under bed gooseneck hitch for 19-26 GM 1500 SKU GNRK1019
  • B and W GNRK1019 gooseneck hitch center section and 2-5/16 inch ball SKU GNRK1019
  • B and W GNRK1019 gooseneck hitch center section and 2-5/16 inch ball SKU GNRK1019
  • B and W Turnoverball under bed gooseneck hitch for 19-26 GM 1500 SKU GNRK1019
  • B and W Turnoverball under bed gooseneck hitch for 19-26 GM 1500 SKU GNRK1019
1 6

B&W Trailer Hitches

B&W Turnoverball Gooseneck | 19-26 GM 1500 5'10"/6'7"

B&W Turnoverball Gooseneck | 19-26 GM 1500 5'10"/6'7"

🚚 Free Shipping Across US & Canada For Orders +$200 📦 Customs Duties Included — No Surprises🇨🇦 Ships from Canada🛡️ 1-Year Warranty↺ Easy Returns 👥 Ships in 1-3 days🍁 North America Based Support
$819.00 CAD
$999.00 CAD $819.00 CAD
Sale Coming soon
Shipping calculated at checkout.

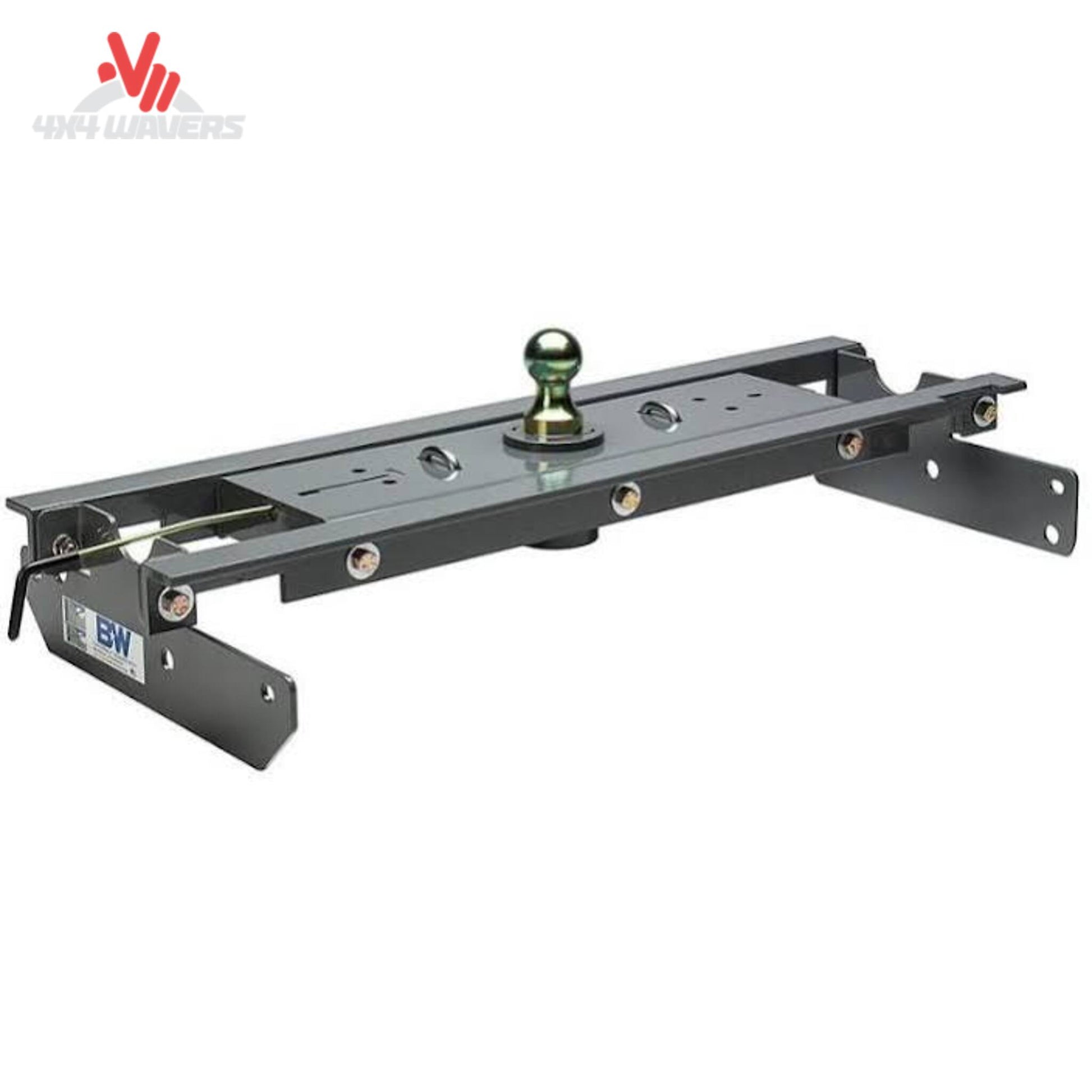

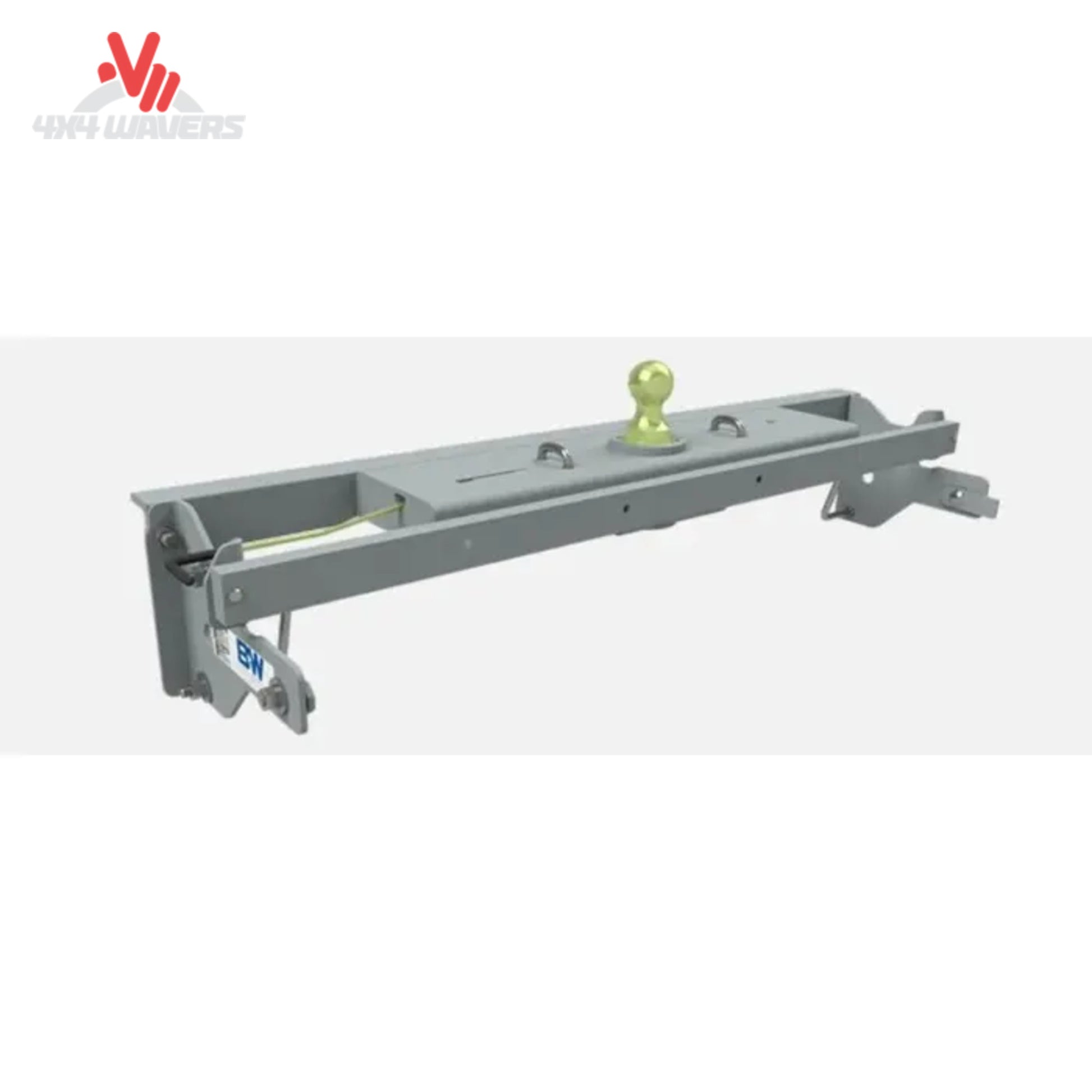

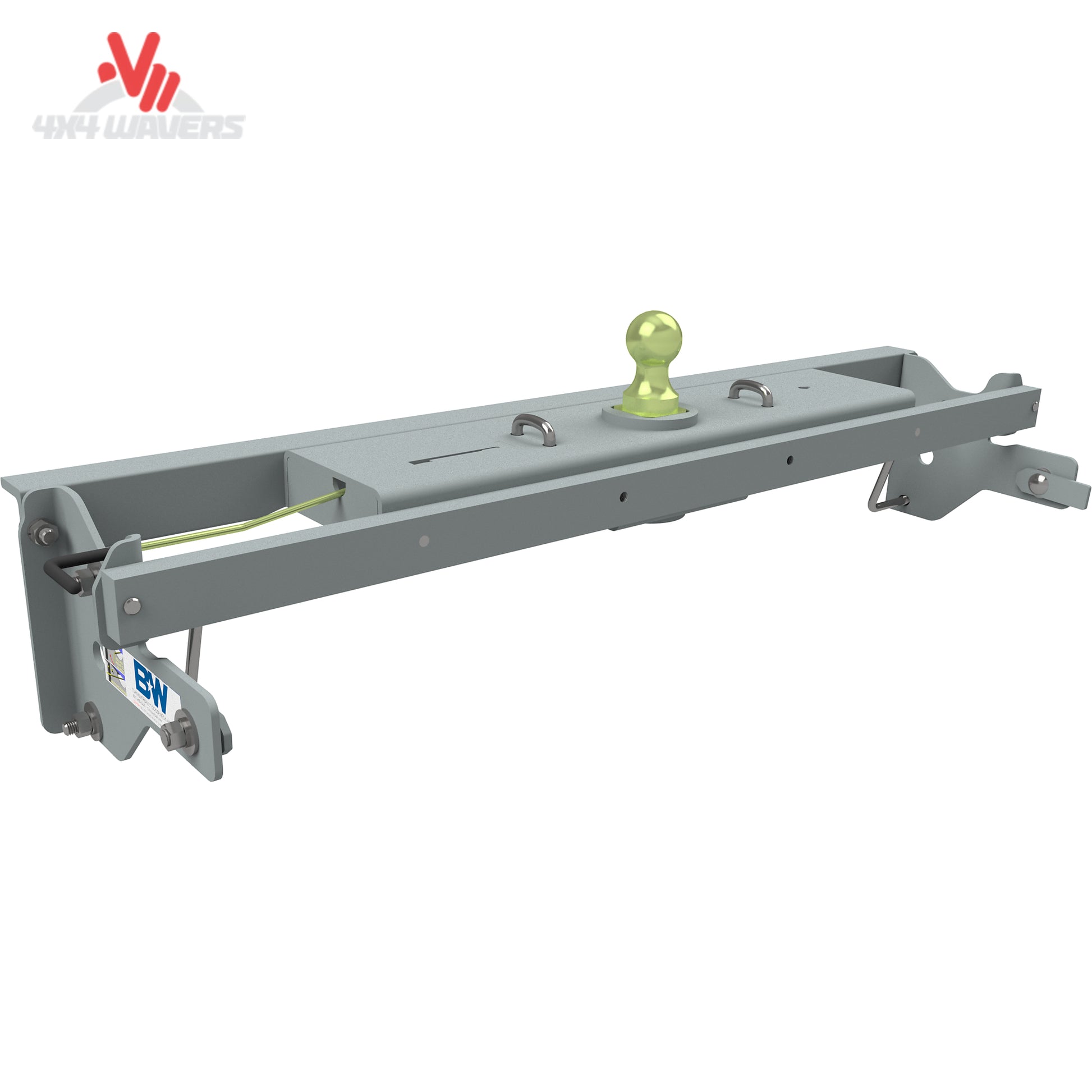

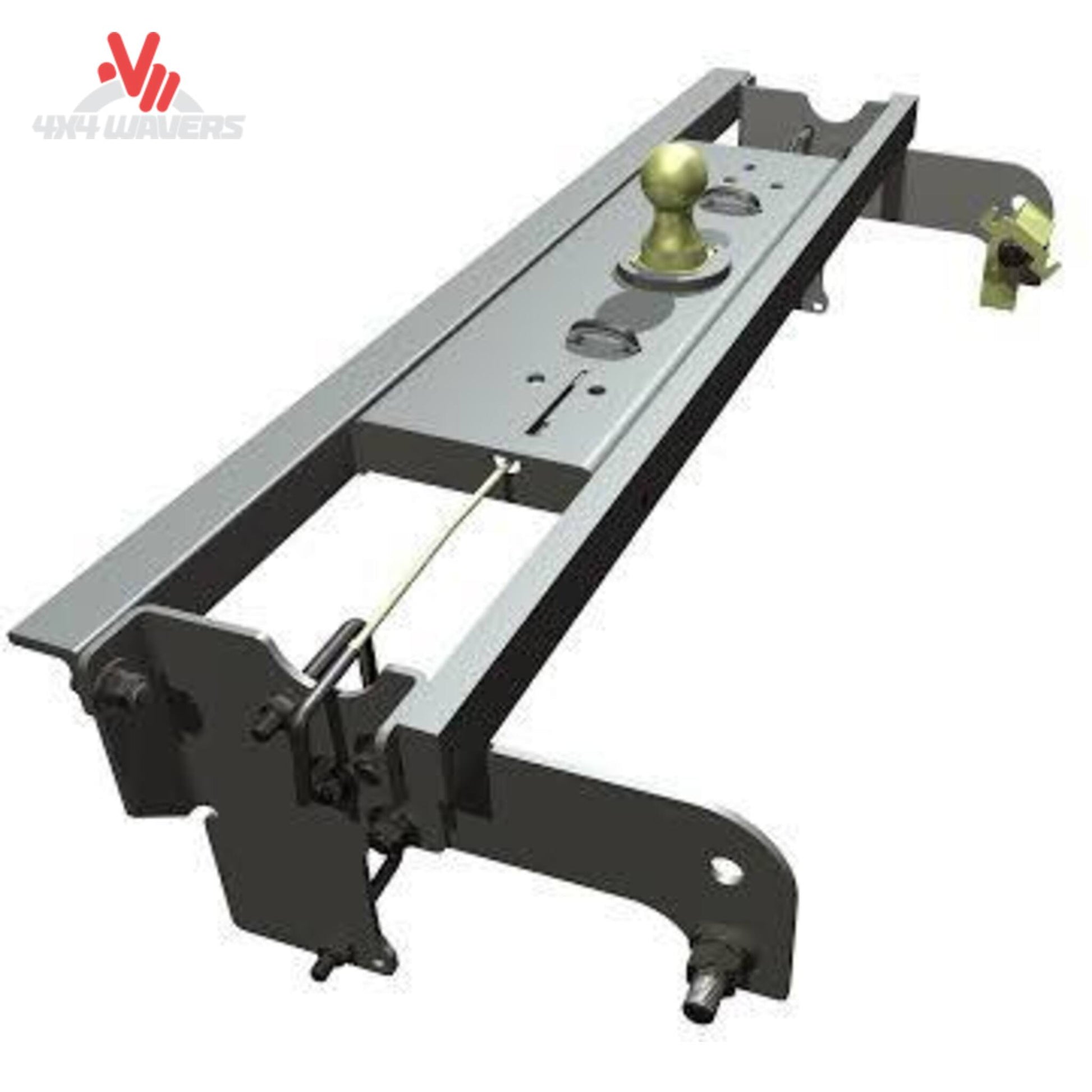

B&W Turnoverball Under-Bed Gooseneck Hitch for Chevy Silverado & GMC Sierra 1500

The B&W Turnoverball Gooseneck Hitch provides heavy-duty towing performance and seamless truck bed versatility for half-ton GM pickup owners. Engineered to mount beneath the truck bed using existing chassis holes, this system allows you to tow heavy gooseneck trailers and flip the ball upside down in seconds for a completely flat bed floor.

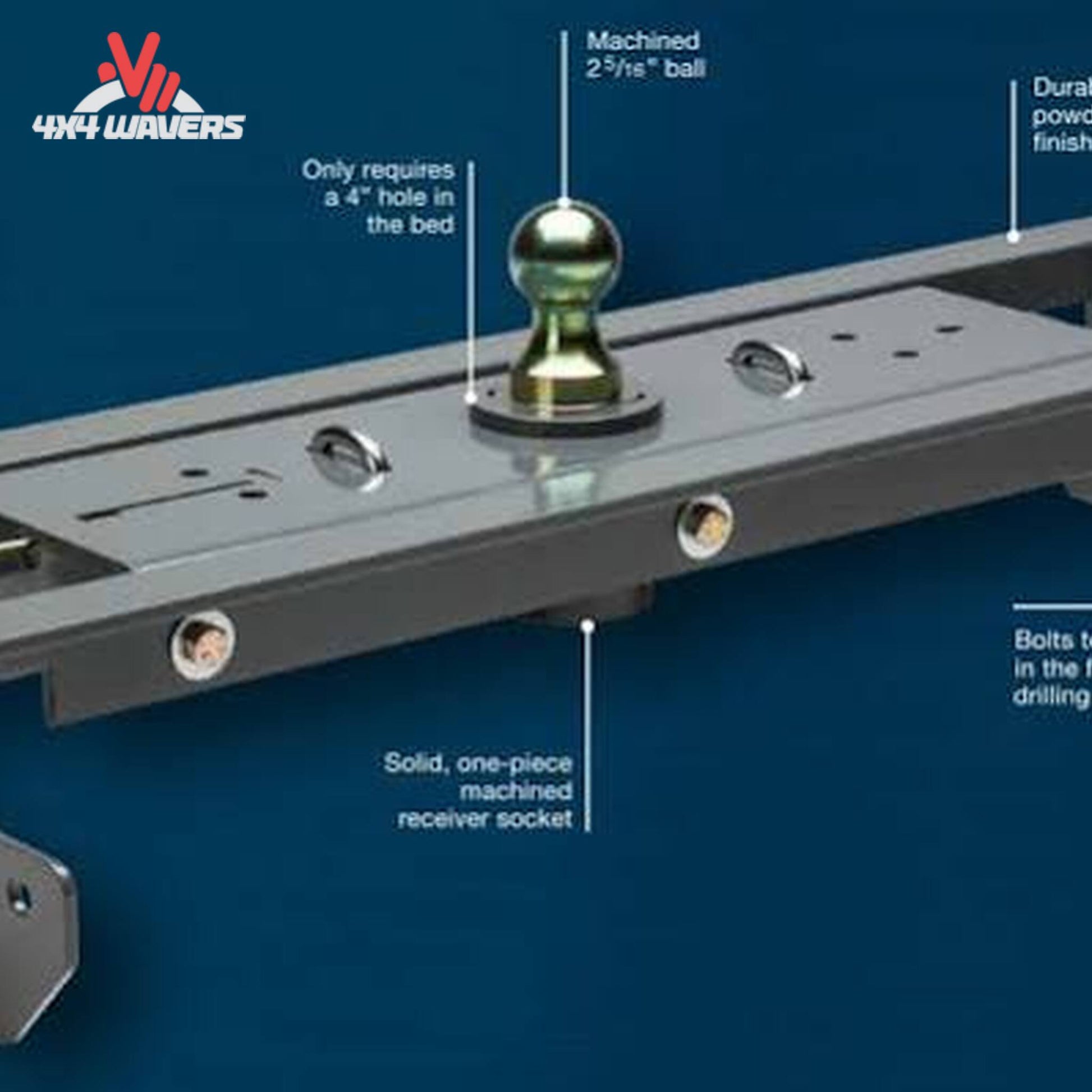

According to structural load testing standards established by SEMA towing research groups, custom-fit under-bed hitches that bolt directly to the vehicle frame optimize weight distribution and reduce stress on the truck chassis during heavy haulage. "The solid one-piece machined receiver socket and powder-coated steel side plates ensure structural integrity and prevent rust seizure even through extreme northern winter road conditions," notes towing equipment specialist Marcus Vance.

Technical Specifications

Feature Specification Details
Hitch Style Under-bed Turnoverball Gooseneck Hitch
Gross Towing Weight (GTW) 30,000 lbs (Limited to vehicle manufacturer GTWR)
Vertical Tow Weight (VTW) 7,500 lbs tongue weight capacity
Ball Size 2-5/16 inch solid machined hitch ball included
Locking Pin 5/8 inch spring-loaded solid steel latch pin
Bed Modification Requires only a single 4-inch hole in the bed floor
Finish & Warranty Powder-coat finish / Limited Lifetime Manufacturer Warranty

Vehicle Fitment

  • Make: Chevrolet / GMC
  • Model: Silverado 1500 / Sierra 1500
  • Bed Lengths: 5'10" (Short Bed) & 6'7" (Standard Bed)
  • Years: 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
  • Fitment Exclusions: Does NOT fit 2019 Silverado/Sierra 1500 LD / Limited legacy models. Does NOT fit models equipped with CarbonPro composite beds.

Installation Notes

  • Bolts directly to existing holes in the truck frame rails with zero welding required.
  • Requires cutting a clean 4-inch hole in the bed floor for the ball socket and drilling 4 small holes for safety chain loops.
  • Includes custom mounting crossmembers, center section, latch handle, 2-5/16" ball, and hardware.

Frequently Asked Questions

Can I store the ball in the socket when I need a flat truck bed?

Yes. Simply pull the spring-loaded latch handle in the wheel well, turn the ball upside down, and drop it into the receiver socket to regain full access to your bed floor.

Does installing this hitch require removing the truck bed?

No. The crossmembers and center section are designed to be installed from beneath the truck bed without lifting or removing the bed assembly.

SKU: GNRK1019
