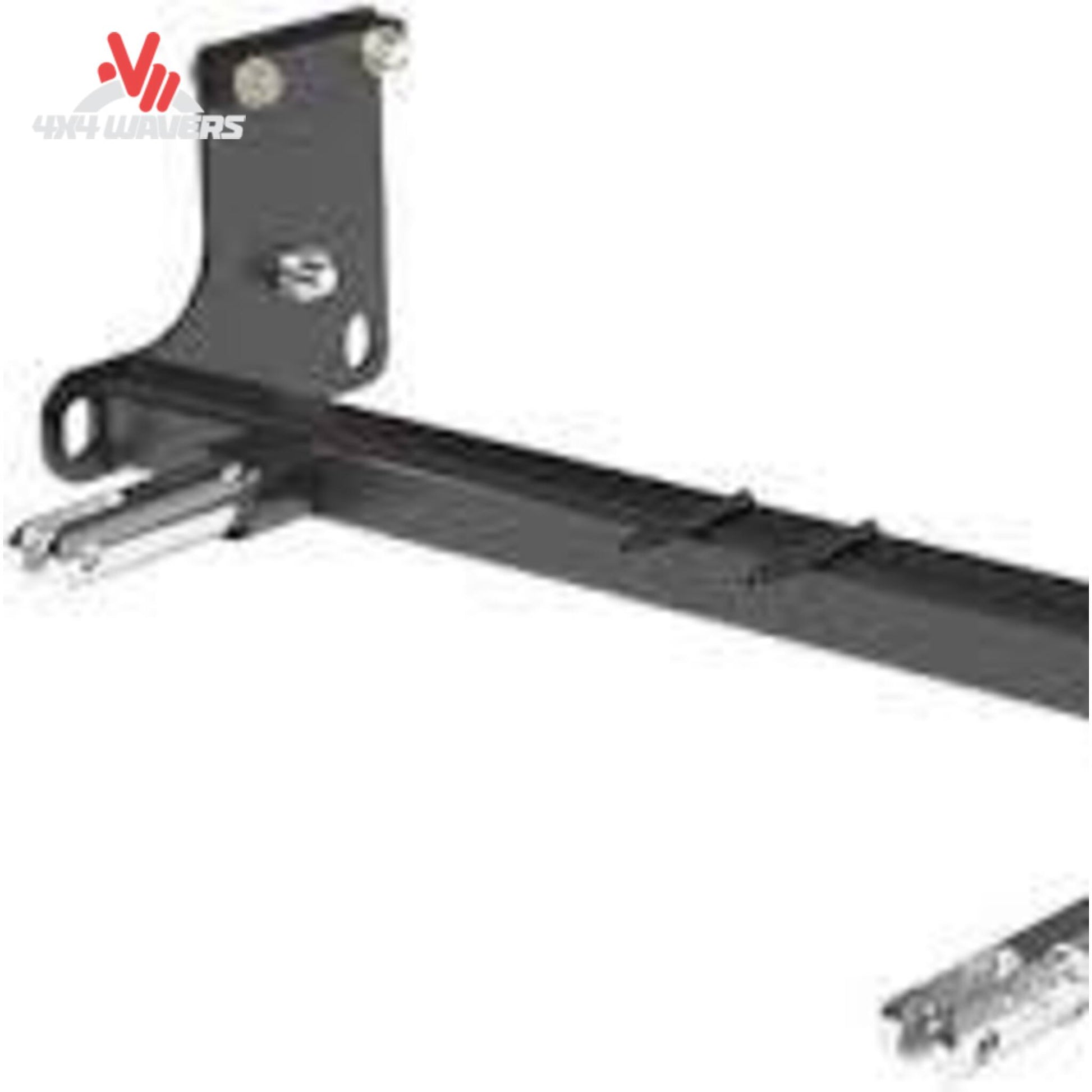

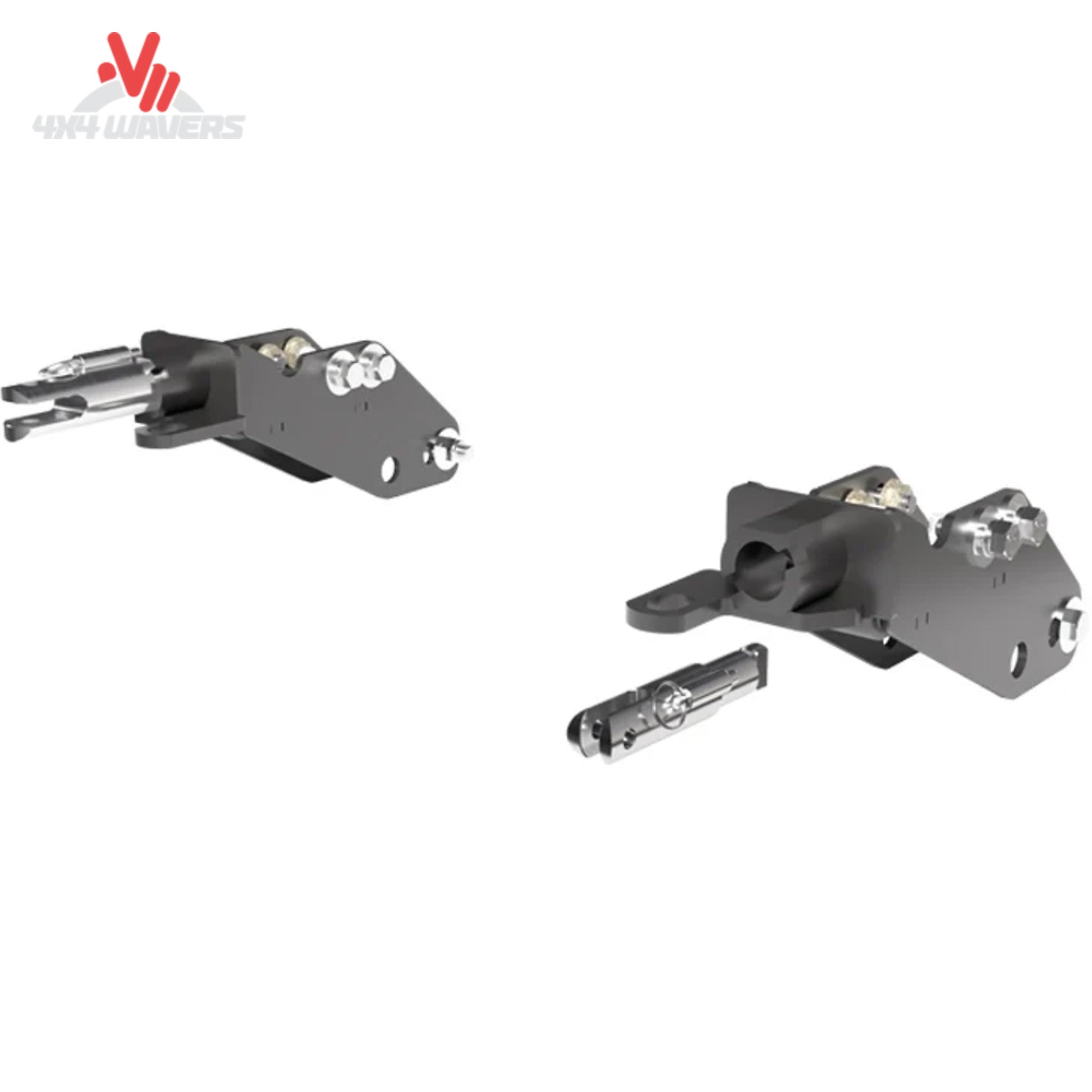

• Blue Ox BX1754 baseplate bracket assembly with removable attachment tabs SKU BX1754

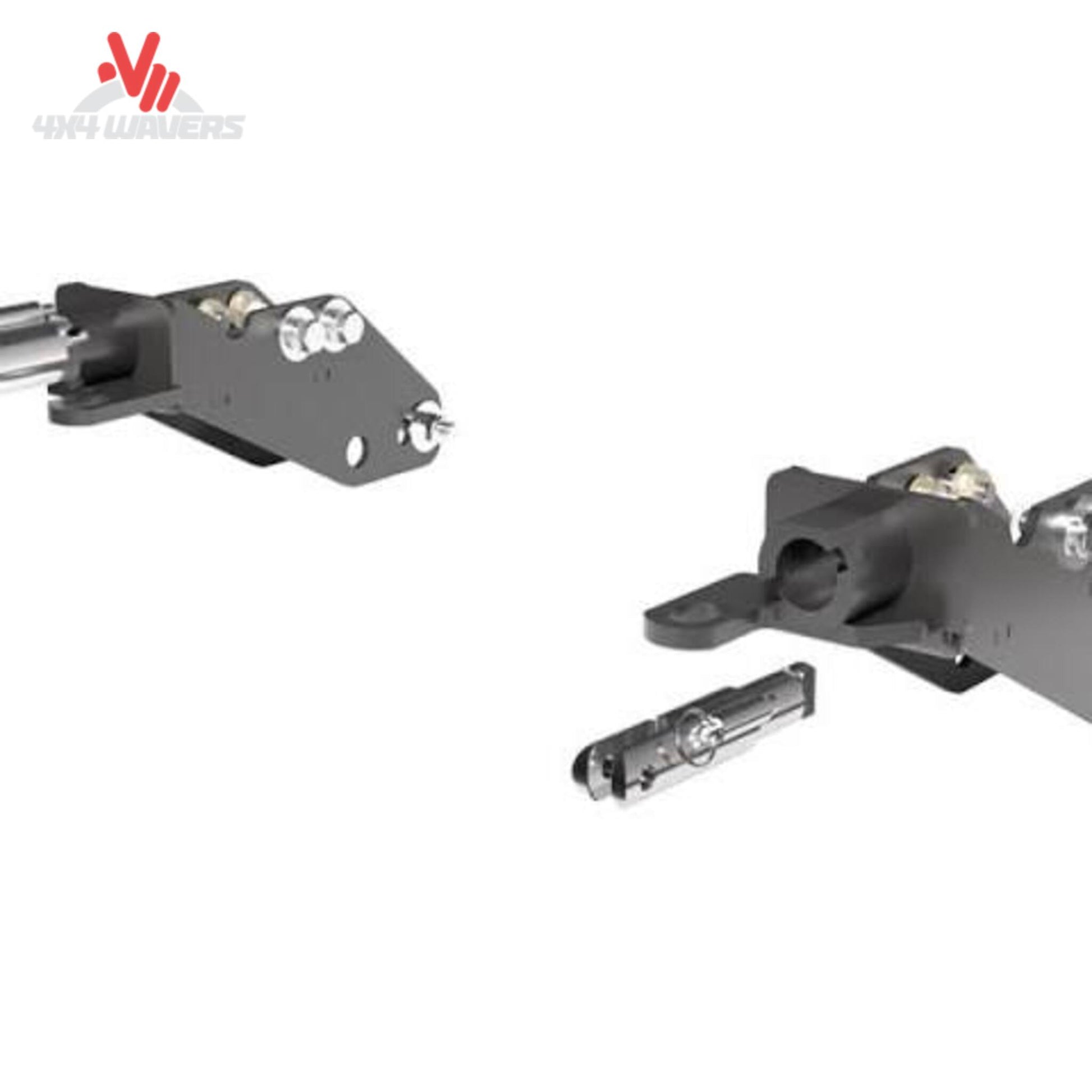

  • Blue Ox custom tow bar baseplate 22-26 Chevrolet Silverado 1500 SKU BX1754

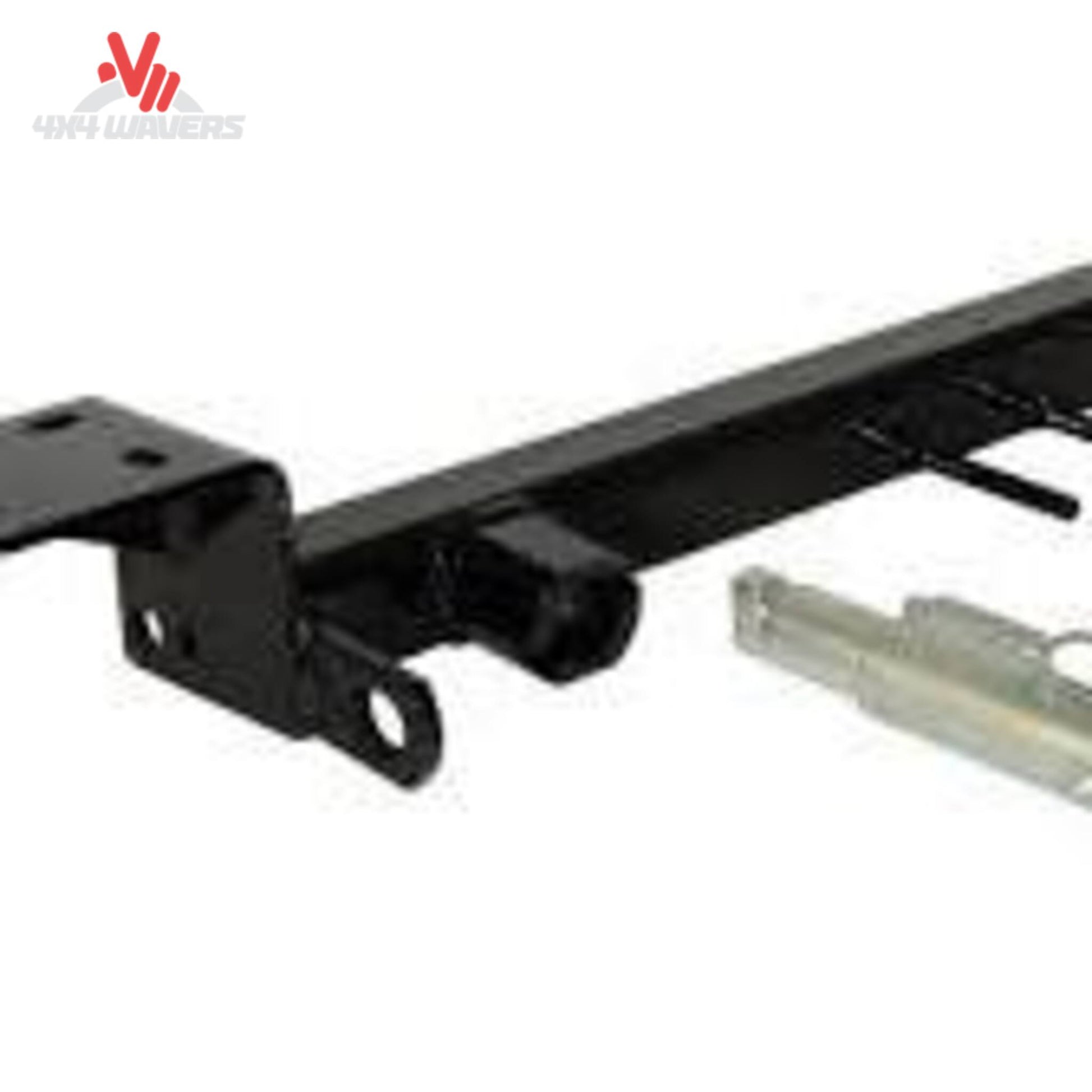

  • Blue Ox custom tow bar baseplate 22-26 Chevrolet Silverado 1500 SKU BX1754
  • Blue Ox BX1754 baseplate bracket assembly with removable attachment tabs SKU BX1754

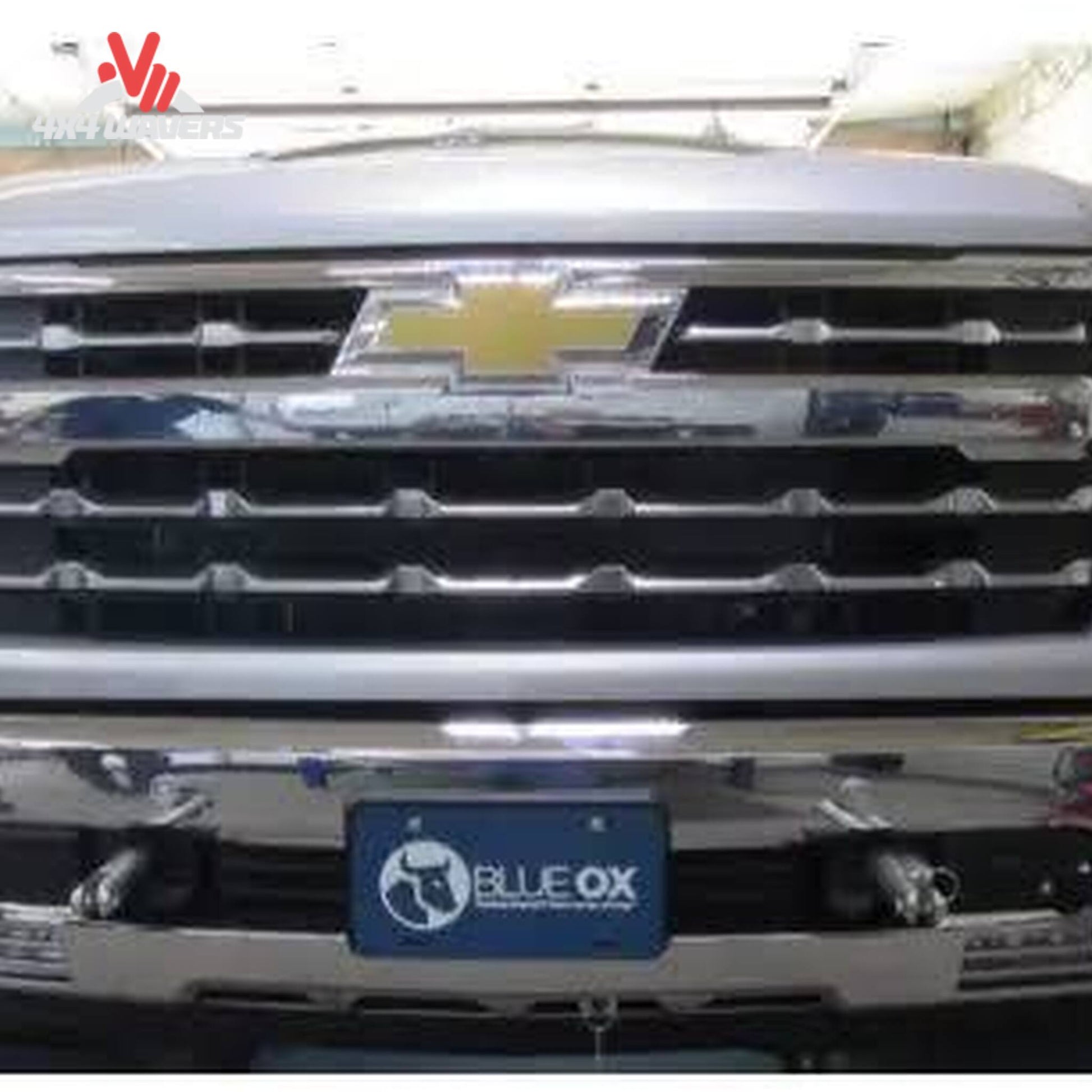

  • Removable attachment tabs protruding cleanly through front bumper mesh on Silverado 1500 SKU BX1754
  • Installed Blue Ox BX1754 baseplate on front bumper of Chevy Silverado 1500 SKU BX1754
1 6

Blue Ox

Blue Ox Tow Bar Baseplate | 22-26 Silverado 1500 (Excl. ZR2)

Blue Ox Tow Bar Baseplate | 22-26 Silverado 1500 (Excl. ZR2)

🚚 Free Shipping Across US & Canada For Orders +$200 📦 Customs Duties Included — No Surprises🇨🇦 Ships from Canada🛡️ 1-Year Warranty↺ Easy Returns 👥 Ships in 1-3 days🍁 North America Based Support
$849.00 CAD
$999.00 CAD $849.00 CAD
Sale Coming soon
Shipping calculated at checkout.

Blue Ox Custom Tow Bar Baseplate for 2022-2026 Chevrolet Silverado 1500

The Blue Ox Custom Tow Bar Baseplate delivers a hidden, high-strength flat-towing foundation for towing late-model Chevrolet Silverado 1500 pickup trucks behind motorhomes. Custom-engineered to anchor directly to the vehicle's chassis frame, this baseplate system distributes towing loads and torsional stress evenly across the front unibody and frame horns while preserving ground clearance.

According to structural flat-towing assessments conducted by SEMA vehicle engineering groups, custom frame-mounted baseplates channel pulling forces directly into the truck's structural frame rather than front fascia or suspension components. "The durable, corrosion-resistant black powder coat finish and removable attachment tabs ensure the baseplate blends discreetly into the front bumper assembly when the truck is not being towed," notes towing equipment specialist Marcus Vance.

Technical Specifications

Feature Specification Details
Baseplate Type Custom-fit tow bar baseplate with removable attachment tabs
Material Construction Heavy-duty solid steel plate and tubular steel construction
Finish Type Corrosion-resistant black powder coat finish
Safety Features Includes heavy-duty steel safety cables and grade 8 mounting hardware
Tow Bar Compatibility Compatible with Blue Ox motorhome-mounted tow bars and adapters
Fascia Modifications Requires minor fascia trimming during installation
Warranty 3-Year Limited Manufacturer Warranty

Vehicle Fitment

  • Make: Chevrolet
  • Model: Silverado 1500
  • Years: 2022, 2023, 2024, 2025, 2026
  • Trims: Custom, Custom Trail Boss, LT, LT Trail Boss, RST, LTZ, High Country
  • Fitment Exclusions: Does NOT fit Silverado 1500 ZR2 models (requires SKU BX1757). Does NOT fit GMC Sierra 1500 models.

Installation Notes

  • Bolts directly to existing frame locations; includes all required mounting hardware, safety cables, and step-by-step instructions.
  • Requires temporary front bumper/fascia removal and minor trimming of plastic bumper shrouds.
  • Features removable tabs that easily twist out when disconnected from the RV tow bar for a clean, factory-like appearance.

Frequently Asked Questions

Do I need to remove the front bumper permanently to install this baseplate?

No. The front bumper and fascia are temporarily removed during installation for bracket mounting and reinstalled over the baseplate assembly once secured.

Is this baseplate compatible with non-Blue Ox tow bars?

Yes. While designed specifically for Blue Ox tow bars, adapters are available separately to connect this baseplate to Roadmaster and Demco tow bars.

SKU: BX1754
