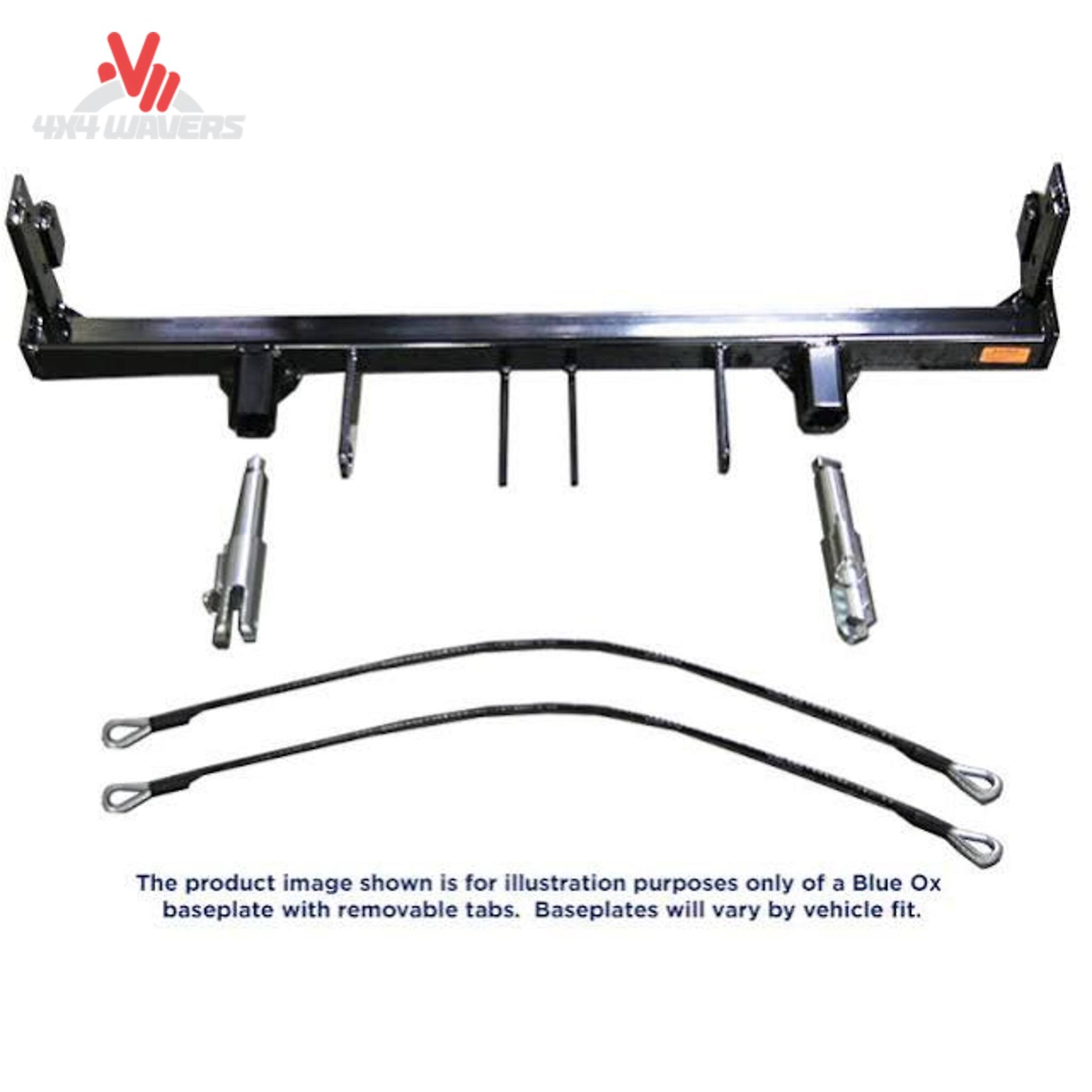

• Blue Ox BX1731 baseplate bracket assembly with removable attachment tabs SKU BX1731

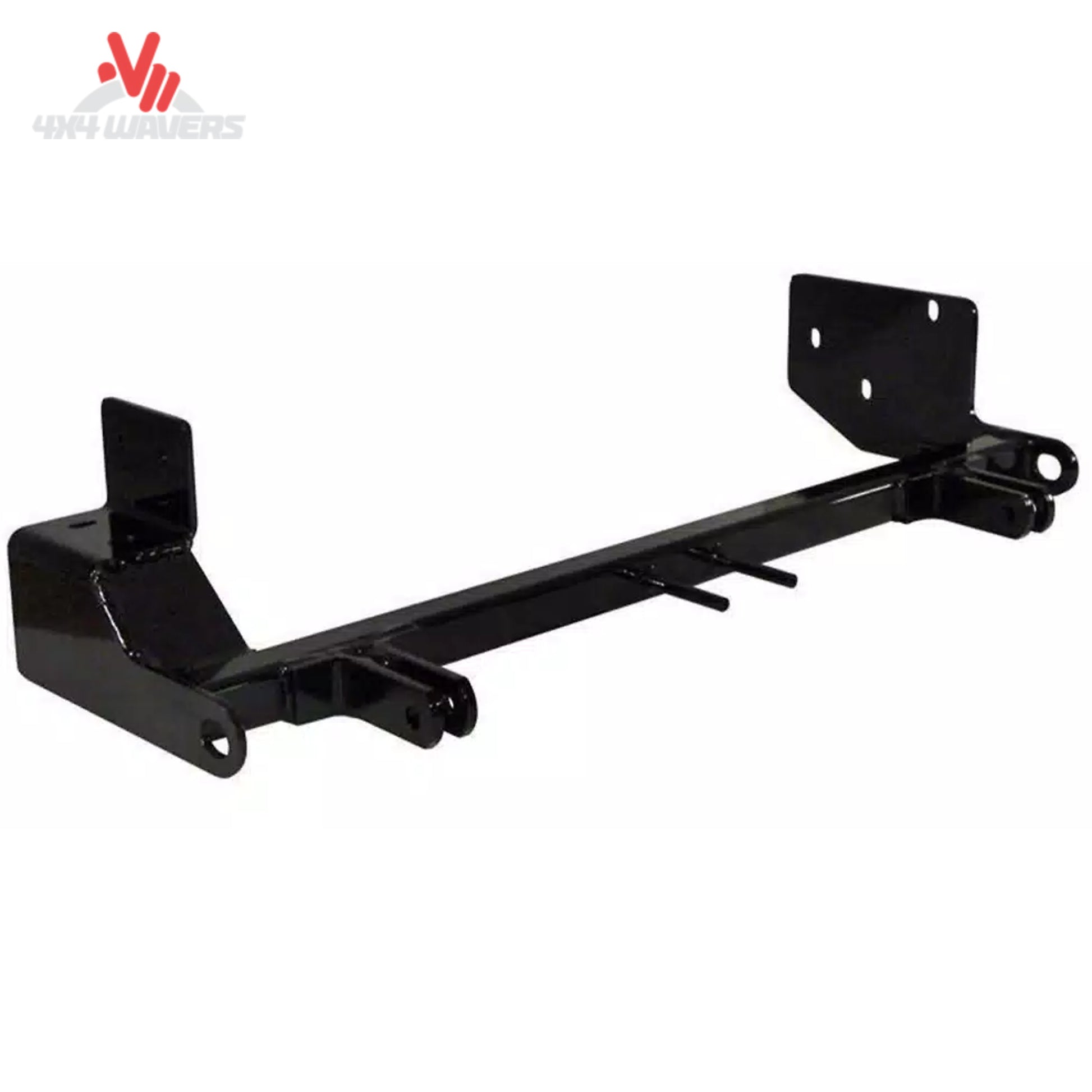

  • Blue Ox custom tow bar baseplate 16-18 GM 1500 16-20 Suburban Tahoe Z71 SKU BX1731

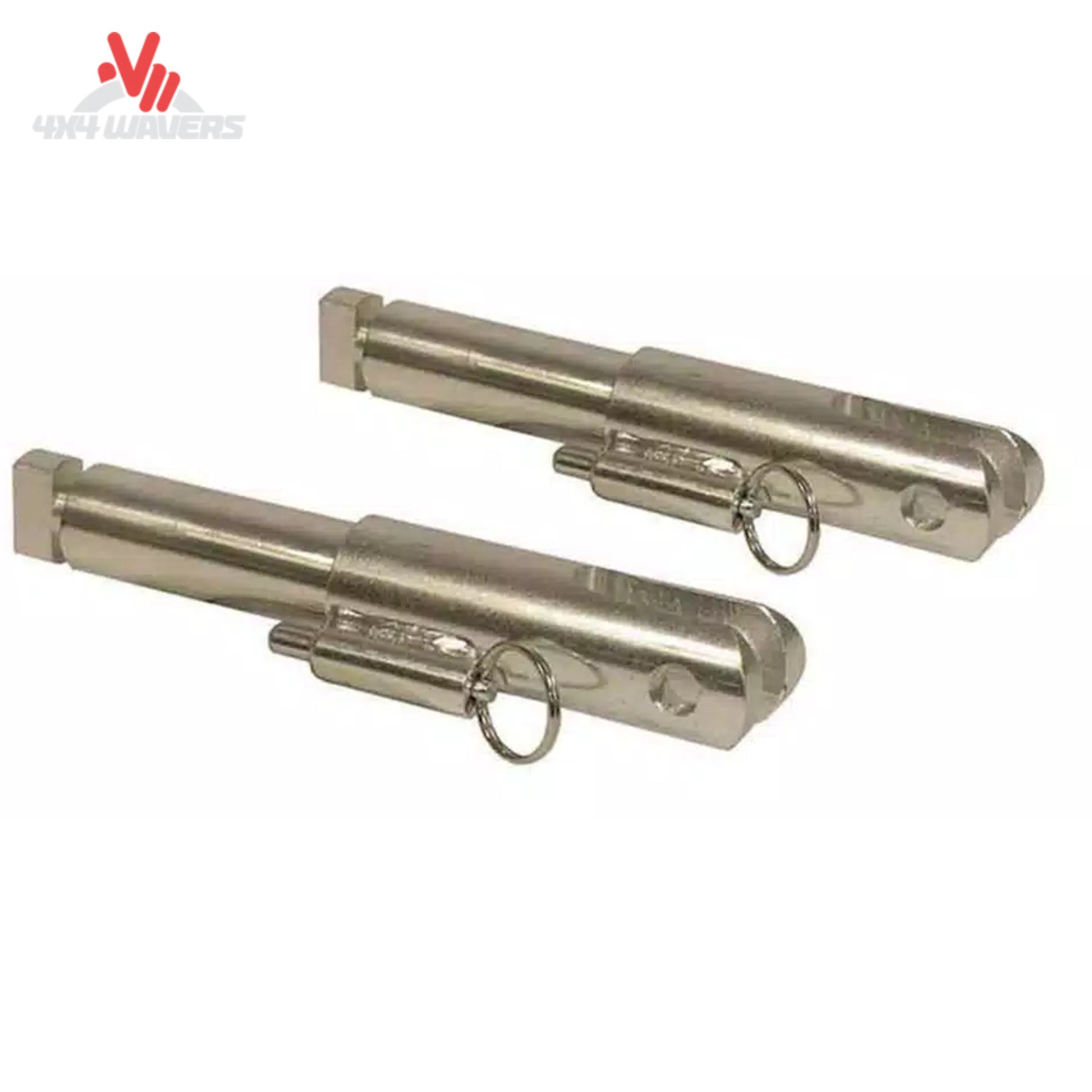

  • Twist lock removable tab mechanism for clean un-towed appearance on BX1731 SKU BX1731

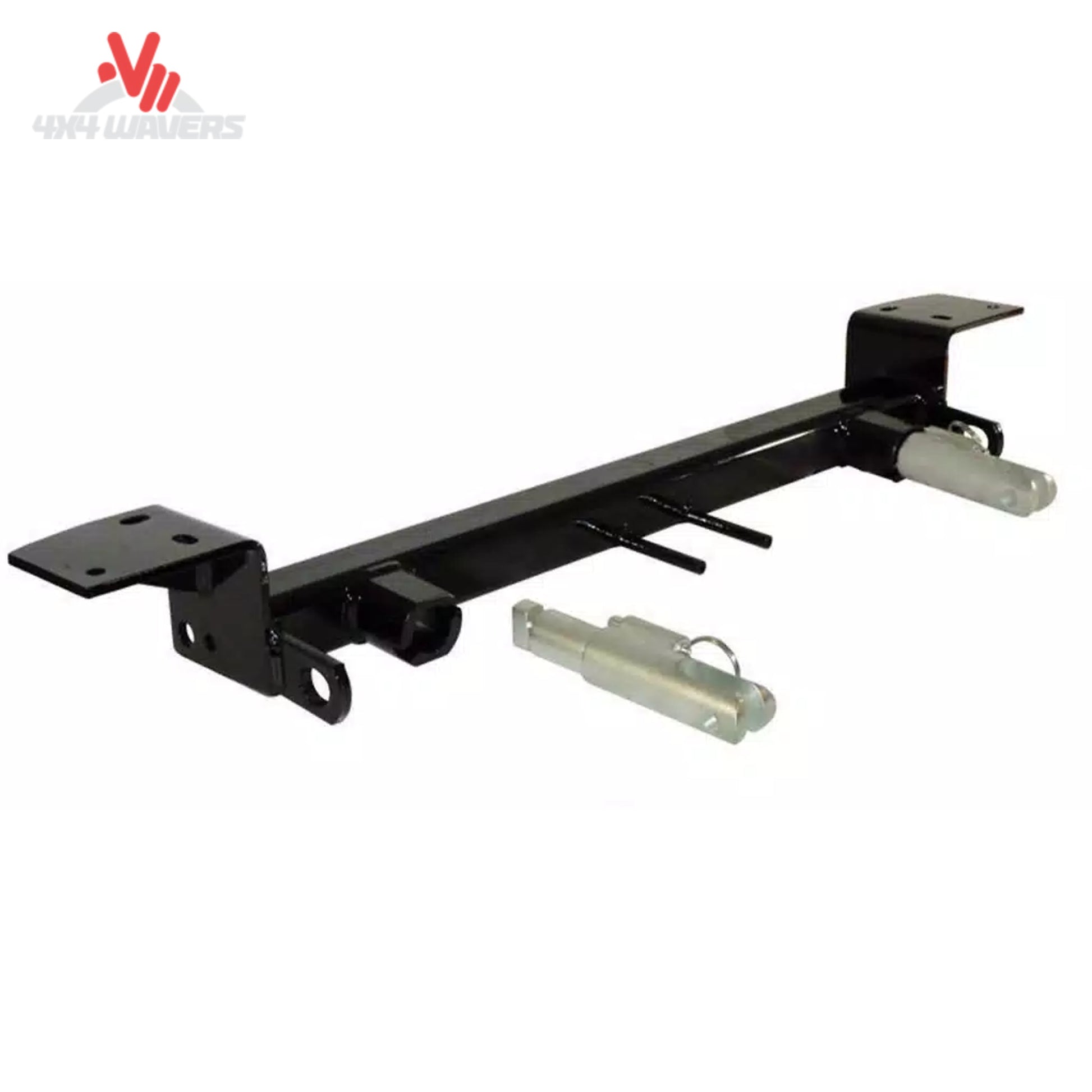

  • Blue Ox BX1731 baseplate bracket assembly with removable attachment tabs SKU BX1731

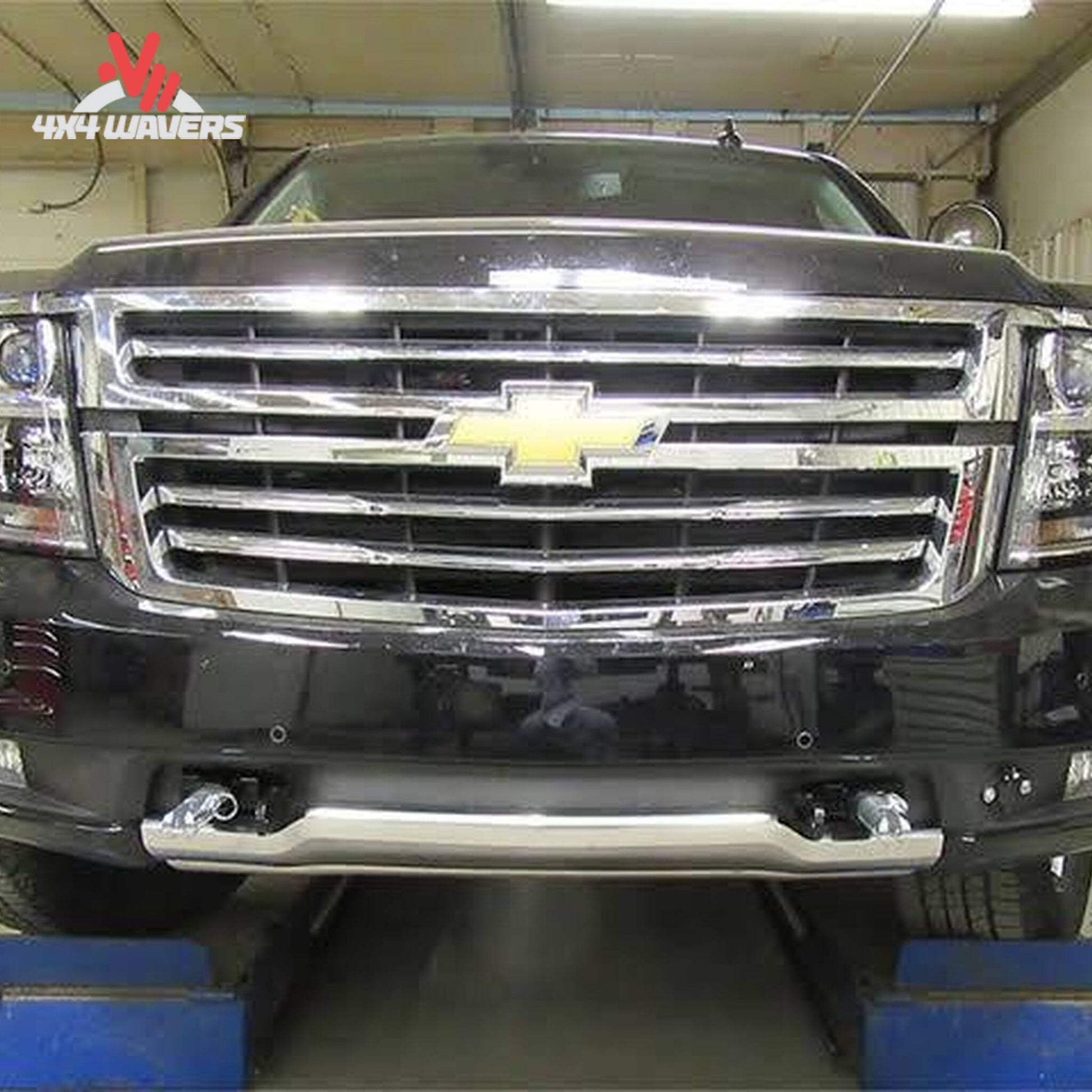

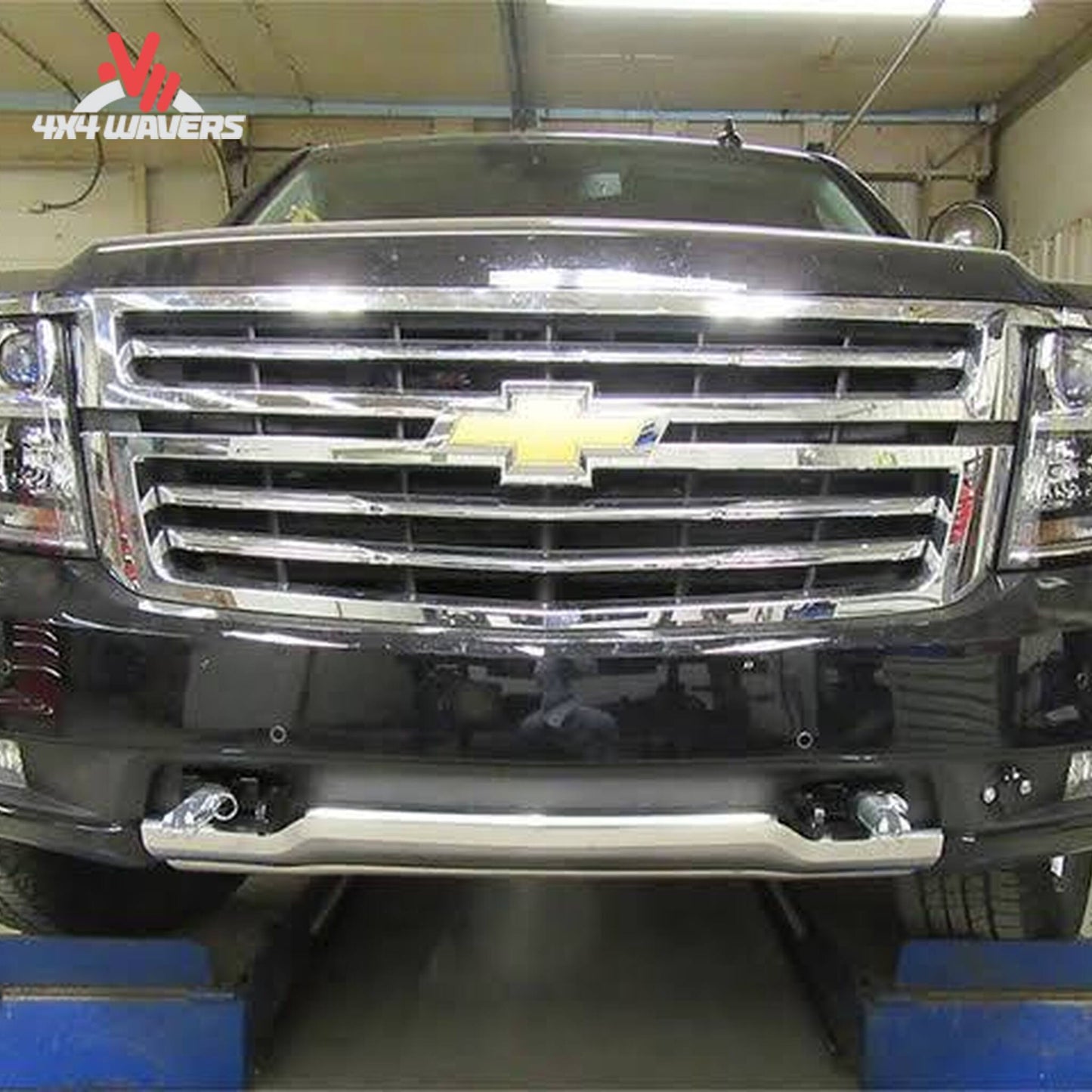

  • Removable attachment tabs protruding cleanly through front bumper mesh on Tahoe Z71 SKU BX1731

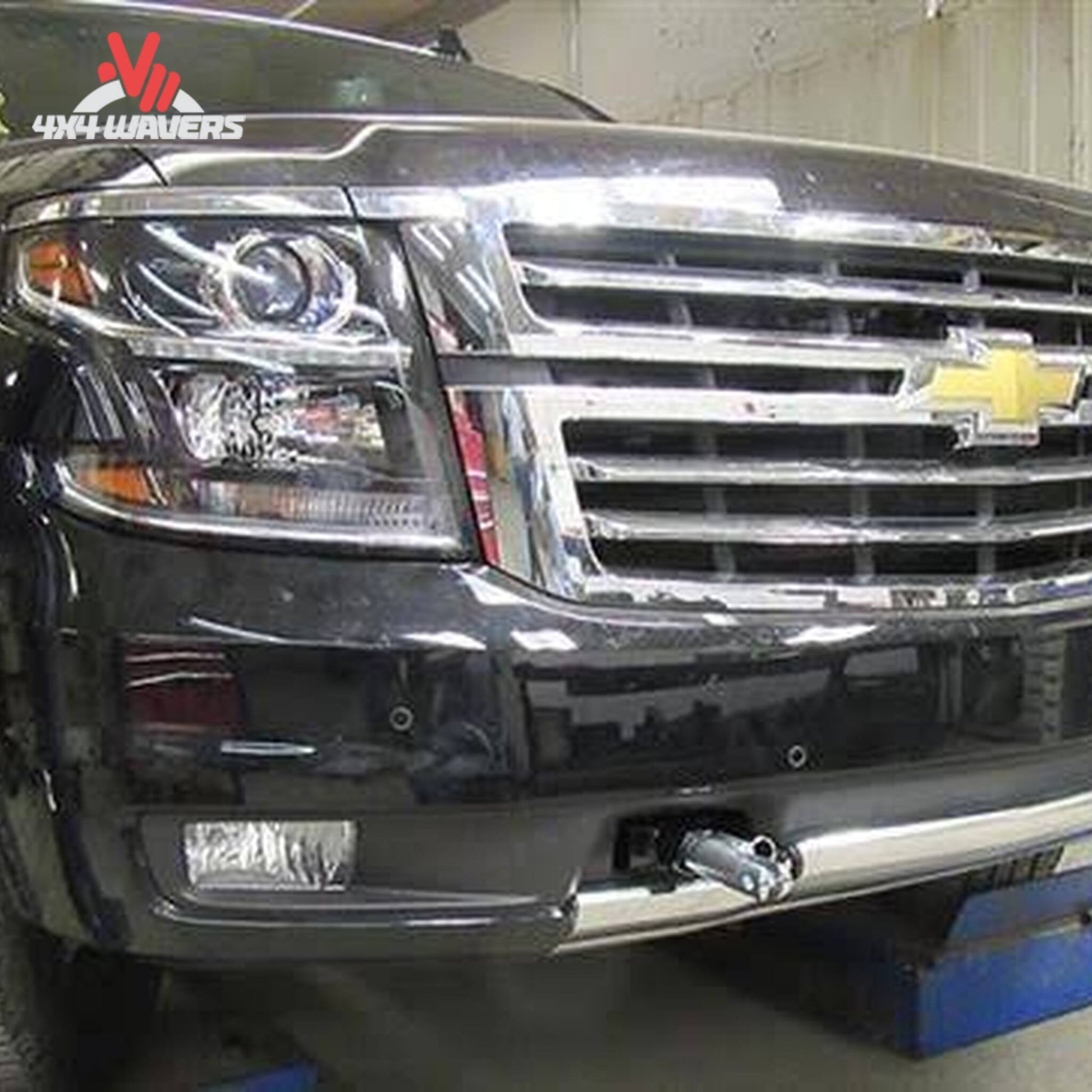

  • Installed Blue Ox BX1731 baseplate on front bumper of Chevy Tahoe Z71 SKU BX1731
1 6

Blue Ox

Blue Ox Tow Bar Baseplate | 16-18 GM 1500 & 16-20 SUV Z71

Blue Ox Tow Bar Baseplate | 16-18 GM 1500 & 16-20 SUV Z71

🚚 Free Shipping Across US & Canada For Orders +$200 📦 Customs Duties Included — No Surprises🇨🇦 Ships from Canada🛡️ 1-Year Warranty↺ Easy Returns 👥 Ships in 1-3 days🍁 North America Based Support
$719.00 CAD
$999.00 CAD $719.00 CAD
Sale Coming soon
Shipping calculated at checkout.

Blue Ox Custom Tow Bar Baseplate for 2016-2018 GM 1500 & 2016-2020 Tahoe/Suburban Z71

The Blue Ox Custom Tow Bar Baseplate delivers a hidden, high-strength flat-towing foundation for towing GM 1500 trucks and full-size Z71 SUVs behind motorhomes. Custom-engineered to anchor directly to the vehicle chassis frame, this baseplate system absorbs towing forces and torsional loads evenly across the front unibody and frame horns while preserving full ground clearance.

According to structural flat-towing assessments conducted by SEMA vehicle engineering groups, custom frame-mounted baseplates channel pulling forces directly into the truck's structural frame rather than front fascia or suspension components. "The durable, corrosion-resistant black powder coat finish and removable attachment tabs ensure the baseplate blends discreetly into the front bumper assembly when the vehicle is not being flat-towed," notes towing equipment specialist Marcus Vance.

Technical Specifications

Feature Specification Details
Baseplate Type Custom-fit tow bar baseplate with removable attachment tabs
Material Construction Heavy-duty solid steel plate and tubular steel construction
Finish Type Corrosion-resistant black powder coat finish
Safety Features Includes heavy-duty steel safety cables and grade 8 mounting hardware
Tow Bar Compatibility Compatible with Blue Ox motorhome-mounted tow bars and adapters
Fascia Modifications Requires minor fascia trimming during installation
Warranty 3-Year Limited Manufacturer Warranty

Vehicle Fitment

  • Make: Chevrolet / GMC
  • Truck Models: Silverado 1500 / Sierra 1500 (2016, 2017, 2018)
  • Legacy Truck Models: Silverado 1500 LD / Sierra 1500 Limited (2019)
  • SUV Models: Chevrolet Suburban Z71 / Tahoe Z71 (2016, 2017, 2018, 2019, 2020)
  • Feature Fitment Exclusions: Does NOT fit models equipped with Adaptive Cruise Control (ACC). Does NOT fit non-Z71 SUV trim models (requires SKU BX1730).

Installation Notes

  • Bolts directly to existing frame locations; includes all required mounting hardware, safety cables, and step-by-step instructions.
  • Requires temporary front bumper/fascia removal and minor trimming of plastic bumper shrouds.
  • Features removable tabs that easily twist out when disconnected from the RV tow bar for a clean, factory-like appearance.

Frequently Asked Questions

Do I need to remove the front bumper permanently to install this baseplate?

No. The front bumper and fascia are temporarily removed during installation for bracket mounting access and reinstalled over the baseplate assembly once secured.

Is this baseplate compatible with non-Blue Ox tow bars?

Yes. While designed specifically for Blue Ox tow bars, adapters are available separately to connect this baseplate to Roadmaster and Demco tow bars.

SKU: BX1731
