BDS Suspension
BDS FOX 2.0 Performance Series Rear Shock | Multi-Fit
BDS FOX 2.0 Performance Series Rear Shock | Multi-Fit
Couldn't load pickup availability

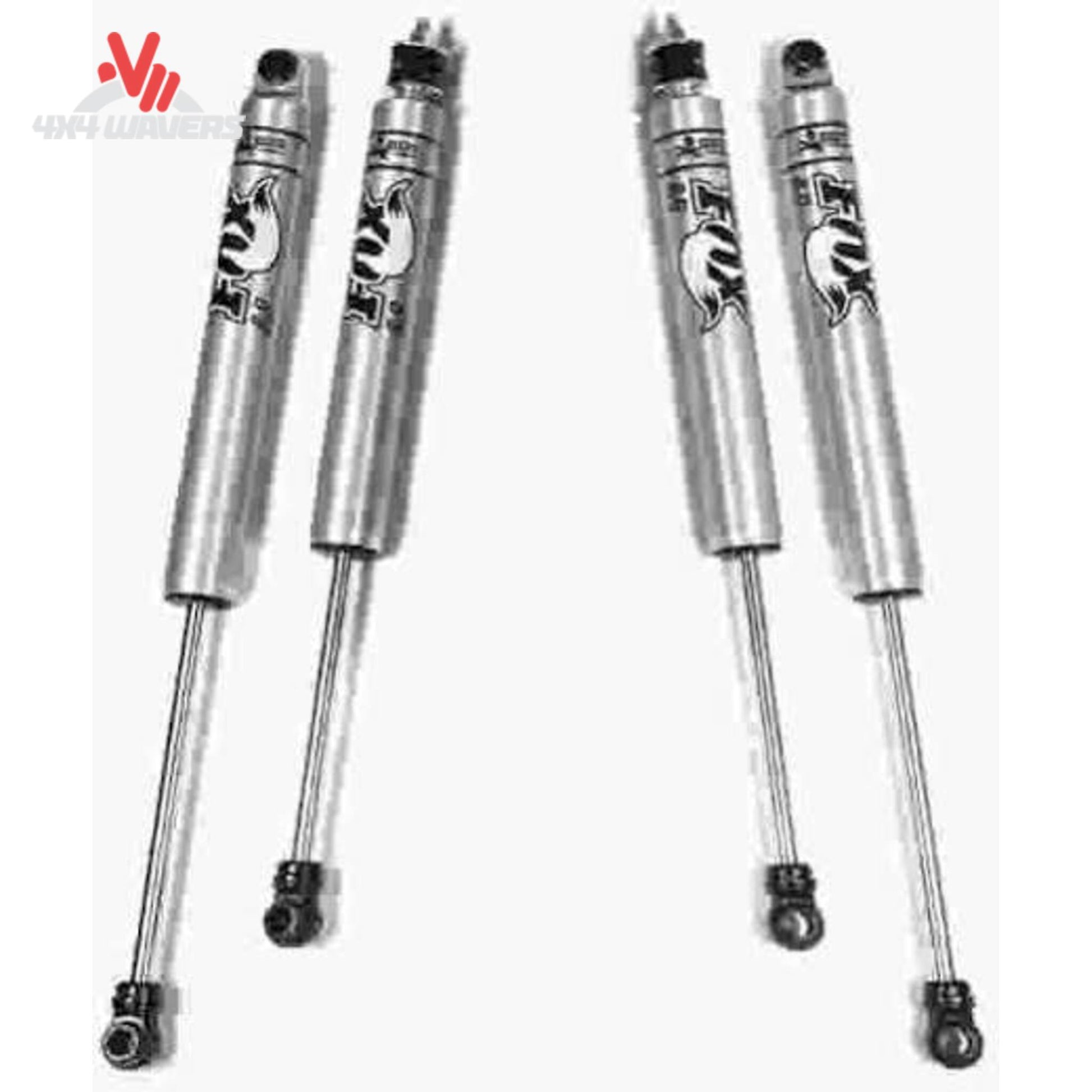

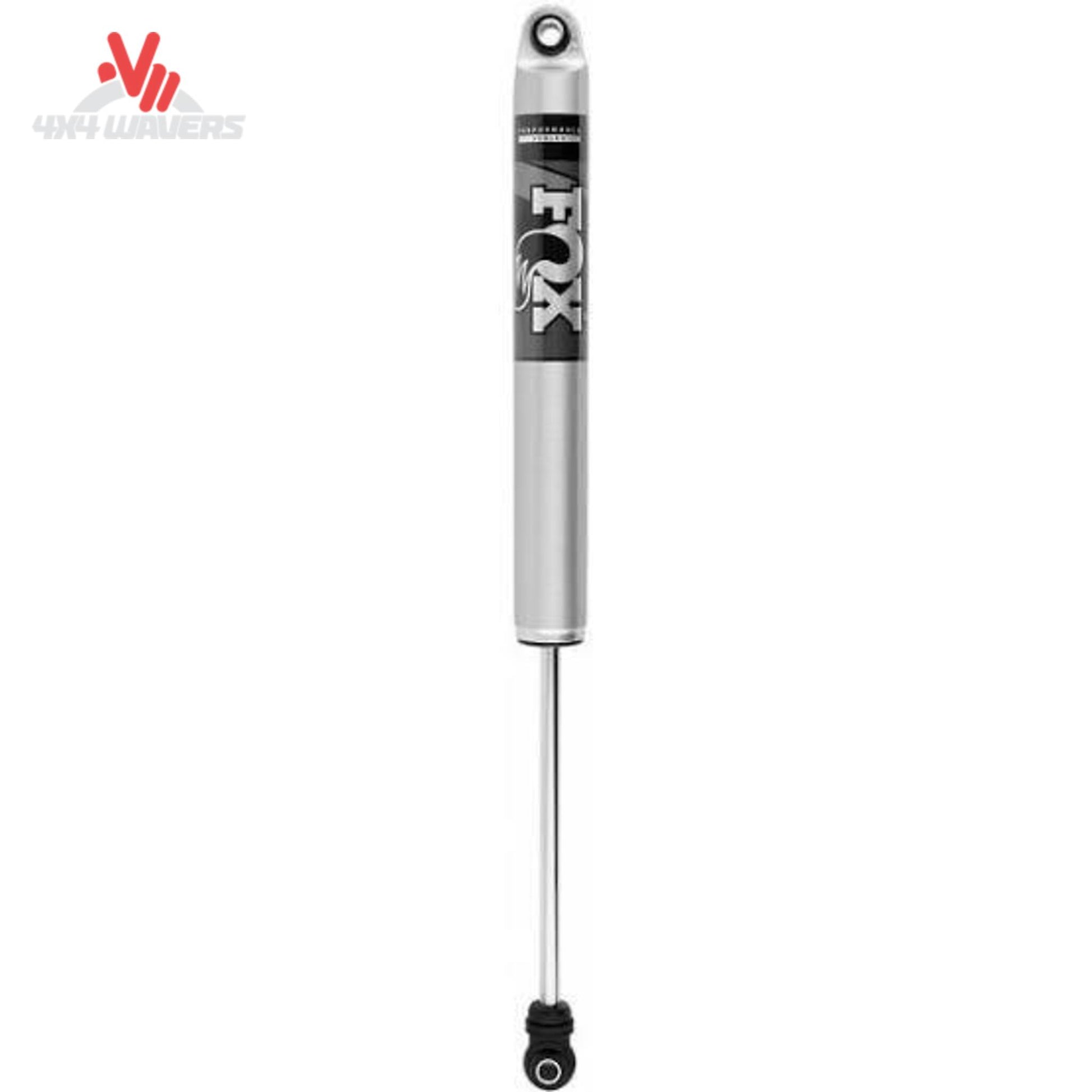

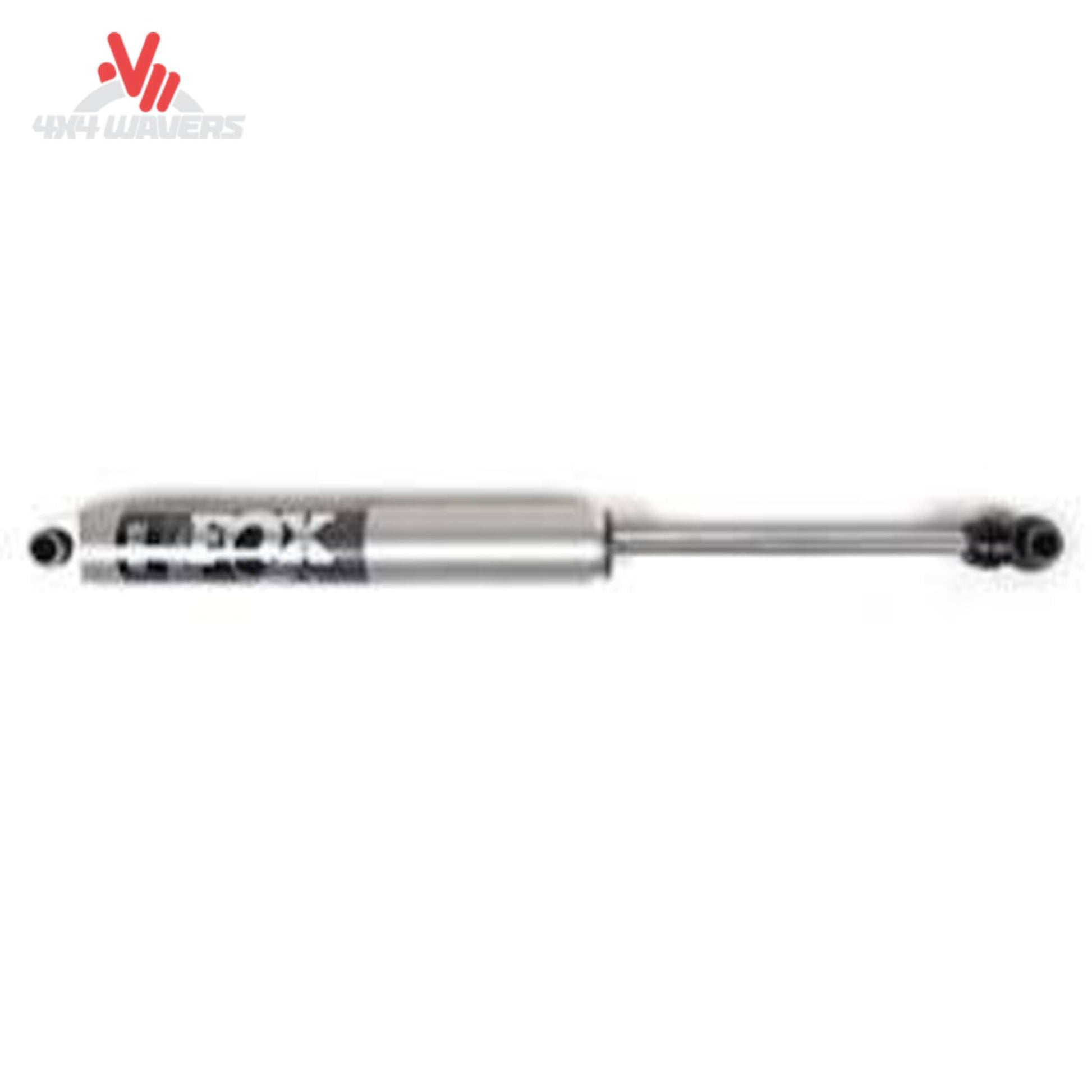

BDS Suspension FOX 2.0 Performance Series IFP Rear Shock Absorber
The BDS Suspension FOX 2.0 Performance Series IFP Rear Shock Absorber delivers race-proven hydraulic dampening, superior heat dissipation, and fade-free off-road control across multiple truck suspension configurations. Built with a 2-inch impact-extruded 6061-T6 aluminum body, this monotube shock dissipates heat up to four times faster than conventional twin-tube steel shocks.
The Internal Floating Piston (IFP) mono-tube design separates the high-pressure nitrogen gas charge from the shock oil, completely eliminating fluid aeration and performance fade during harsh, repetitive trail cycles. Dynamic handling assessments by SEMA suspension engineers demonstrate that application-specific custom valving optimizes transient rebound control while maintaining supple low-speed street comfort. "The 5/8-inch hard chrome-plated steel shaft paired with clear anodized corrosion protection resists pitting, rust, and salt brine damage throughout harsh northern winters," notes suspension specialist Marcus Vance.
Technical Specifications
| Feature Specification | Details |
|---|---|
| Shock Series | FOX 2.0 Performance Series IFP (Internal Floating Piston) |

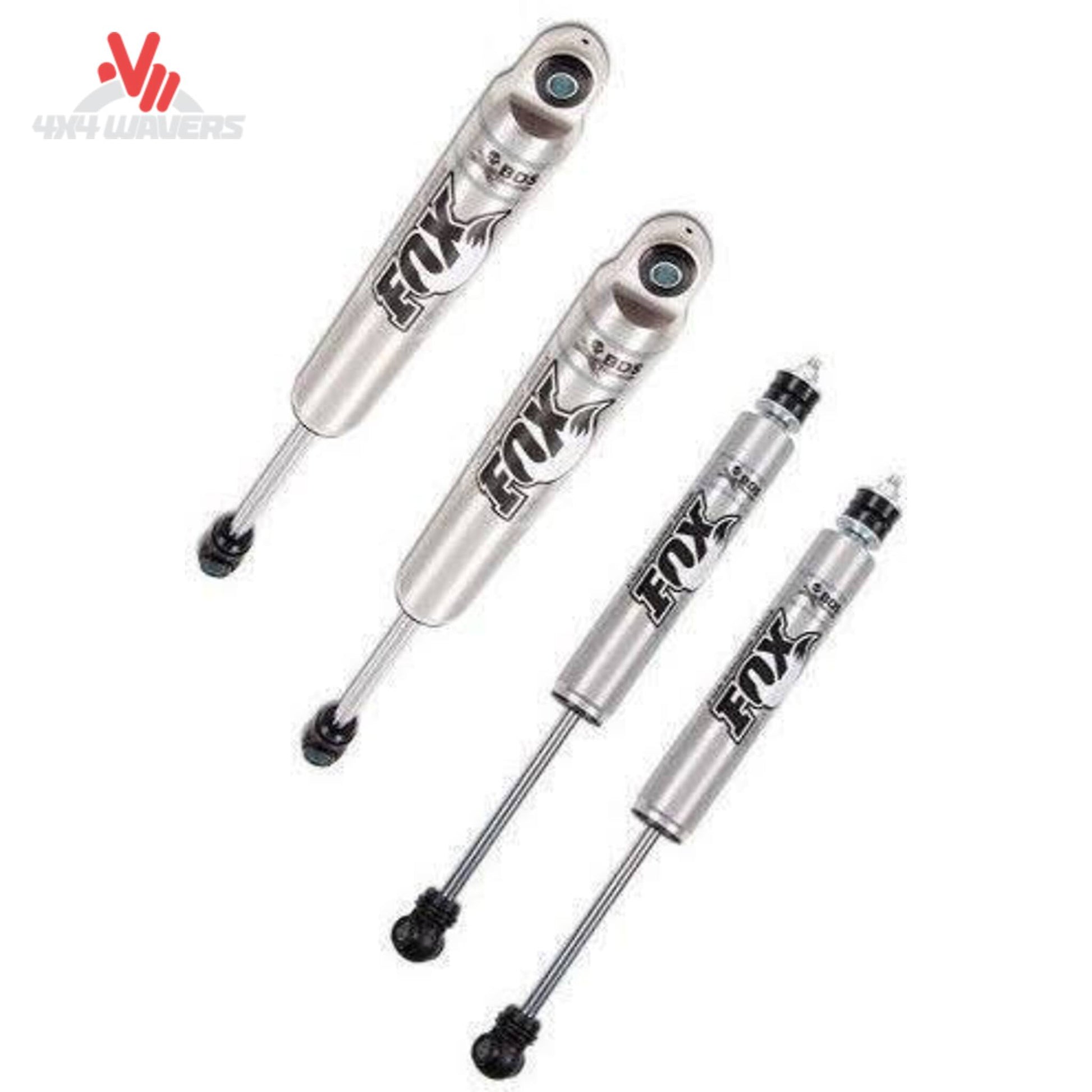

| Body Construction | 2.0-inch impact-extruded & CNC-machined 6061-T6 aluminum |
| Body Finish | Clear anodized finish for maximum rust and corrosion resistance |

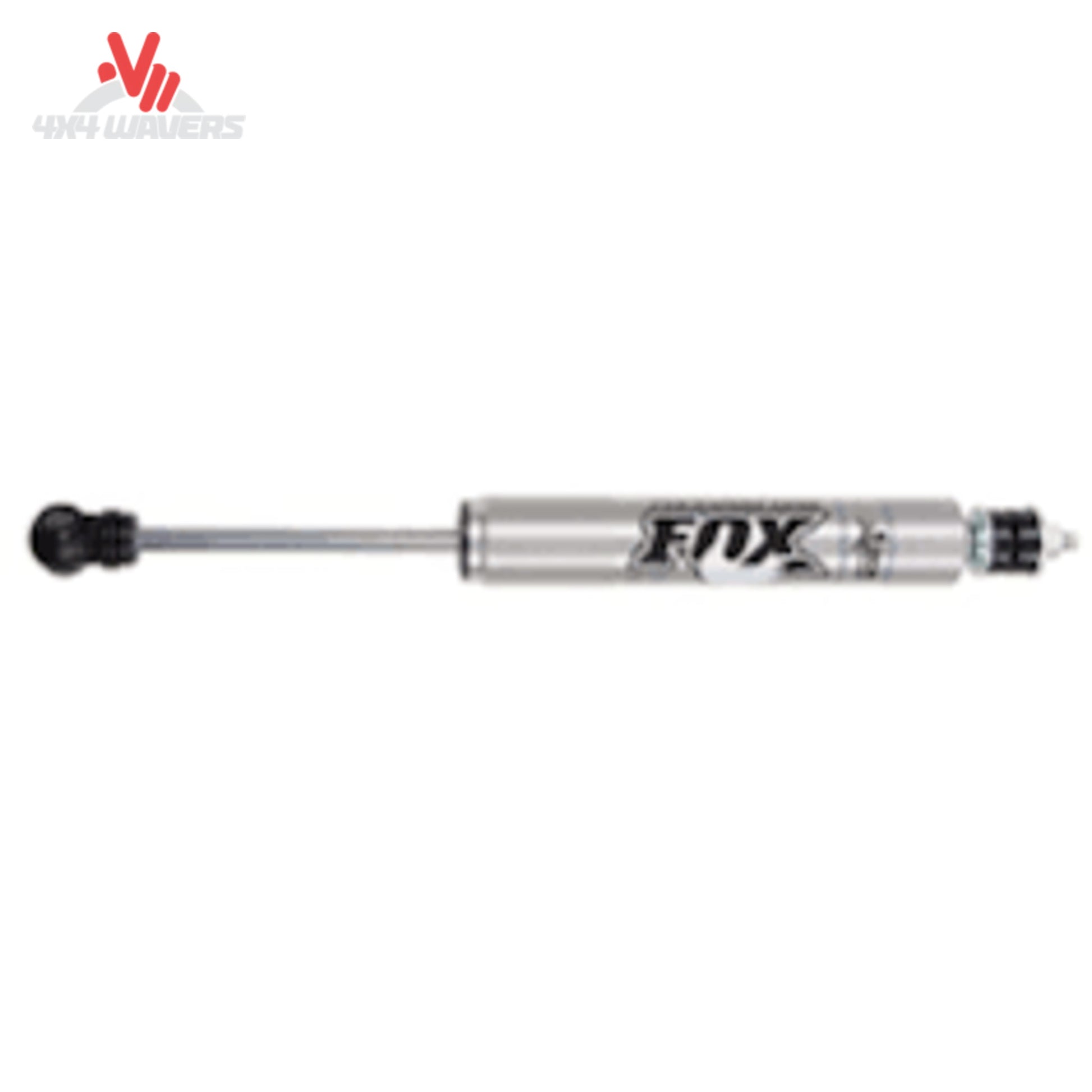

| Shaft Material | 5/8-inch hard chrome-plated heat-treated alloy steel |
| Piston Architecture | Race-developed high-flow piston with custom application valving |
| Seals & Fluid | Redundant triple-lip wiper seal with JM36 advanced suspension fluid |
| Warranty | BDS No Fine Print Lifetime Warranty & FOX 1-Year Manufacturer Warranty |
Vehicle Fitment & Lift Specifications
- GM 1500 Trucks & SUVs (2024, 2025, 2026): Fits models equipped with 6" Rear Lift.
- GM 1500 Trucks & SUVs (2019, 2020, 2021, 2022, 2023): Fits models at 0" (Stock Height) Rear Lift.
- GM 1500 Trucks & SUVs (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Legacy): Fits models equipped with 3" Rear Lift.
- GM 1500 Trucks & SUVs (2000, 2001, 2002, 2003, 2004, 2005, 2006): Fits models equipped with 4" Rear Lift.
- Ram 1500 / 2500 Pickups: Fits models equipped with 2" Rear Lift.
- Fitment Requirements & Exclusions: 2007–2013 GMC Yukon Denali / Cadillac Escalade models with AutoRide or electronic air suspension require an aftermarket AutoRide delete/bypass module to prevent error lights on the instrument cluster. Sold individually.
Installation Notes
- Direct bolt-on replacement for factory rear shock absorbers using original factory mounting hardware and locations.
- Includes quiet, durable nitrile rubber bushings for long service life and reduced road noise transmission.
- Verify collapsed and extended stroke length requirements relative to your specific rear lift block or leaf spring package prior to installation.
Frequently Asked Questions
What is the benefit of the IFP (Internal Floating Piston) design?
The IFP separates the shock oil from the high-pressure nitrogen gas chamber, preventing cavitation (foaming) and maintaining consistent damping performance even under severe heat cycles.
Is this shock sold as a pair or individually?
This product is sold individually (quantity of 1). Please order a quantity of 2 when replacing both rear shock absorbers on your vehicle.
SKU: BDS98224719
