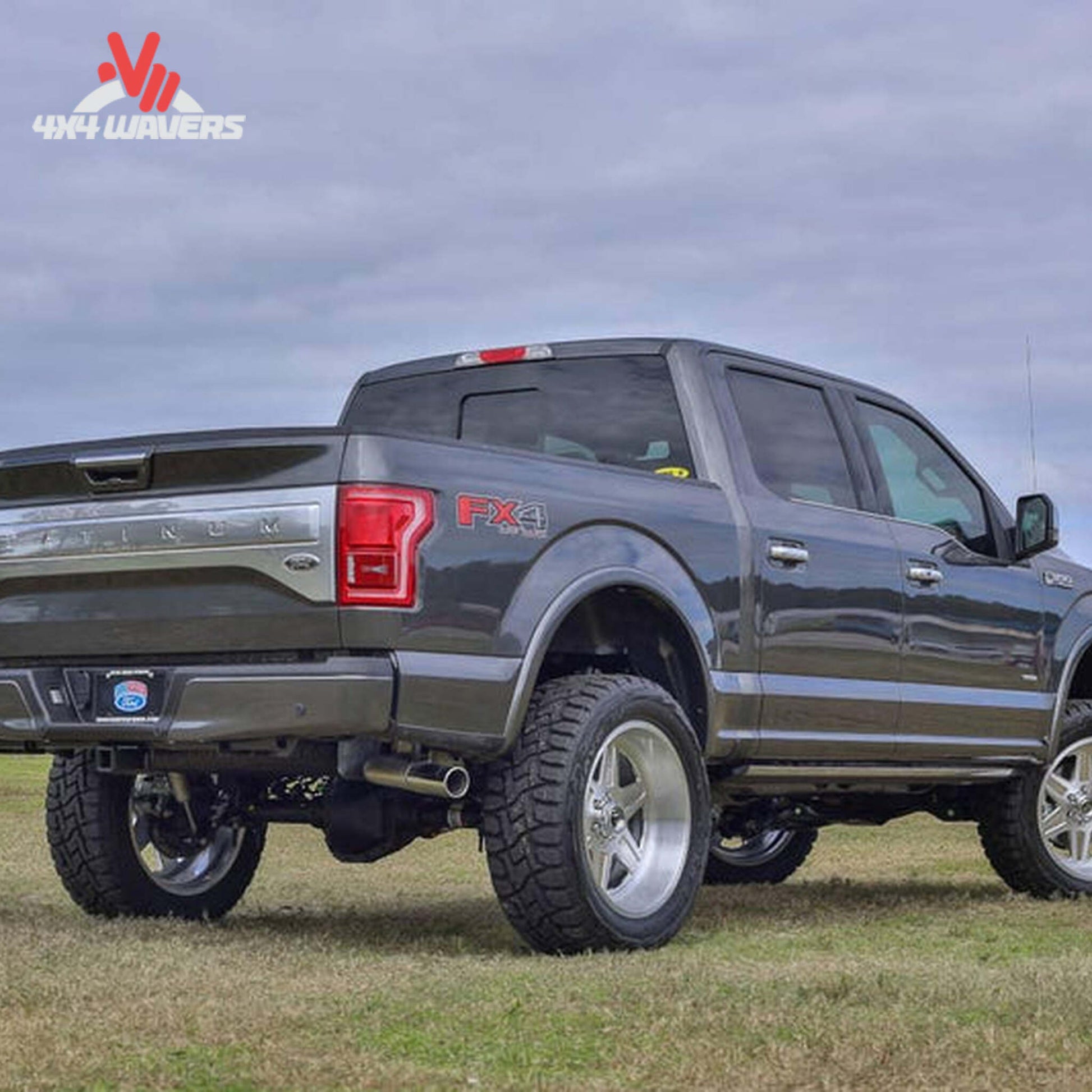

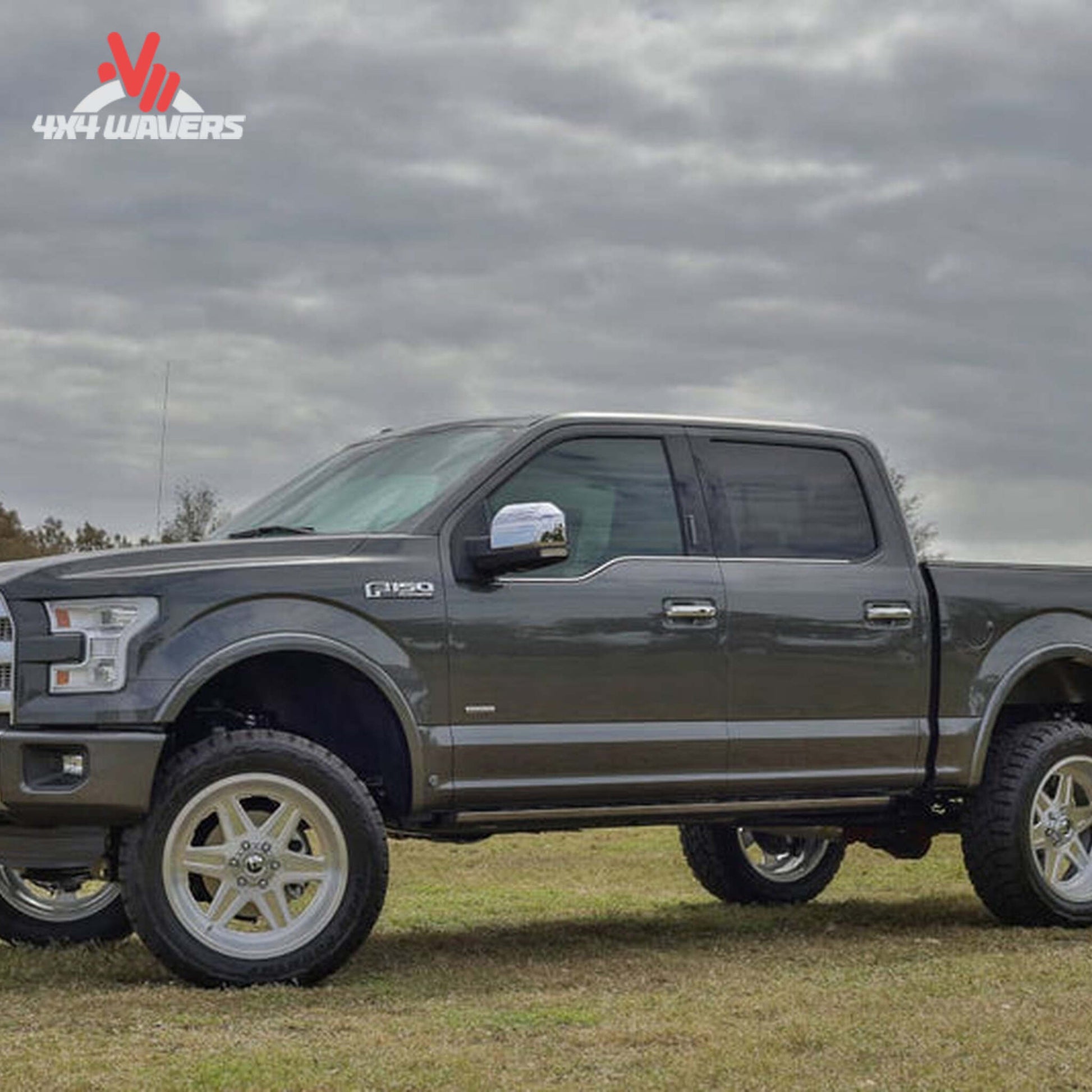

  • Black Ford F-150 with BDS 6-inch lift kit and NX2 shocks installed, showcasing the lifted 4WD truck in a side view.

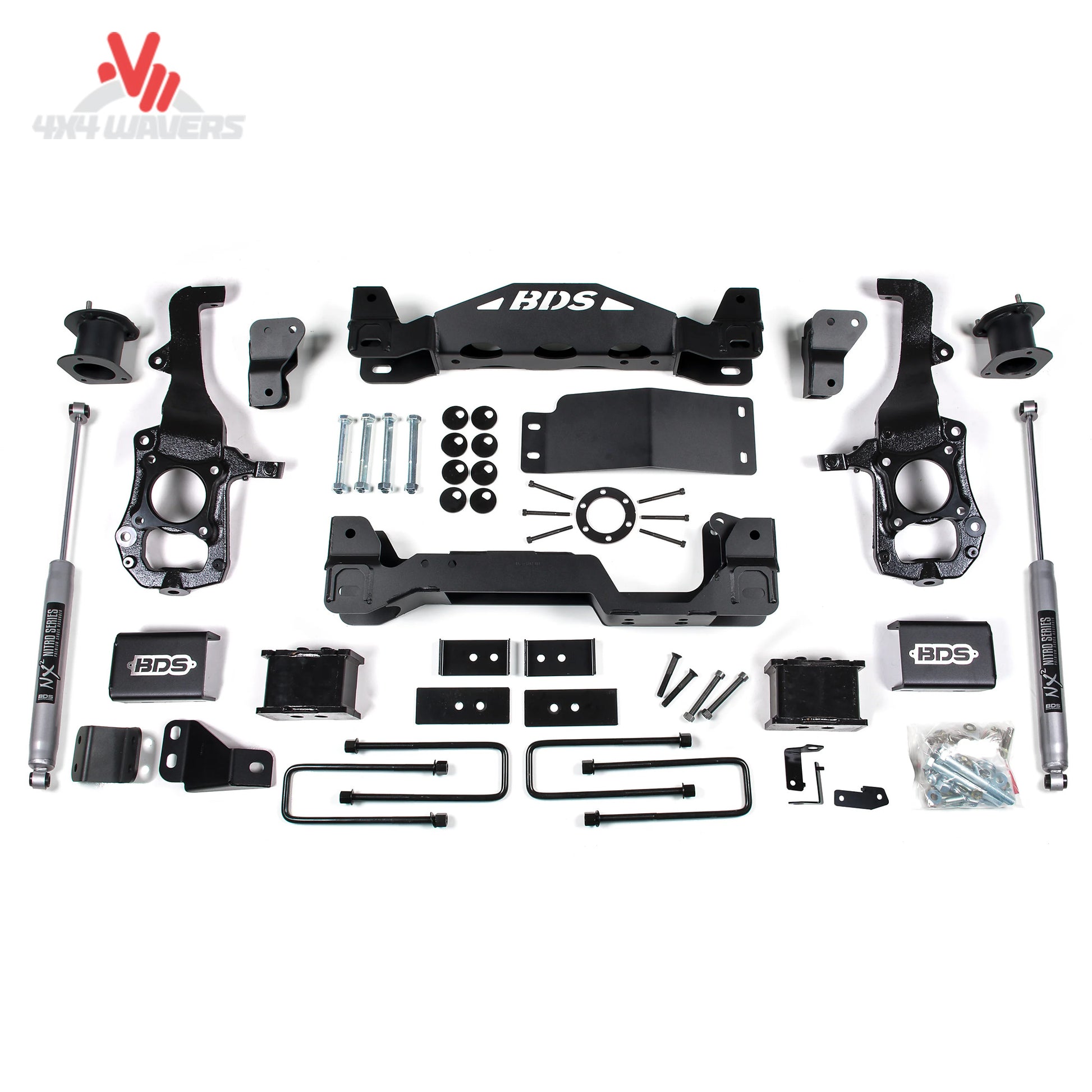

  • BDS 6-inch lift kit with NX2 shocks for 2021-2026 Ford F-150 4WD, featuring lifted suspension components and shock absorbers.

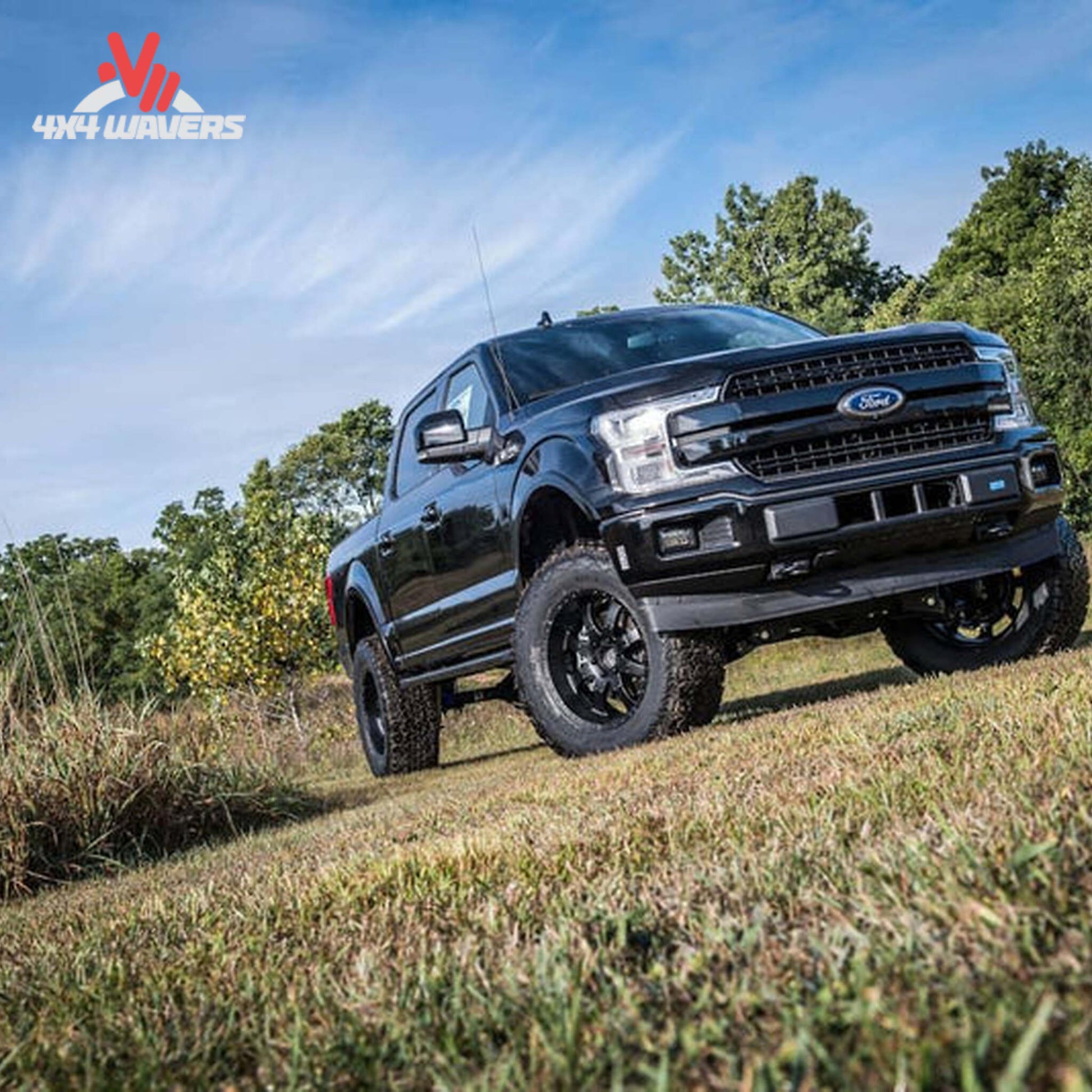

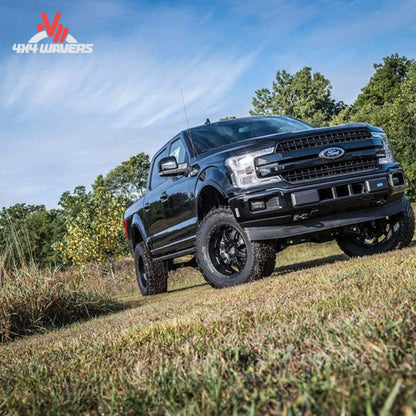

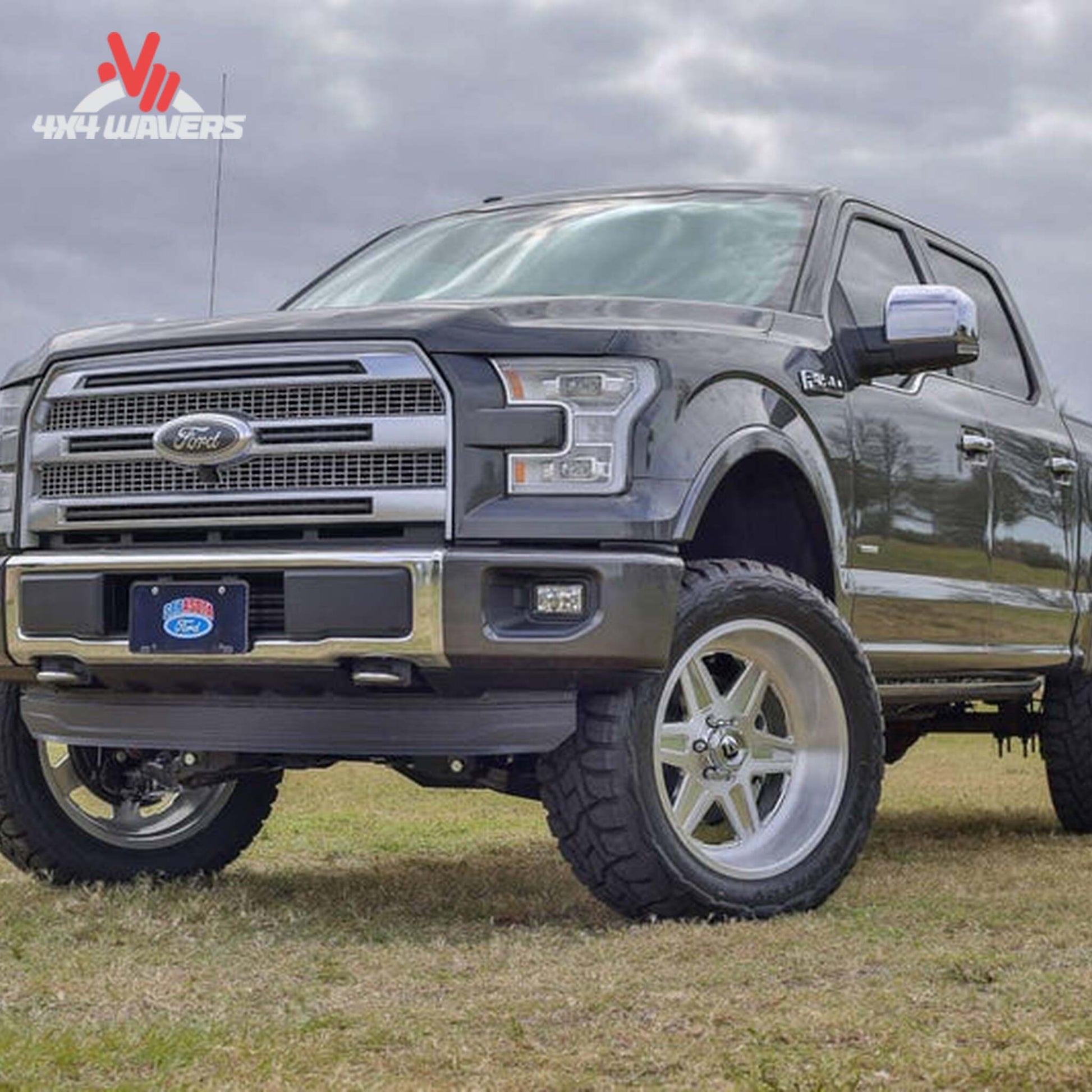

  • Black Ford F-150 with BDS 6-inch lift kit and NX2 shocks installed, showing the lifted 4WD truck with upgraded suspension.

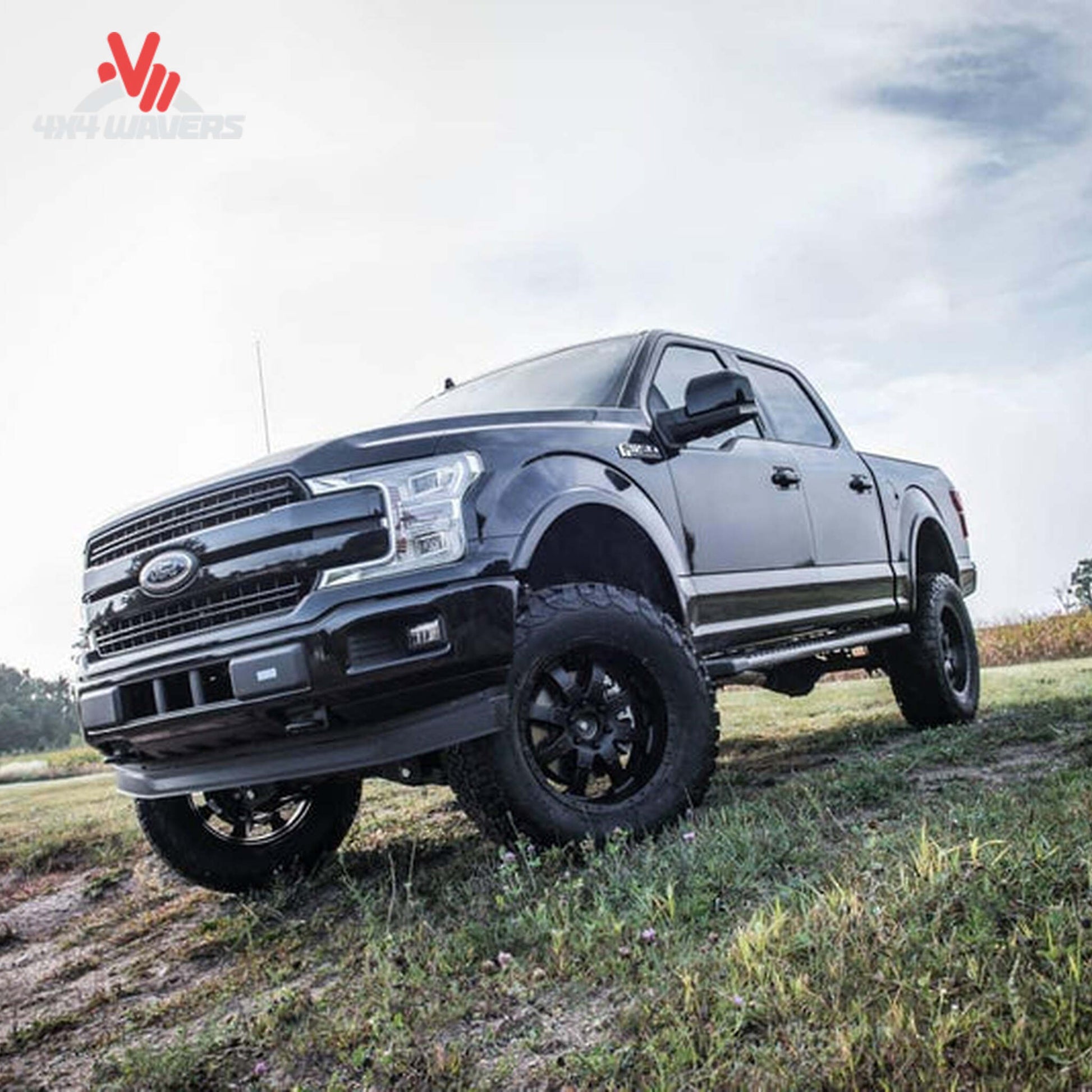

  • Black Ford F-150 with BDS 6-inch lift kit and NX2 shocks installed, showing upgraded suspension and off-road-ready stance.

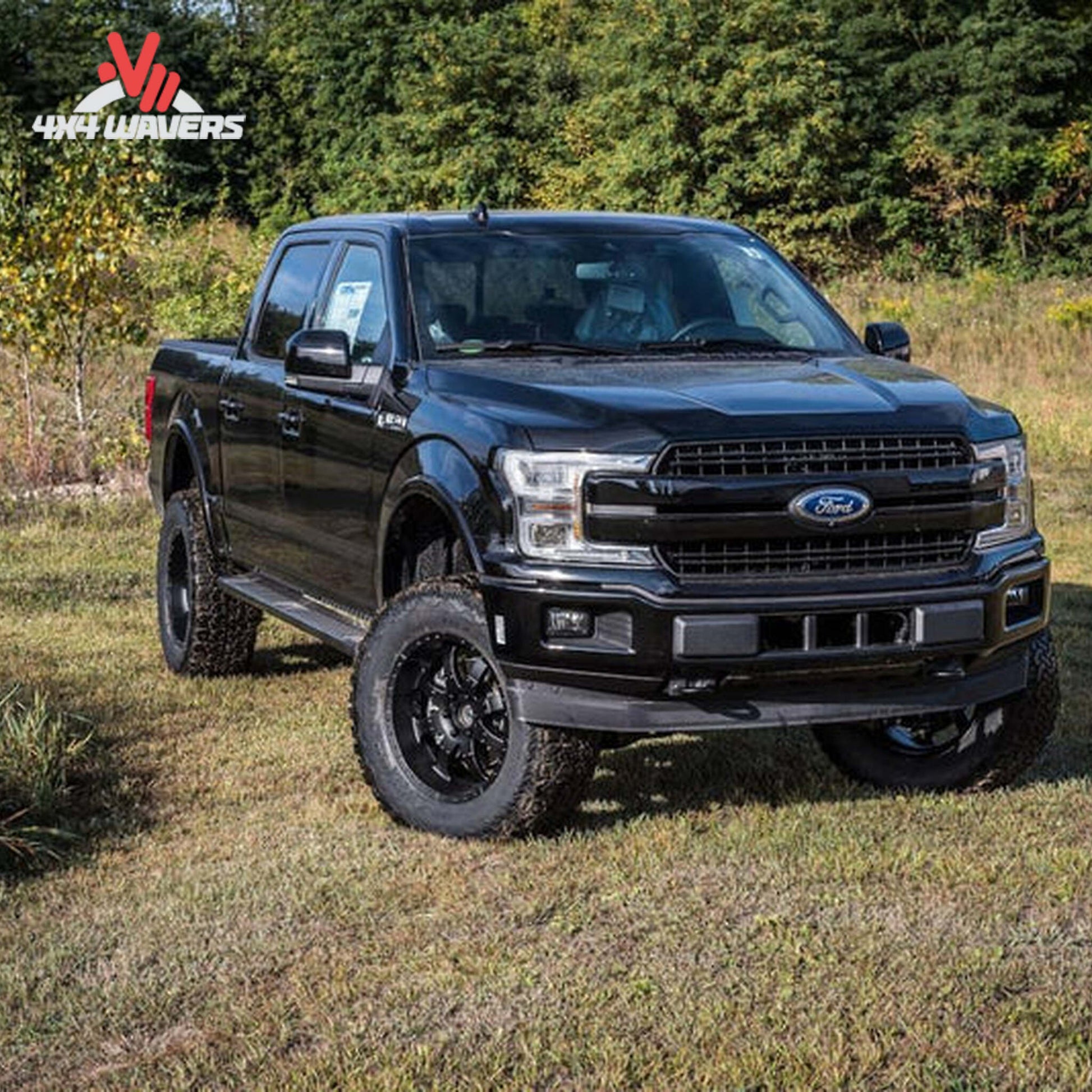

  • BDS 6-inch lift kit with NX2 shocks installed on a black Ford F-150 4WD truck with steel bumper

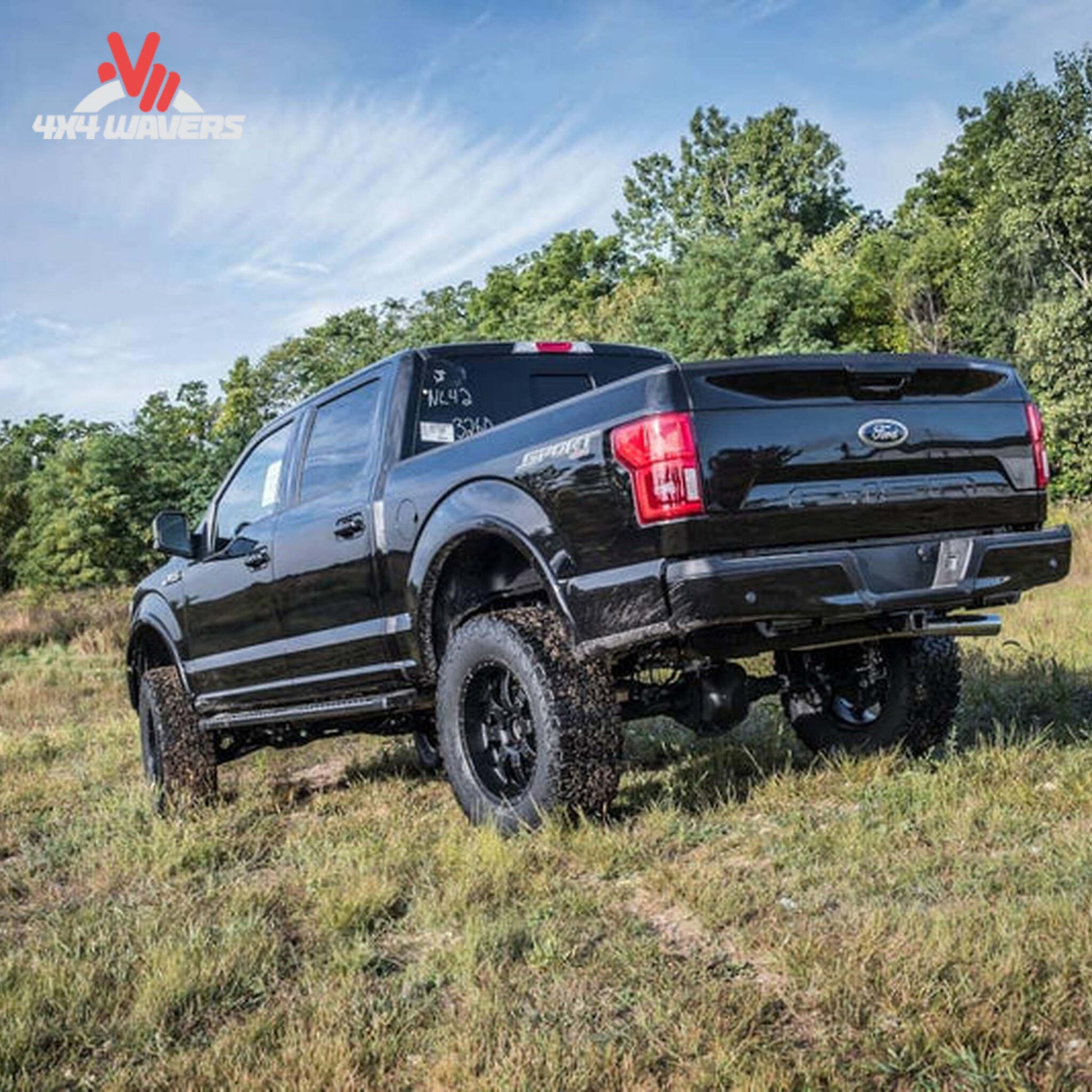

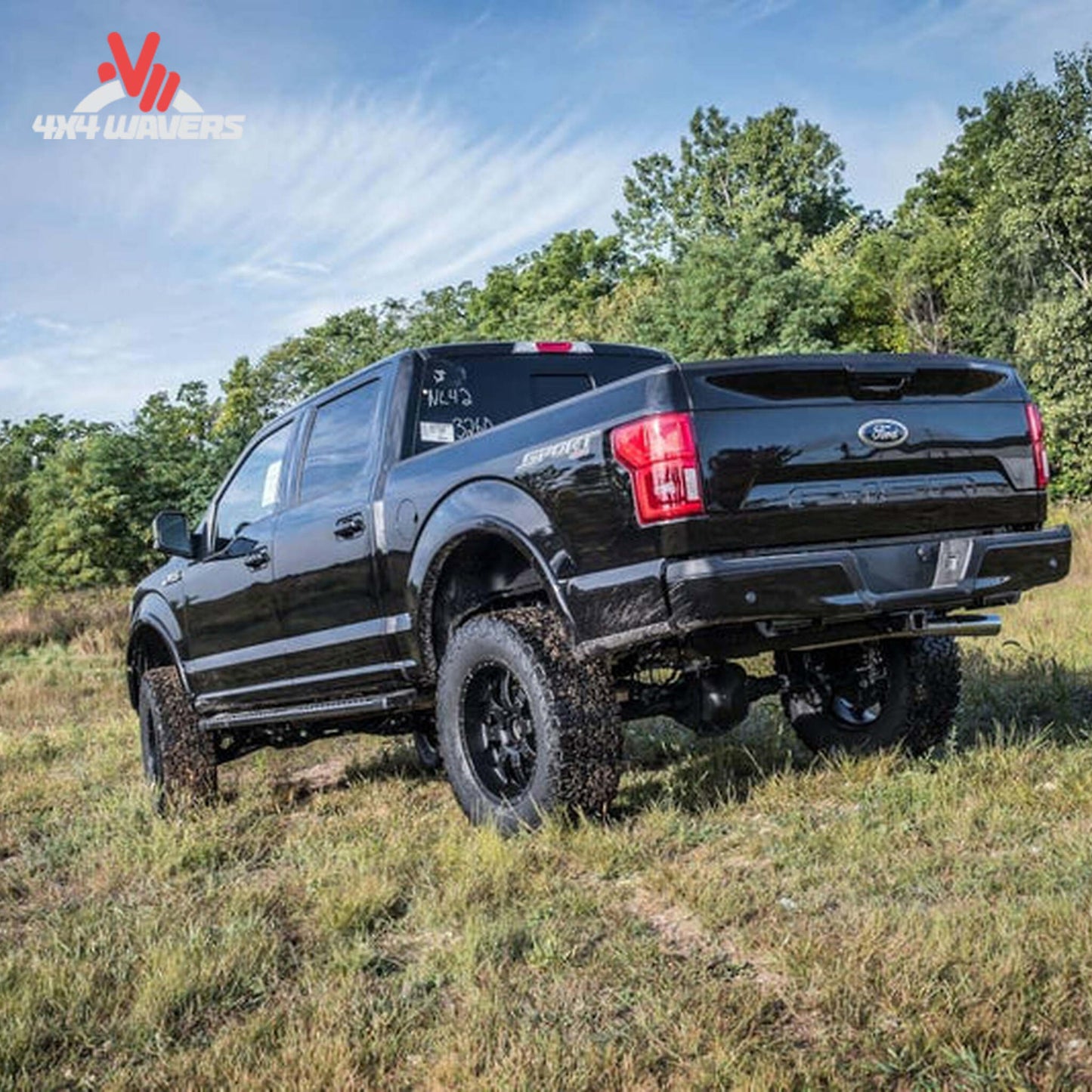

  • Black Ford F-150 with BDS 6-inch lift kit and NX2 shocks installed, showcasing the lifted 4WD truck with rugged tires.
1 8

BDS Suspension

BDS 6" Lift Kit NX2 Shocks | 21-26 Ford F-150 4WD

BDS 6" Lift Kit NX2 Shocks | 21-26 Ford F-150 4WD

🚚 Free Shipping Across US & Canada For Orders +$200 📦 Customs Duties Included — No Surprises🇨🇦 Ships from Canada🛡️ 1-Year Warranty↺ Easy Returns 👥 Ships in 1-3 days🍁 North America Based Support
$2,869.00 CAD
$3,249.00 CAD $2,869.00 CAD
Sale Coming soon
Shipping calculated at checkout.

BDS 6-Inch High-Clearance Suspension Lift Kit with NX2 Nitro Shocks for Ford F-150 4WD

The BDS 6-inch high-clearance suspension system elevates obstacle clearance and off-road geometry while retaining full factory electronic drive assistance across freezing, snow-packed, and rutted trail environments.

Because structural load and geometry analysis confirms its ductile iron steering knuckles and 1/4-inch steel crossmembers maintain factory Electronic Stability Control (ESC) tracking, this system ensures uncompromising trail durability and highway safety. Suspension chassis specialists note that "integrating high-clearance lower control arm crossmembers with a heavy-duty differential skid plate preserves correct CV axle angles while protecting vulnerable front axle components from severe impact."

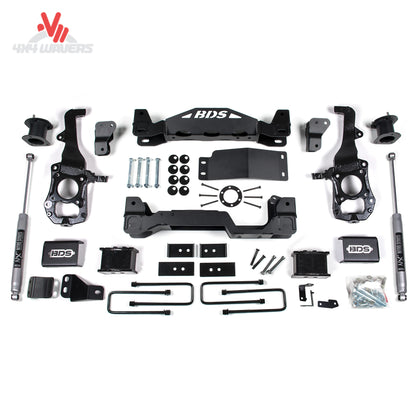

Featuring top-mounted steel strut extensions, rear lift blocks with heavy-duty U-bolts, and vehicle-valved NX2 Nitro series shocks, this 6-inch lift kit creates clearance for up to 35-inch all-terrain tires.

Technical Specifications

Specification Feature Engineering Standard
Front Lift Height 6.0 Inches
Rear Lift Height Rear Lift Blocks with Heavy-Duty U-Bolts
Crossmember Design 1/4-Inch Thick High-Clearance Steel Crossmembers
Steering Knuckles Extended CNC-Machined Ductile Iron Knuckles
Underbody Protection Heavy-Duty Full Differential Skid Plate Included
Rear Damping BDS NX2 Nitro Series Shocks (Twin-Tube Nitrogen Charged)
Wheel Diameter Requirement 18-Inch or Larger Diameter Wheels Required
Max Recommended Tire Size 35" x 12.50" on 18x9/20x9 Wheels (5" to 5.5" Backspacing)

Vehicle Fitment

  • Make: Ford
  • Model: F-150 (4WD / 4x4 Models Only)
  • Body Style: Pickup Truck (Regular Cab, SuperCab, SuperCrew)
  • Years: 2021, 2022, 2023, 2024, 2025, 2026
  • Fitment Exclusions: Excludes 2WD models, Tremor models, 3.0L Power Stroke Diesel V6, Lightning EV models, and vehicles equipped with Continuously Controlled Damping (CCD).

Installation Notes

  • Requires 18-inch or larger diameter wheels; stock 17-inch and 18-inch wheels cannot be reinstalled due to steering knuckle clearance.
  • Includes a precision differential drop system and skid plate to maintain OEM front axle geometry and CV joint durability.
  • Top-mounted strut extensions maintain stock spring rate and ride comfort without requiring disassembly of factory coilovers.
  • A full four-wheel alignment is mandatory post-installation to re-calibrate front sensors and electronic stability systems.

Frequently Asked Questions

Will this BDS 6-inch lift kit fit the Ford F-150 Tremor or F-150 Lightning EV?

No. This kit is engineered specifically for standard 2021-2026 Ford F-150 4WD models and does not fit Tremor, Lightning EV, Power Stroke Diesel, or CCD-equipped models.

Can I fit 35-inch tires on my 2021-2026 Ford F-150 with this 6-inch lift kit?

Yes. This 6-inch suspension lift is designed to clear 35x12.50 tires on 18-inch or larger wheels with 5 to 5.5 inches of backspacing.

SKU: BDS1579H
