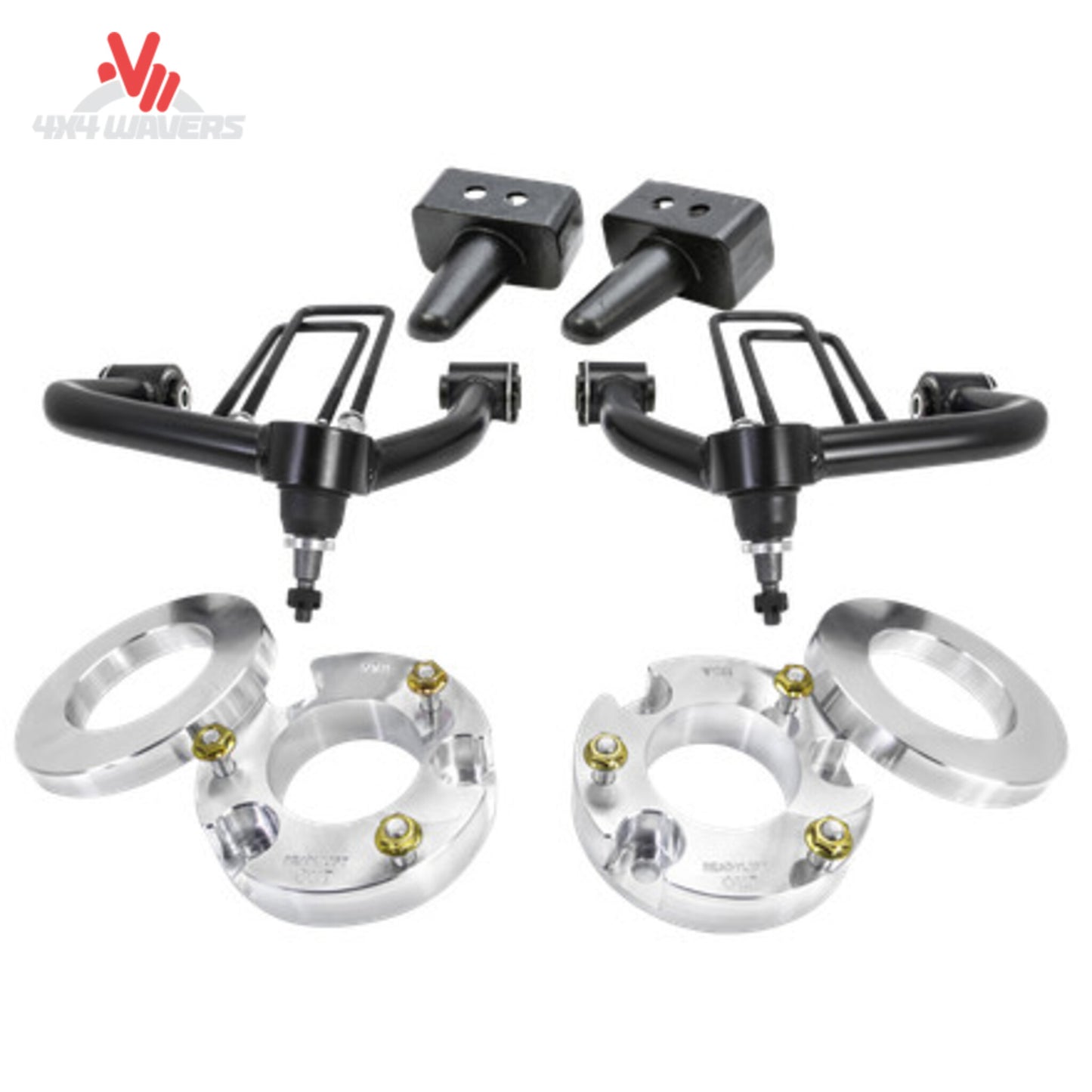

  • ReadyLIFT tubular steel upper control arms with corrected ball joint cup 69-2302
1 4

ReadyLift

ReadyLIFT 3.5 SST Lift Kit F150 | 09-13 Ford F-150

ReadyLIFT 3.5 SST Lift Kit F150 | 09-13 Ford F-150

🚚 Livraison gratuite - USA et Canada - dès 200$ 📦 Droits de douane inclus – aucune surprise🇨🇦 Expédié du Canada🛡️ Garantie 1 an↺ Retours faciles 👥 Expédié en 1 à 3 jours🍁 Support en Amérique du Nord
$1,234.00 CAD
$1,399.00 CAD $1,234.00 CAD
En vente Bientôt disponible
Frais d'expédition calculés à l'étape de paiement.

ReadyLIFT 3.5-Inch SST Lift Kit for 2009-2013 Ford F-150

The ReadyLIFT 3.5-Inch SST Lift Kit elevates the front suspension by 3.5 inches and the rear by up to 2.0 inches on your 2009-2013 Ford F-150 because it integrates heavy-duty DOM tubular steel upper control arms with corrected 14-degree ball joint cups to maintain proper alignment geometry. "Maintaining optimal upper ball joint angles and CV axle articulation is essential for preventing premature suspension bind during extreme chassis flex," notes off-road chassis engineering principles.

Engineered to withstand harsh Canadian road salt, extreme freeze-thaw cycles, and rough trail conditions, this non-destructive lift kit increases underbody clearance for up to 35-inch tires while retaining factory ride quality.

Technical Specifications

Specification Detail
Lift Height 3.5 Inches (Front) / Up to 2.0 Inches (Rear)
Control Arm Design DOM Tubular Steel with 14-Degree Corrected Ball Joint Cup
Bushings TCT Free-Floating, Self-Lubricating Polyurethane Bushings
Front Lift Mechanism CNC-Machined Billet Aerospace Aluminum Offset Top Spacers
Rear Lift Mechanism OEM-Style Cast Lift Blocks with Integrated Bump Stop Pads
Max Recommended Tire Size Up to 35x11.50 (35x12.50 on 9" wide wheel with +12 offset)

Vehicle Fitment

  • Make: Ford
  • Model: F-150 (2WD & 4WD / Gas Engines)
  • Years: 2009, 2010, 2011, 2012, 2013
  • Driveshaft: Compatible with 1-Piece and 2-Piece Driveshaft models (Includes carrier bearing spacer)
  • Note: NOT compatible with factory pre-lifted/leveled trims, SVT Raptor, or models equipped with factory Off-Road Package.

Installation Notes

  • 100% bolt-on application that requires no cutting, welding, or permanent modification of factory components.
  • Installs in approximately 3 to 4 hours using standard mechanical hand and air tools.
  • Includes carrier bearing spacer to correct rear driveline angles on trucks with two-piece driveshafts.
  • A complete wheel alignment is strictly required after installation to ensure even tire wear and factory handling dynamics.

Frequently Asked Questions

Will this ReadyLIFT SST kit ruin my Ford F-150's factory ride comfort?

No, the offset strut spacer design and spring pre-load spacers preserve factory strut geometry and spring rates, guaranteeing OEM-level ride comfort.

Can I clear 35-inch tires after installing this 3.5-inch lift kit?

Yes, this kit clears up to 35x11.50 tires on standard offset wheels (or 35x12.50 on a 9-inch wide wheel with +12 offset) with minimal trimming.

SKU: 69-2302
