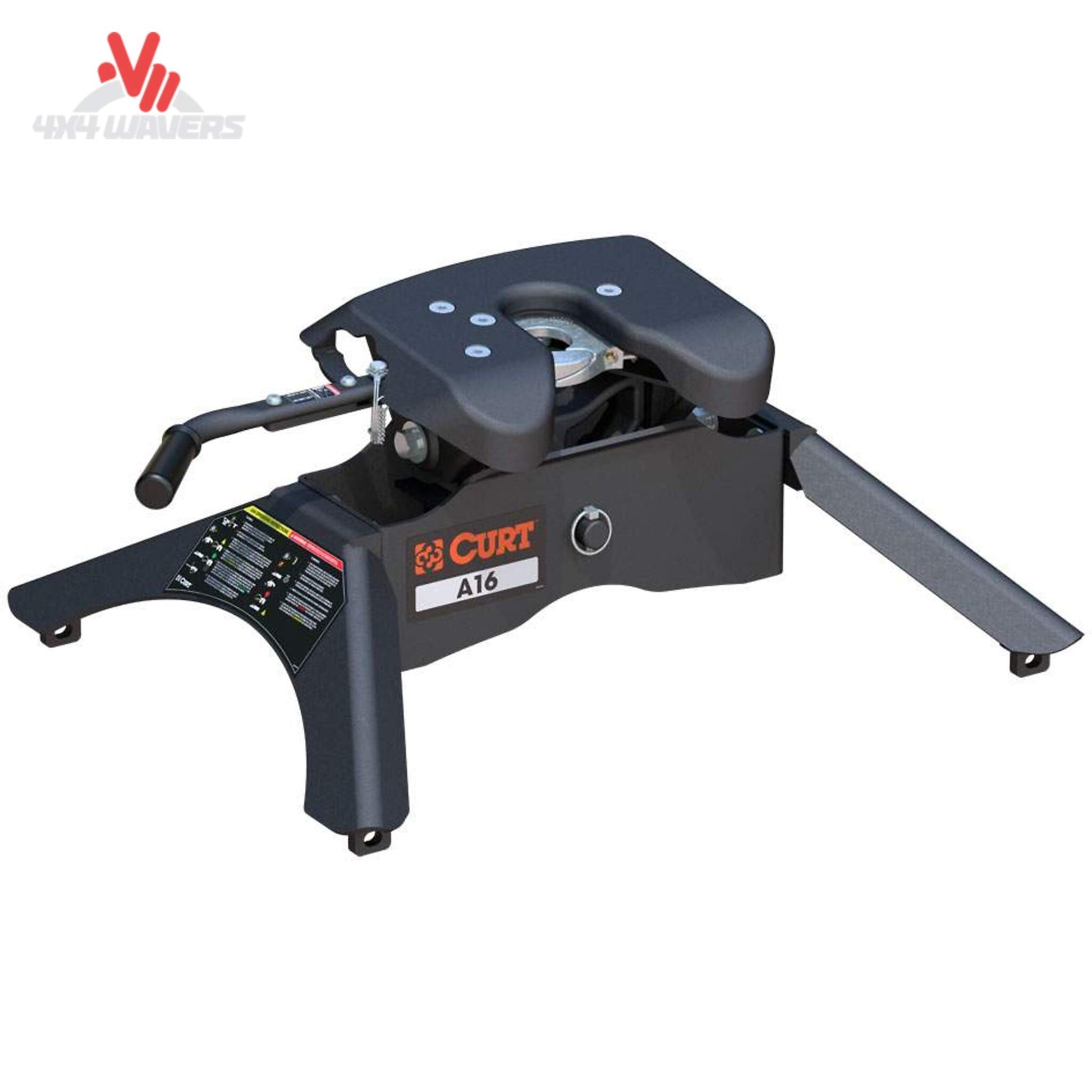

CURT A16 16,000 lbs 5th Wheel Hitch Head and Legs

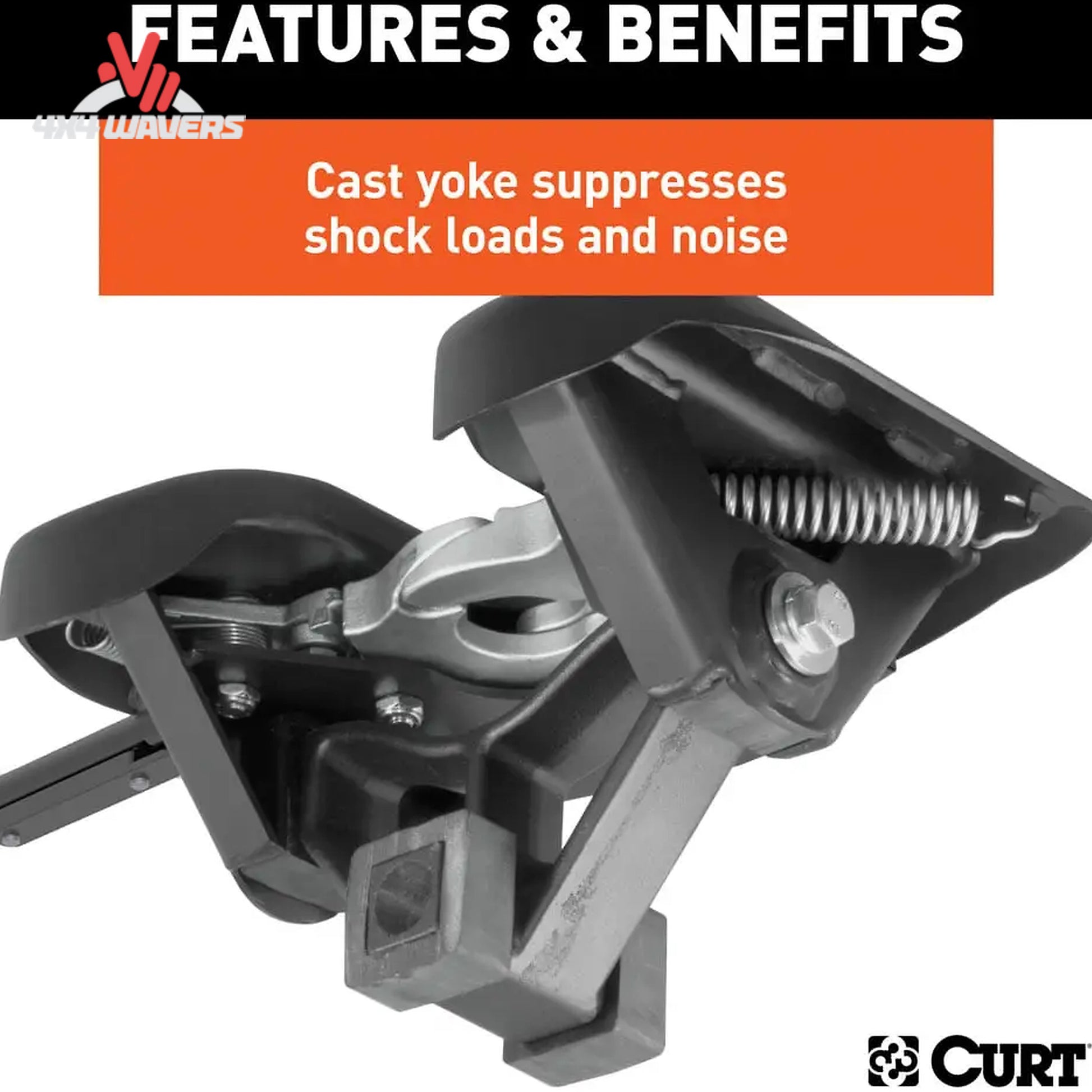

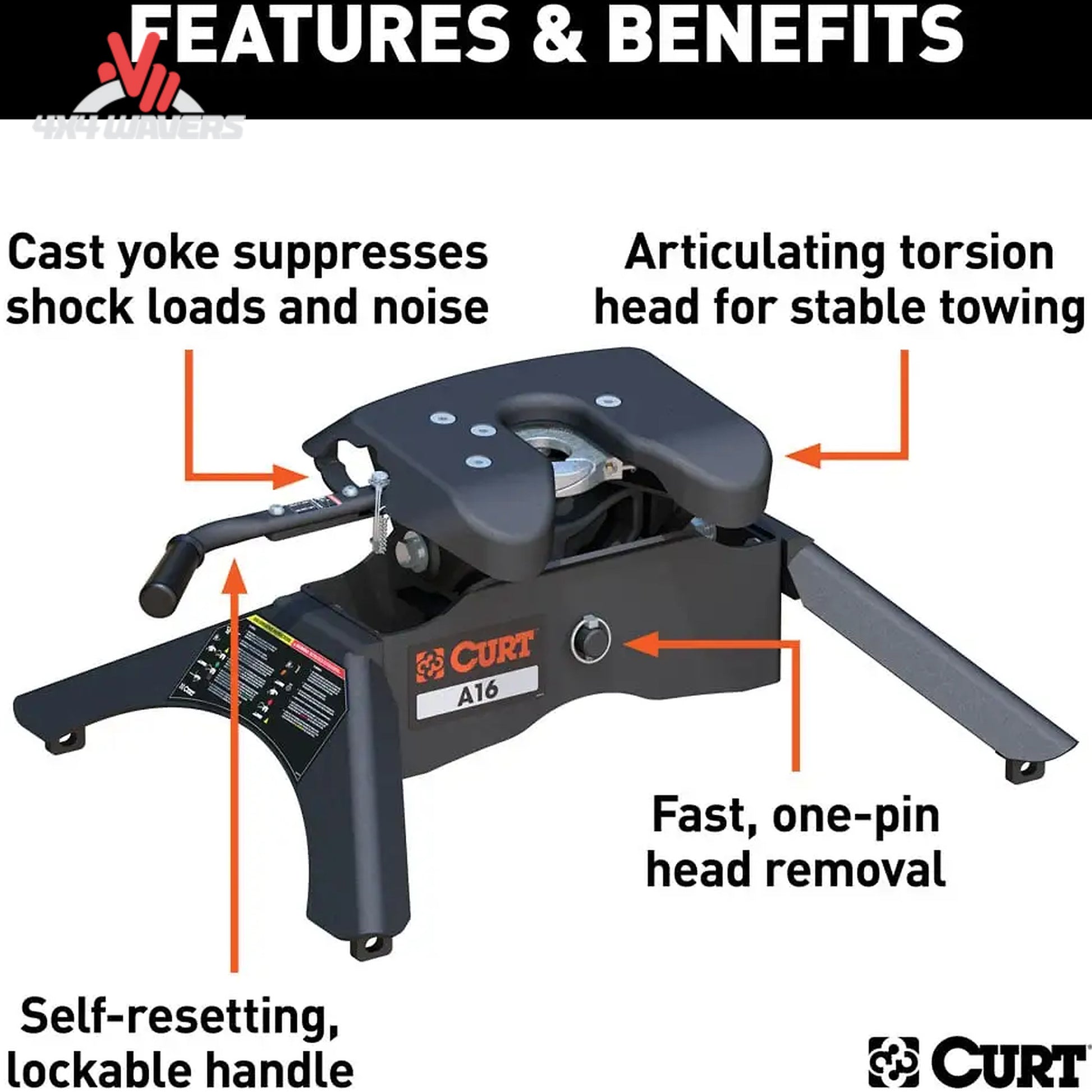

Tow heavy fifth-wheel RVs and trailers with whisper-quiet stability using the CURT A16 16K Fifth Wheel Hitch. Built with a heavy-duty cast yoke featuring internal poly-torsion inserts, this hitch absorbs highway shock loads and dampens chucking noises during acceleration and braking.

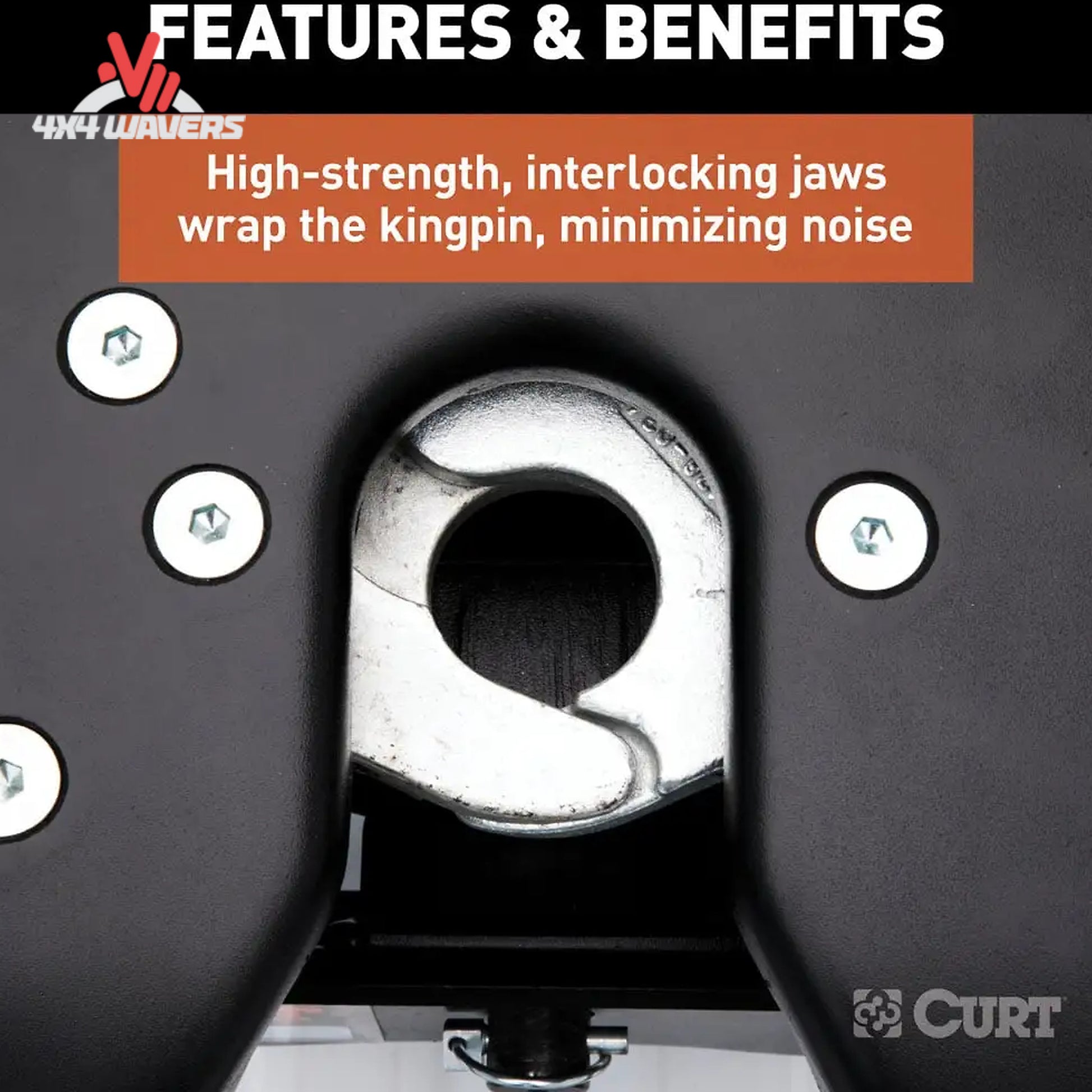

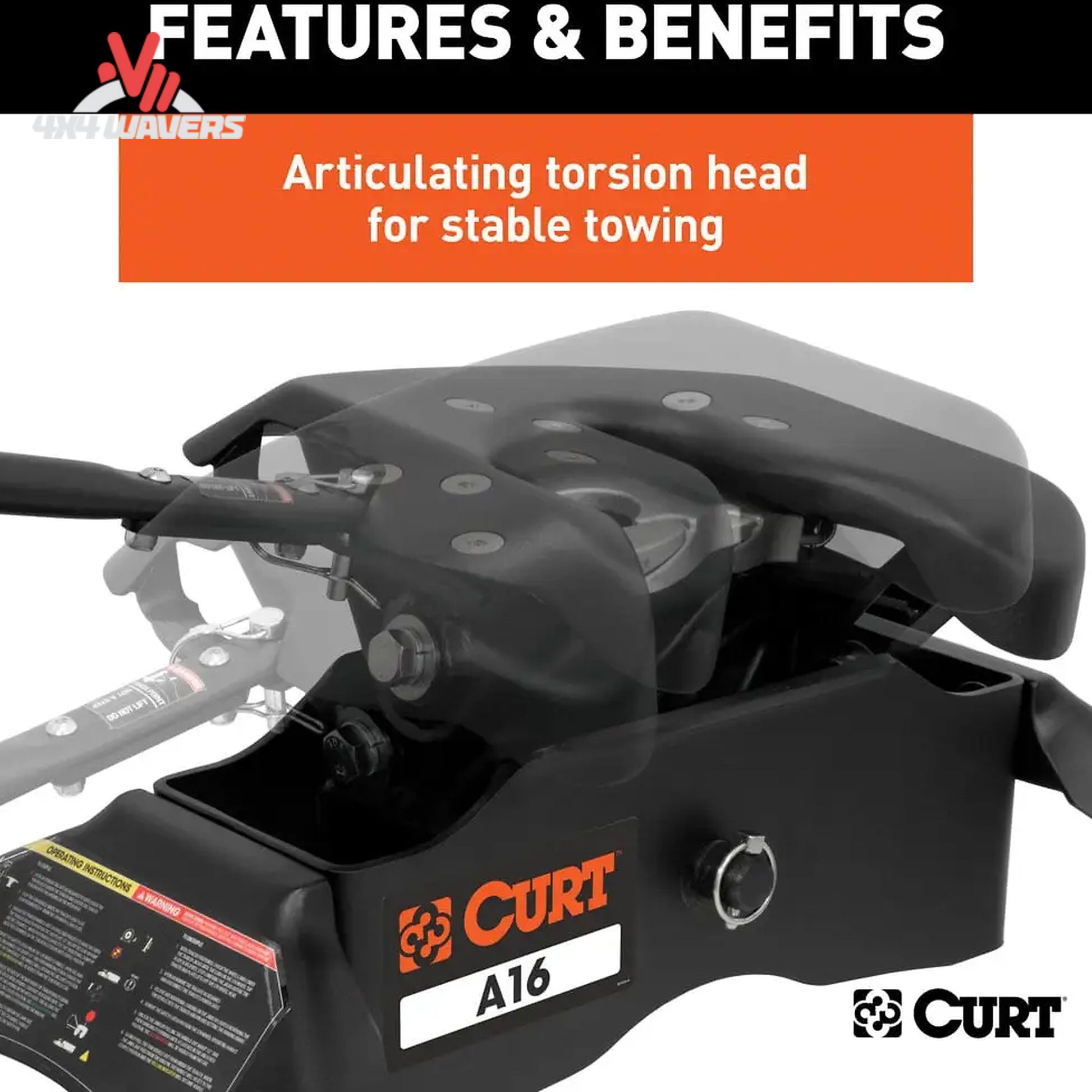

Senior towing systems engineers note, "Interlocking wrap-around jaws create a zero-slop connection around the kingpin, drastically reducing longitudinal chucking and lateral chatter over rough terrain." Compatible with industry-standard base rails, the fully articulating torsion head allows smooth, multi-axial movement for effortless hookups on uneven ground.

Technical Specifications

Specification Detail
Gross Trailer Weight (GTW) Capacity 16,000 lbs (7,257 kg)
Vertical Load (Pin Weight) Capacity 4,000 lbs (1,814 kg)
Jaw Type High-Strength Interlocking Dual Wrap-Around Jaws
Head Mechanism Fully Articulating Torsion Head with Poly-Torsion Shock Inserts

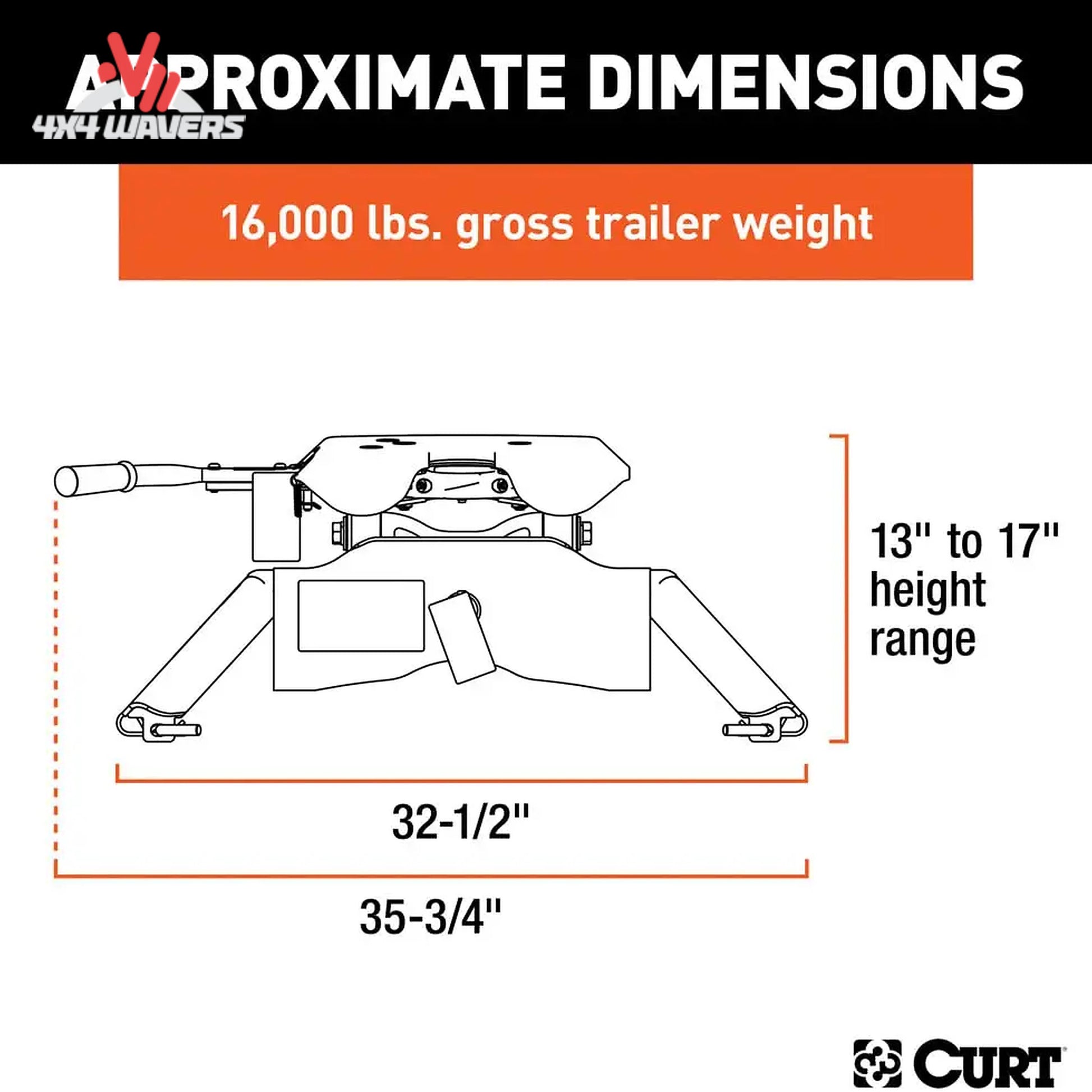

Height Adjustment Range 13 Inches to 17 Inches (3-Position Settings)

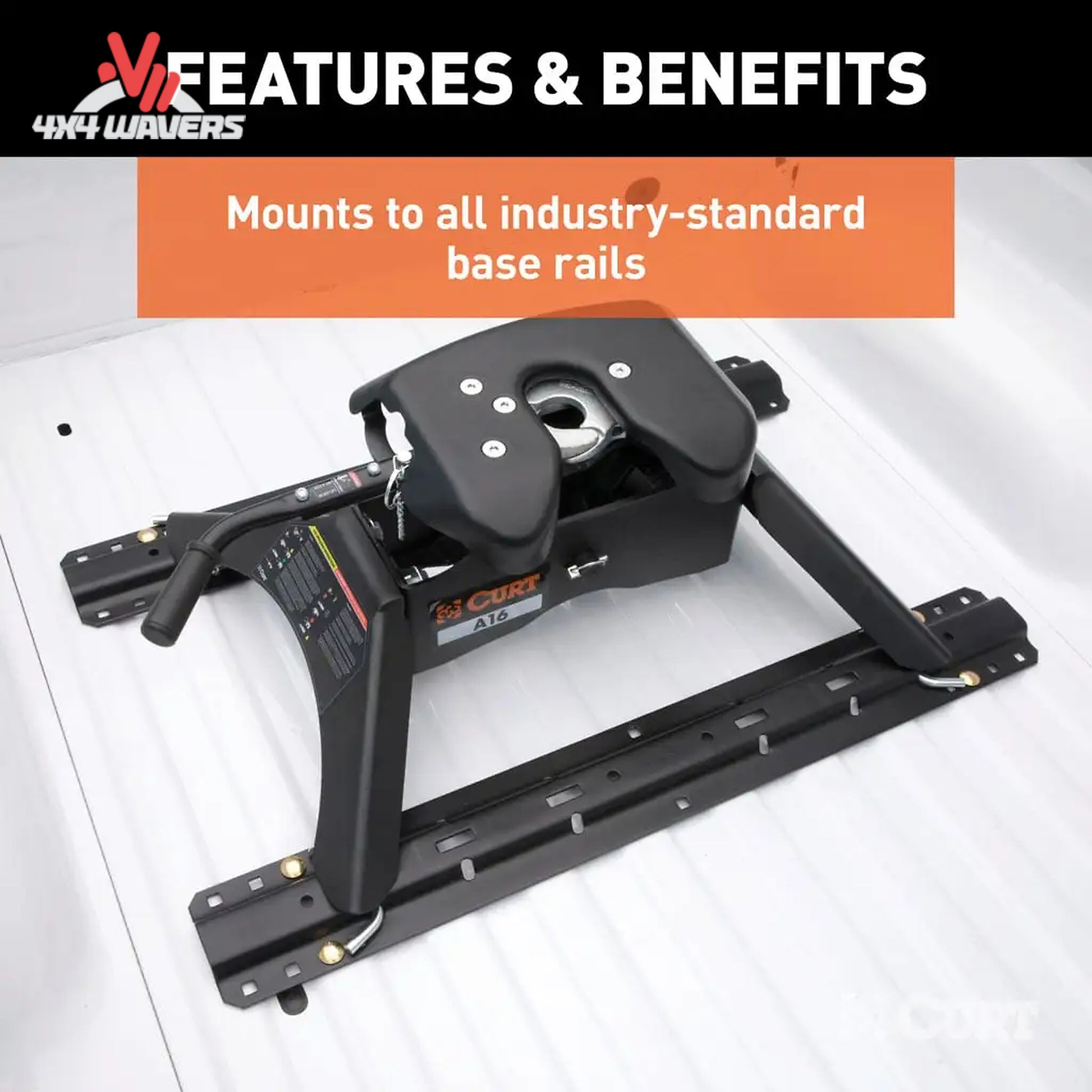

Base Rail Compatibility Mounts to All Industry-Standard Base Rails (Rails Sold Separately)
Safety Certification Tested for Safety in Accordance with SAE J2638 Standards
Finish & Protection Carbide Black Powder Coat Finish with Lube Plate Included

Vehicle Fitment

  • Make & Model: Universal Fitment for Full-Size Trucks (Ford, Chevrolet, GMC, RAM, Toyota, Nissan) equipped with Industry-Standard Base Rails.
  • Bed Configurations: Fits 8-foot Long Beds directly. Short-bed trucks require a 5th wheel slider or pivoting pin box to ensure adequate cab clearance during tight turns.
  • Base Rail Fitment: Mounts directly to CURT, Reese, Draw-Tite, and Pro Series industry-standard base rails.
  • Exclusions: Base rails and under-bed mounting brackets sold separately.

Installation Notes

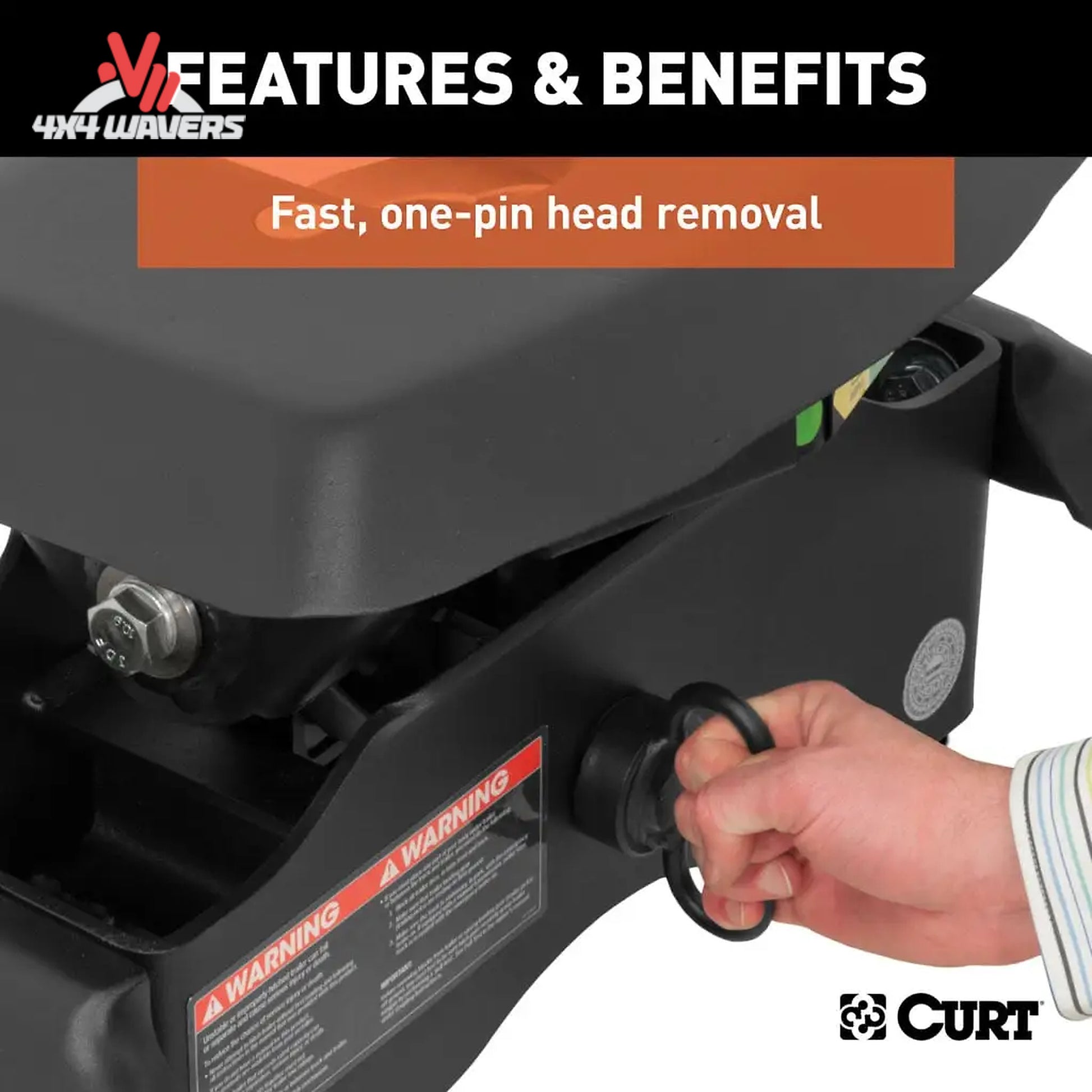

  • Modular 1-Pin Head Removal: Features a single-pin head detachment system, allowing the head and legs to be separated into lighter components for easy bed removal and storage.

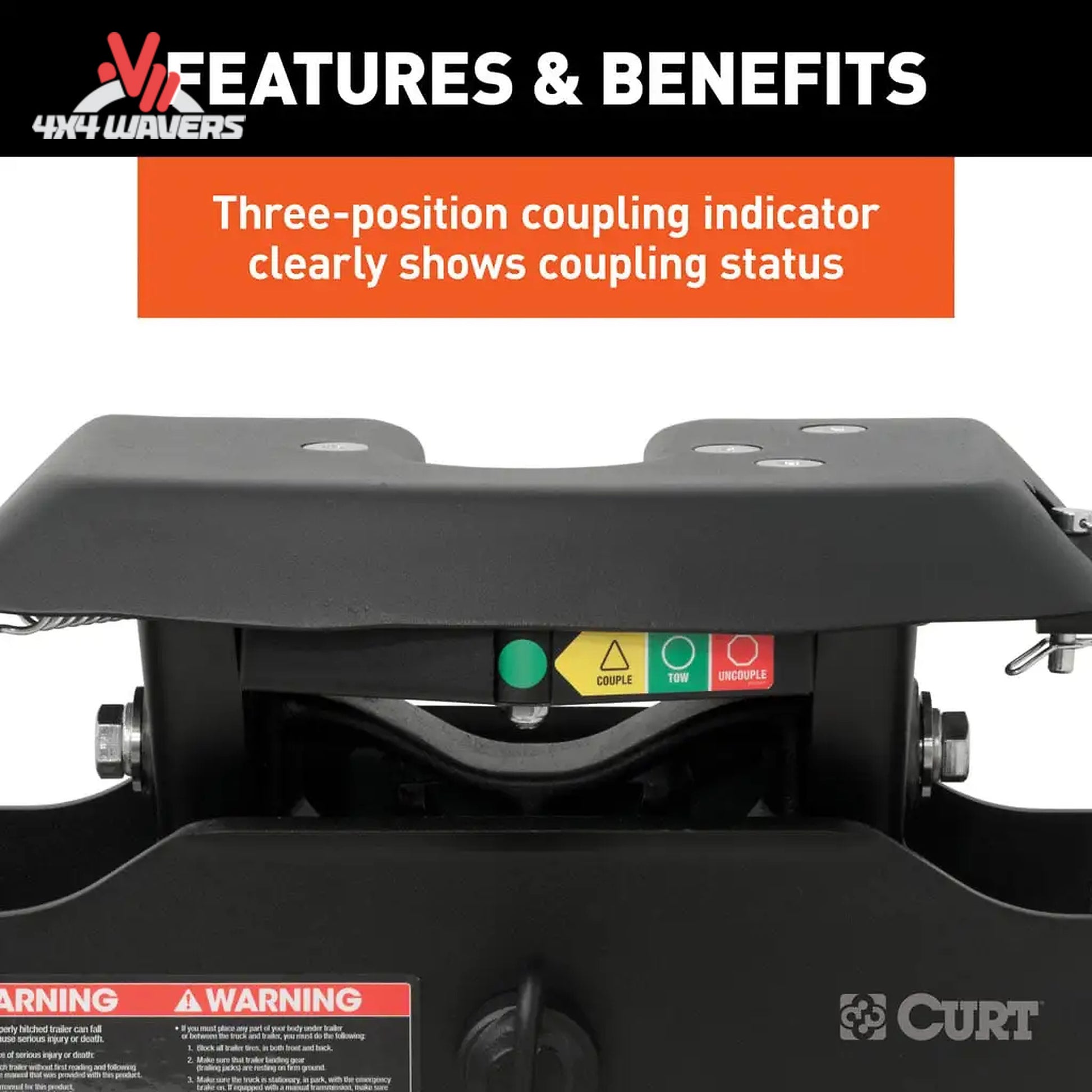

  • Status Indicator Panel: Includes an integrated 3-position color-coded indicator that clearly shows ready-to-couple, coupled, or uncoupled status.

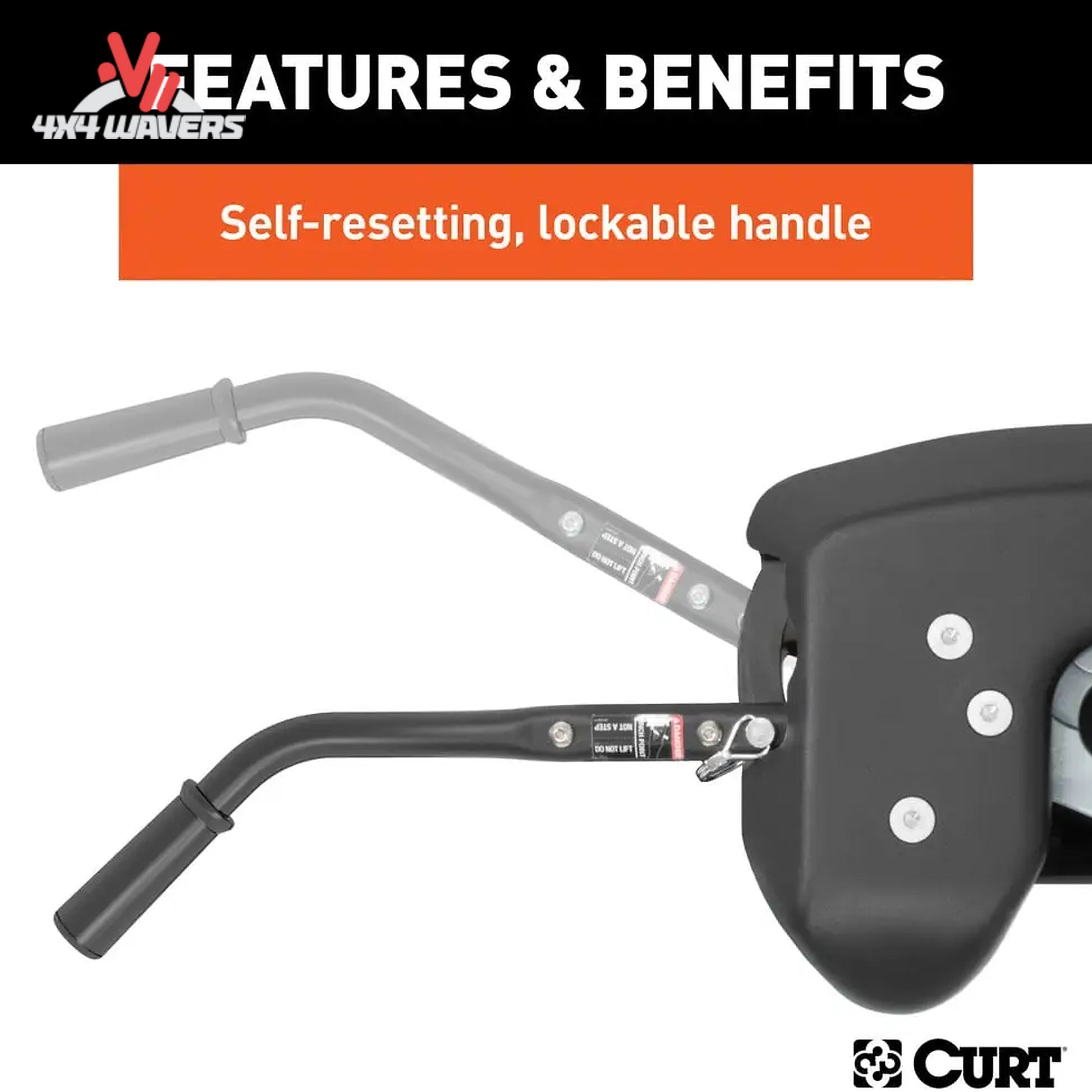

  • Self-Resetting Handle: The lockable latch handle automatically resets to the ready-to-couple stance after uncoupling your trailer.

Frequently Asked Questions

Does this hitch include the bed base rails?

No. SKU 16120 includes the A16 5th wheel head, leg assemblies, and mounting hardware. Base rails and vehicle-specific under-bed brackets are sold separately.

Do I need to grease the kingpin top plate?

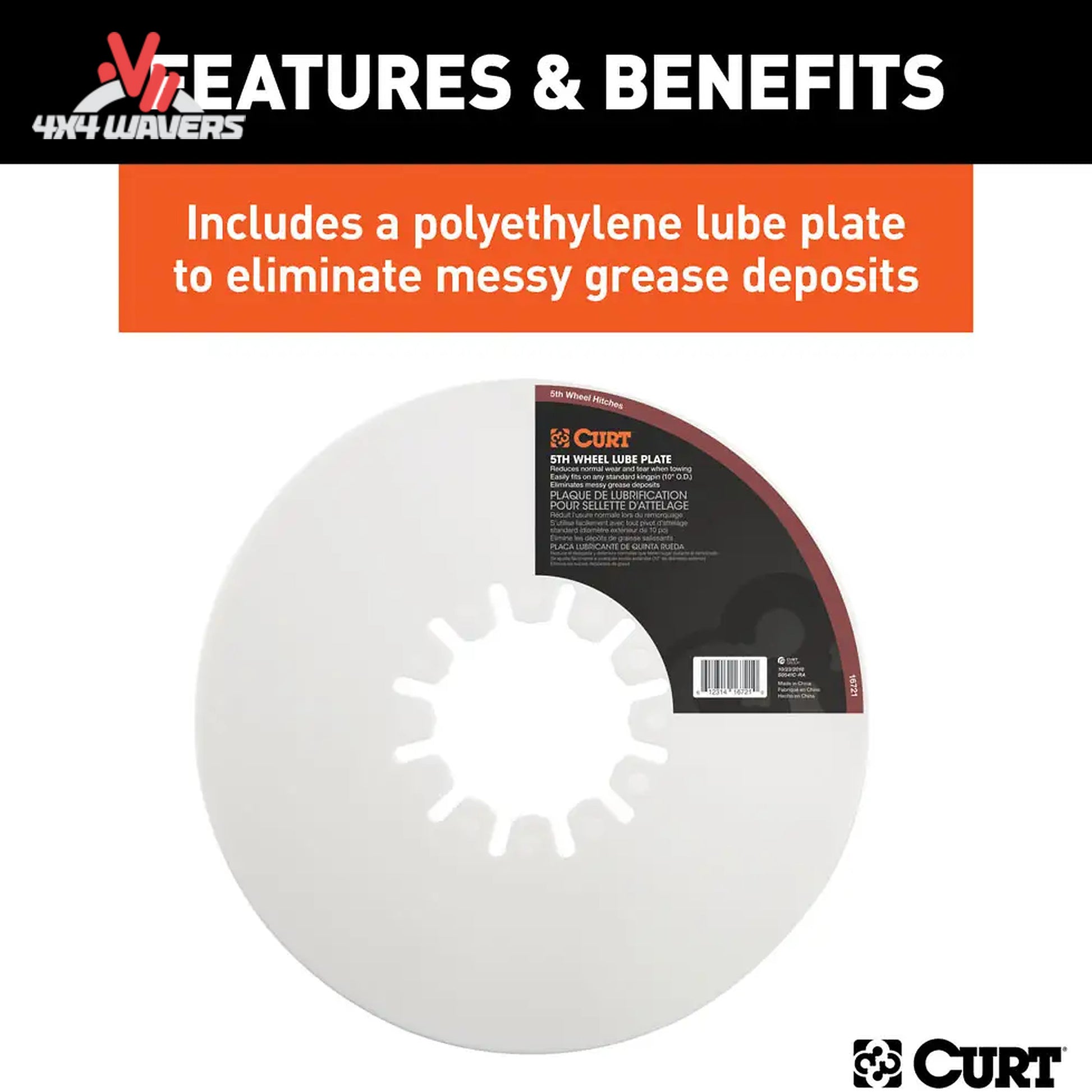

The CURT A16 includes a heavy-duty polyethylene lube plate that eliminates the need for messy grease deposits on the head plate while preventing friction wear.

SKU: 16120
