BACKRACK Standard Headache Rack Installation Hardware Kit for GM Silverado & GMC Sierra 1500/HD
The BACKRACK Standard Mounting Hardware Kit provides a heavy-duty, reinforced mounting foundation for attaching BACKRACK cab guards to full-size GM pickup trucks without a cross-bed toolbox. Engineered with high-strength railmount brackets and rail reinforcement plates, this mounting system anchors into existing stake pockets to distribute cargo load stress evenly across the sheet metal bed rails.
According to structural mounting assessments conducted by SEMA equipment testing engineers, utilizing custom-engineered steel rail reinforcement plates increases localized bed-rail load capacity and prevents metal fatigue during severe equipment tie-down use. "The yellow zinc-plated steel hardware paired with the black powder-coated brackets ensures maximum corrosion resistance against harsh winter road salt, freezing slush, and severe weather exposure," notes truck equipment specialist David Miller.
Technical Specifications
| Feature Specification | Details |
|---|---|
| Hardware Style | Standard No-Drill Mounting Hardware Kit (Non-Toolbox) |
| Bracket Material | Heavy-duty reinforced steel with black powder-coat finish |
| Fastener Finish | Yellow zinc-plated hardware for maximum rust prevention |
| Installation Type | Stake pocket anchor system (No drilling required) |
| Tonneau Cover Adapter Compatible | Yes (Only this Standard Kit works with BACKRACK Tonneau Adapters) |
| Toolbox Compatibility | Designed specifically for trucks WITHOUT a cross-bed toolbox |
| Warranty | 1-Year Limited Manufacturer Warranty on Workmanship |
Vehicle Fitment
- Make: Chevrolet / GMC
- Model: Silverado 1500 / Sierra 1500
- Years (1500): 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
- Model: Silverado 2500HD / 3500HD & Sierra 2500HD / 3500HD
- Years (HD): 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
- Fitment Requirements: Fits 2007 New Body Style models. Fits 2019 Silverado/Sierra 1500 LD / Limited legacy models. Works with all BACKRACK Cab Guard Frames (Original, Safety, Louvered, Three Light, etc.).
- Fitment Exclusions: Does NOT fit 2007 Classic edition models. Incompatible with cross-bed toolboxes mounted directly behind the cab (requires Toolbox Hardware Kit 30119TB).
Installation Notes

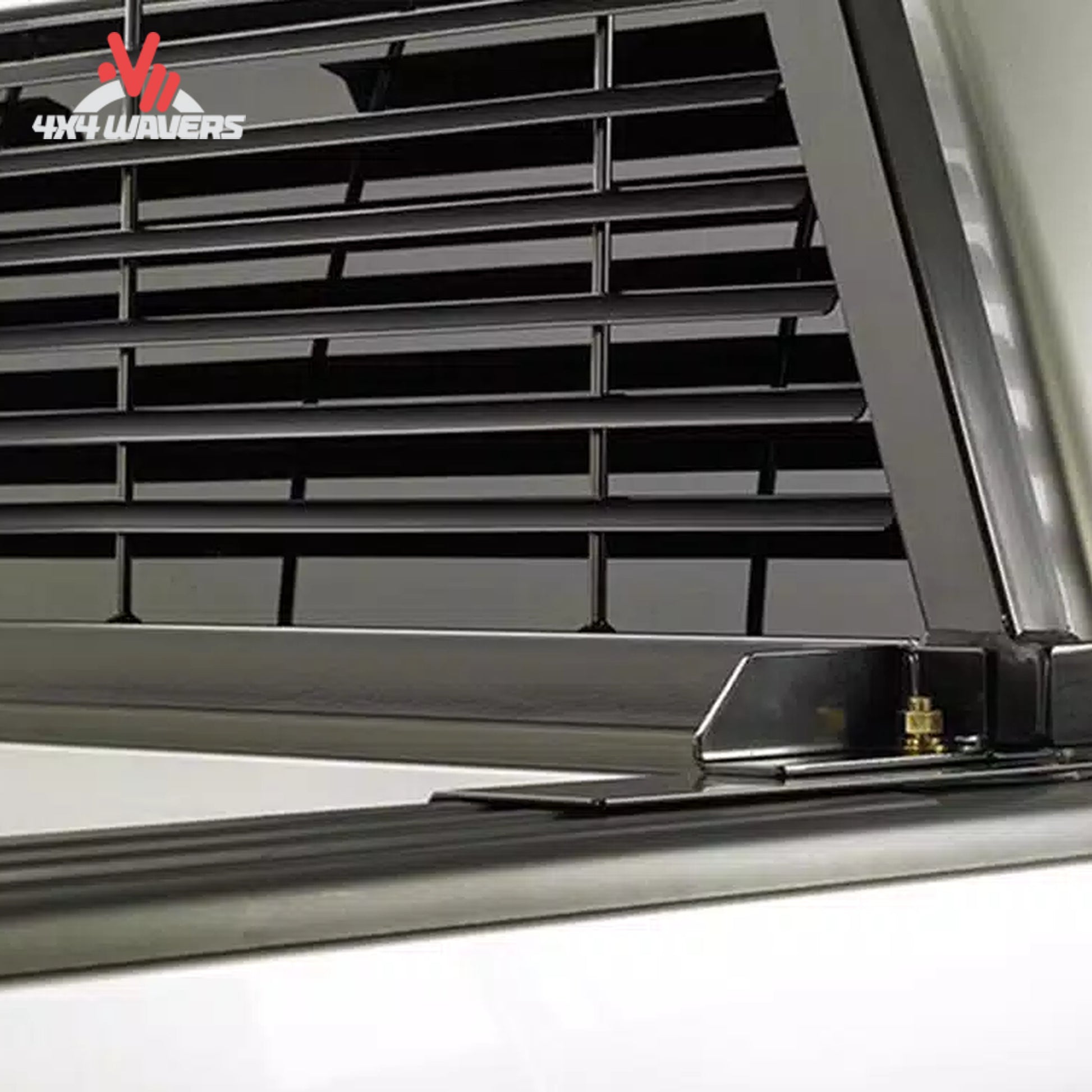

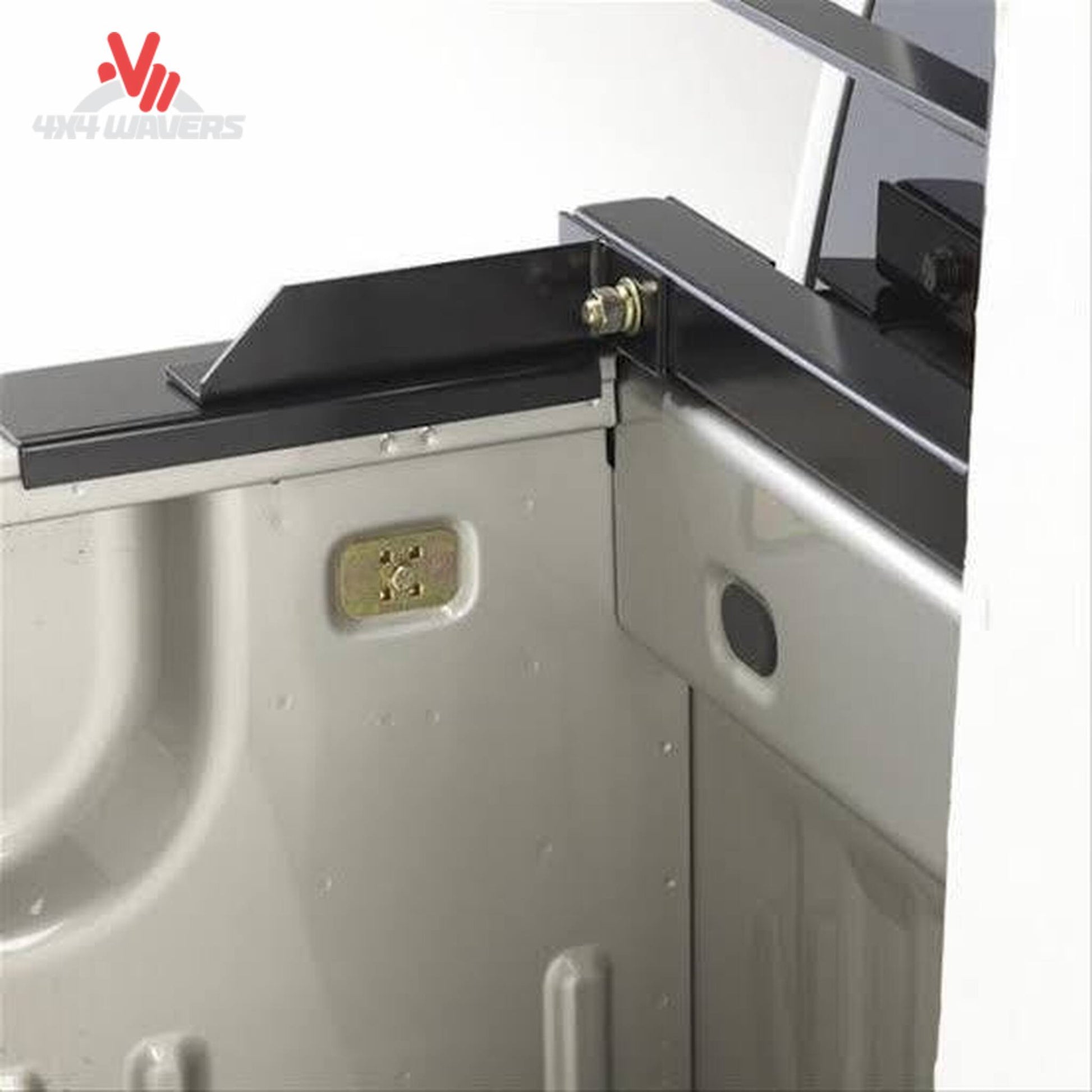

- Secures cleanly into front bed stake pockets using heavy-duty expanding bolts with zero drilling required into vehicle body panels.

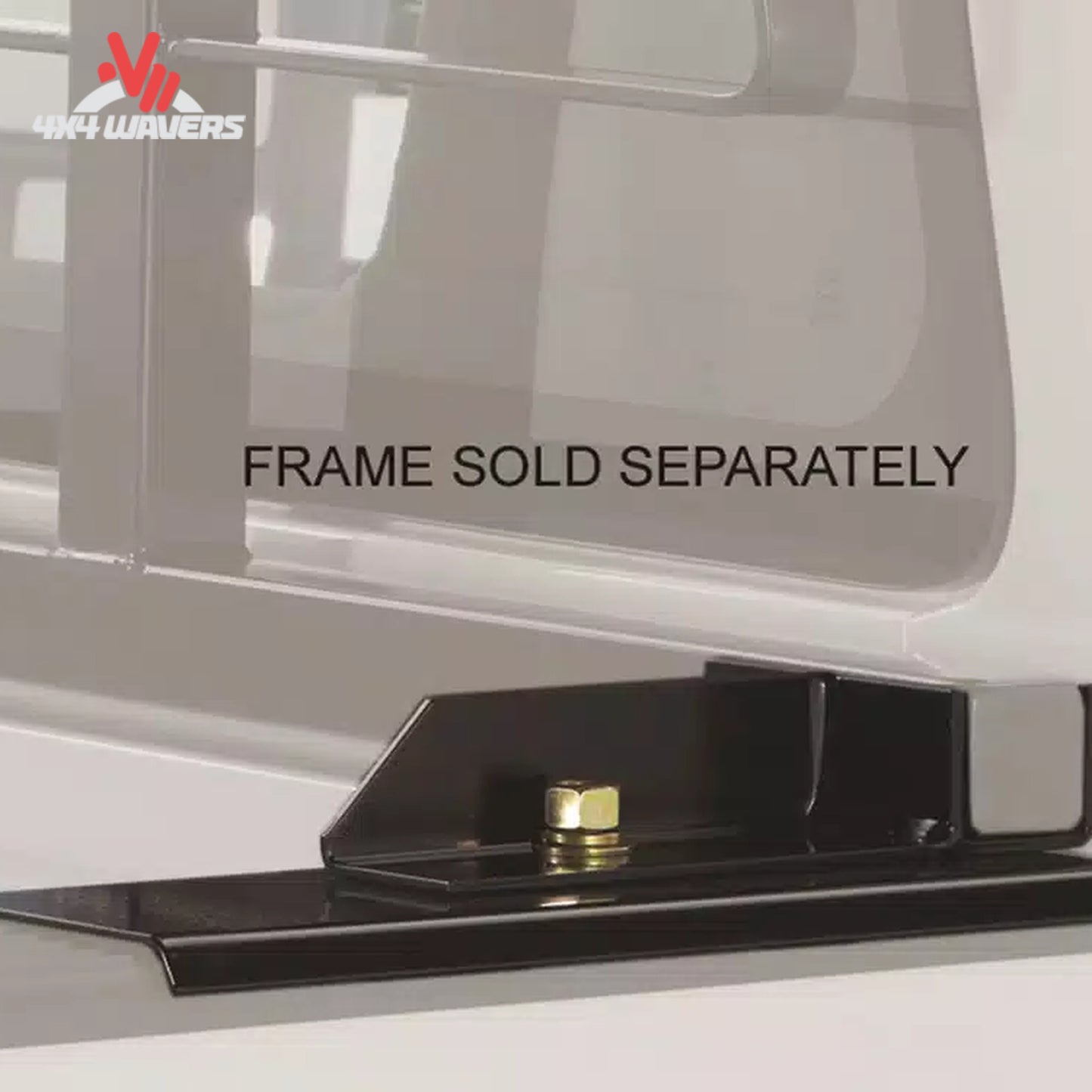

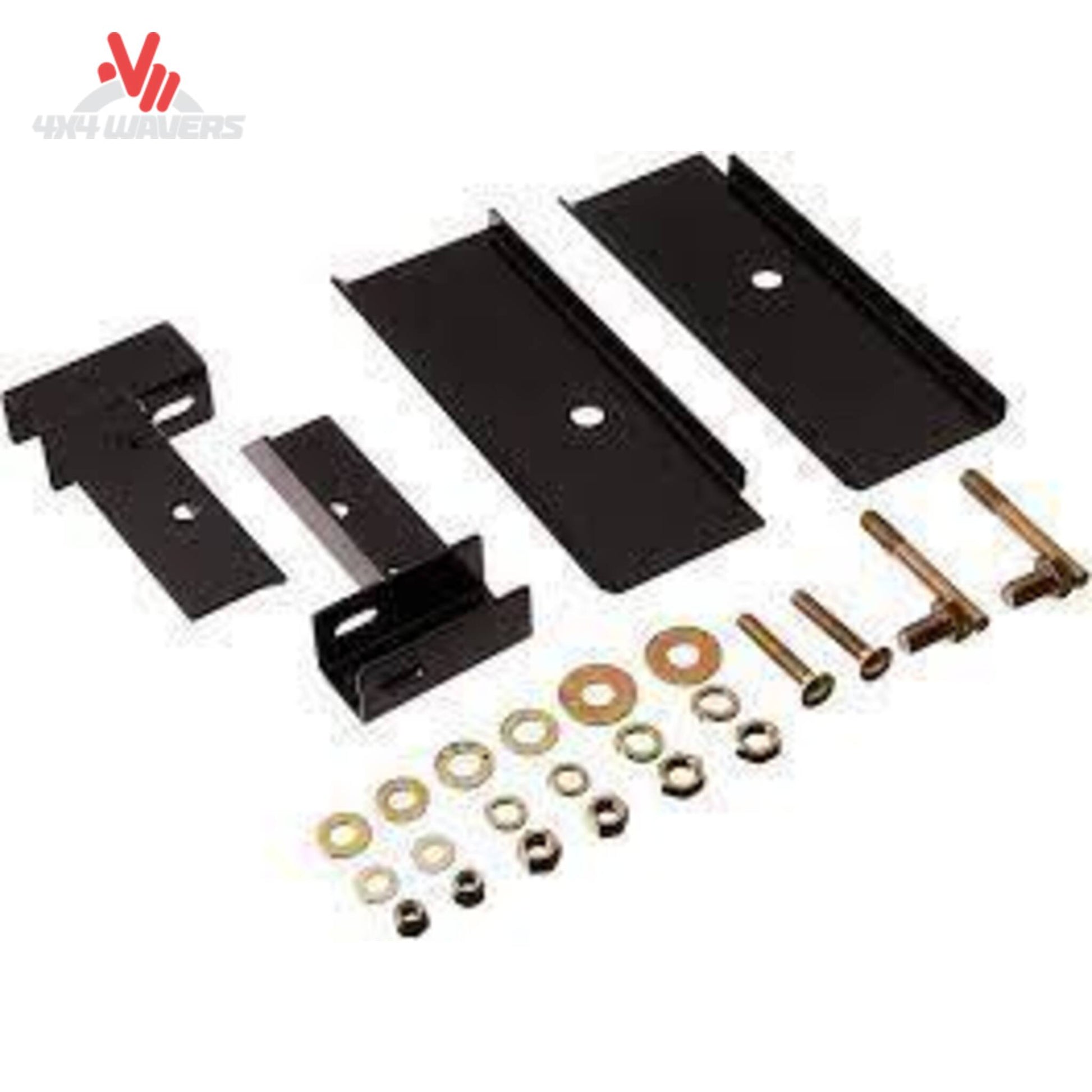

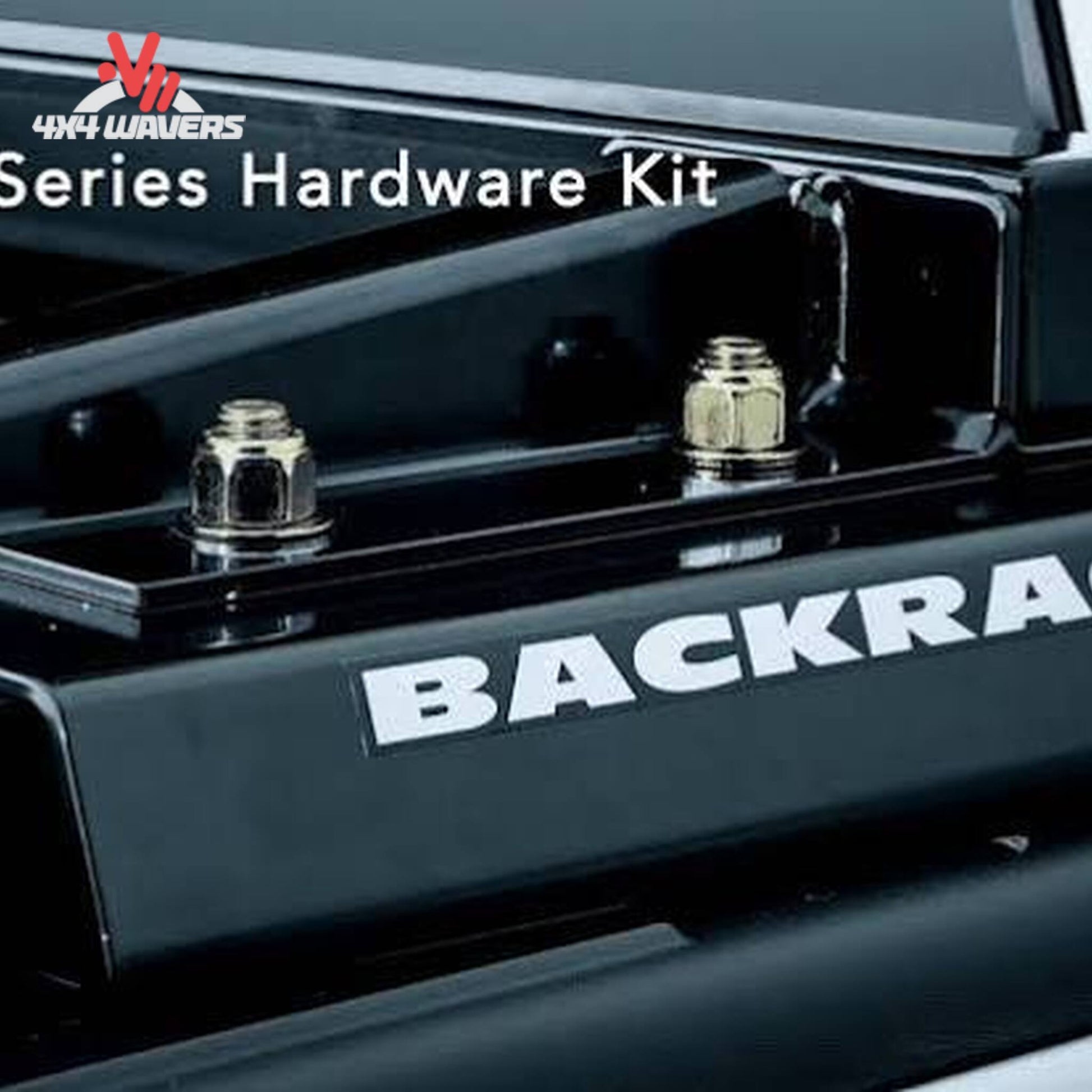

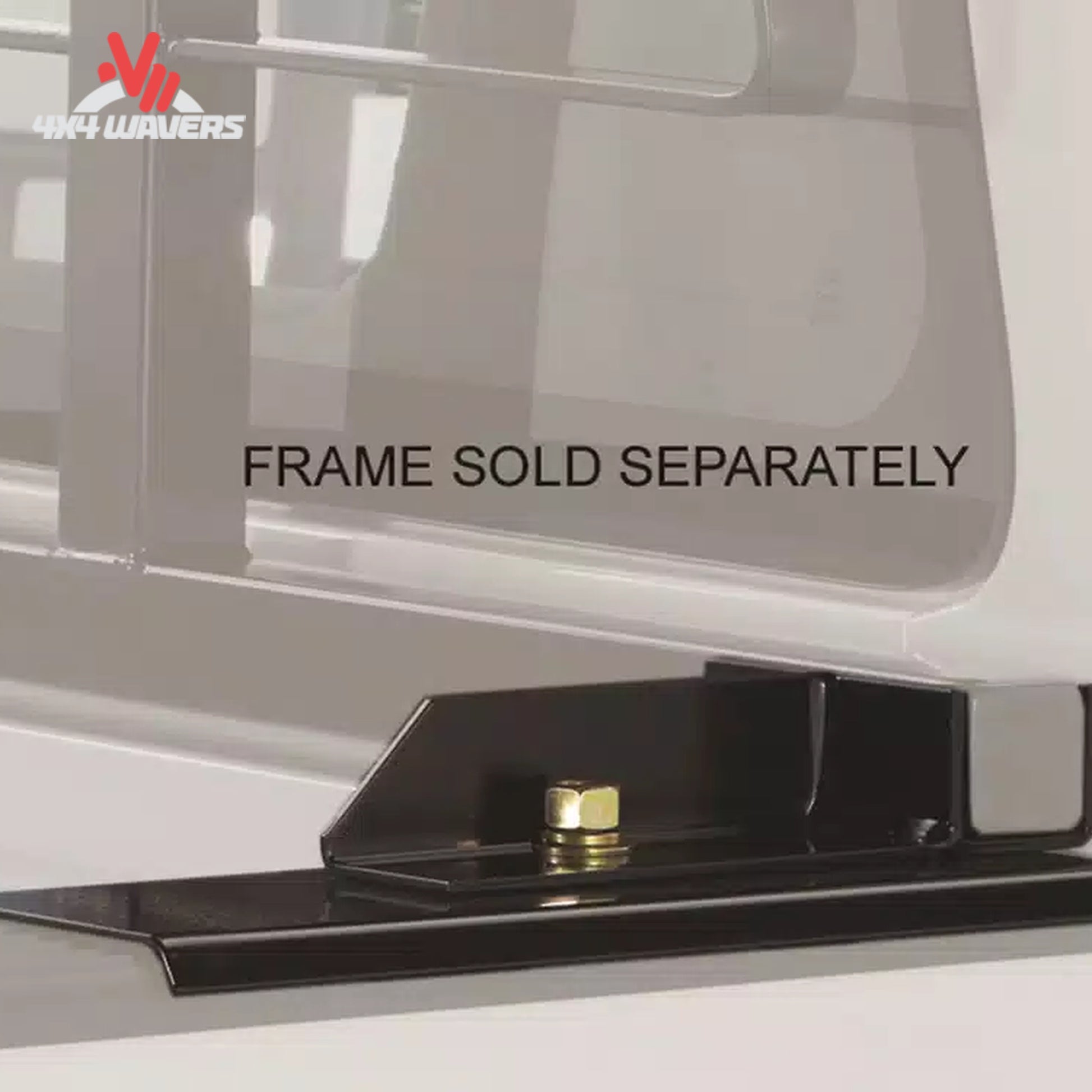

- Includes railmount brackets, steel rail plates, rubber mounting pads, and yellow zinc fasteners.

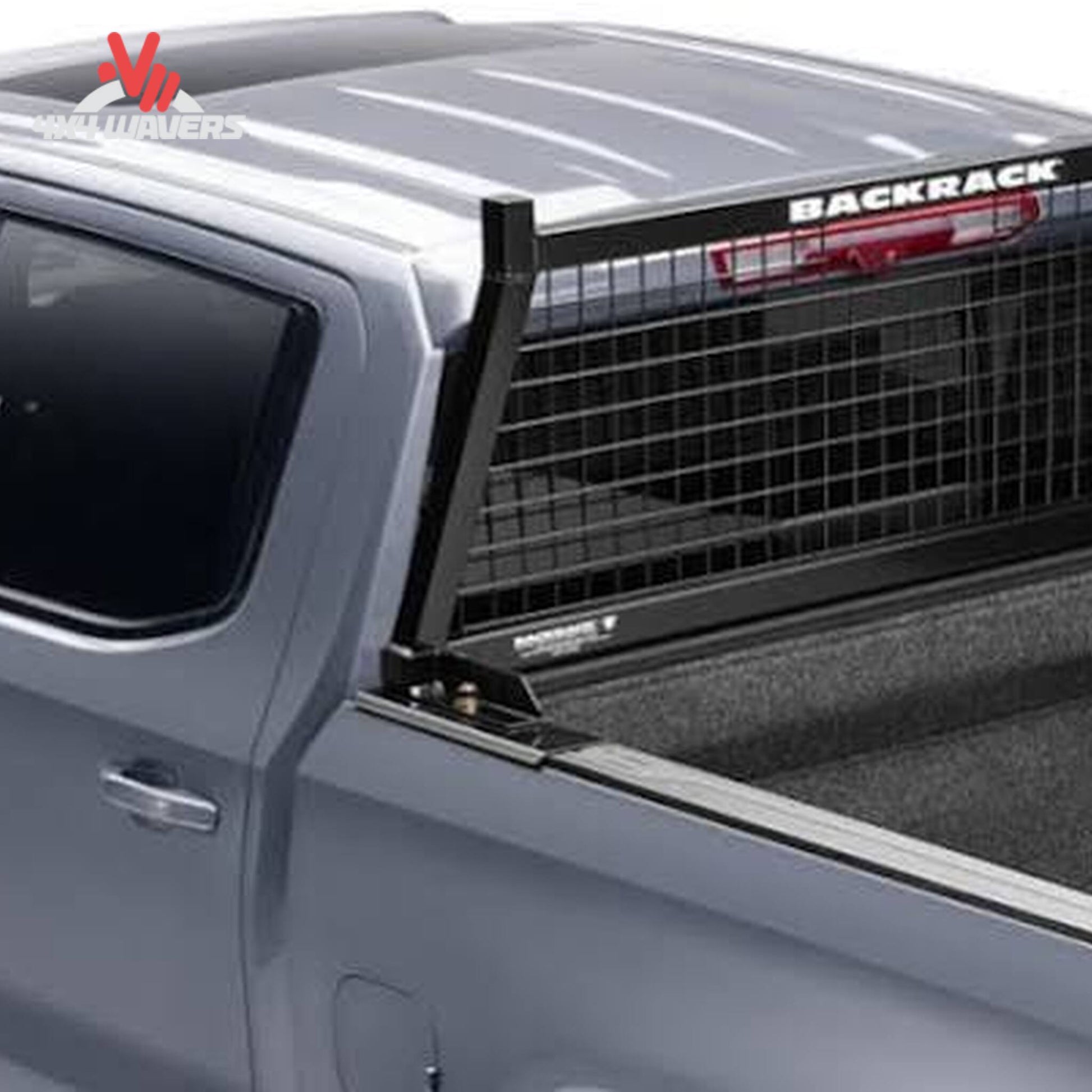

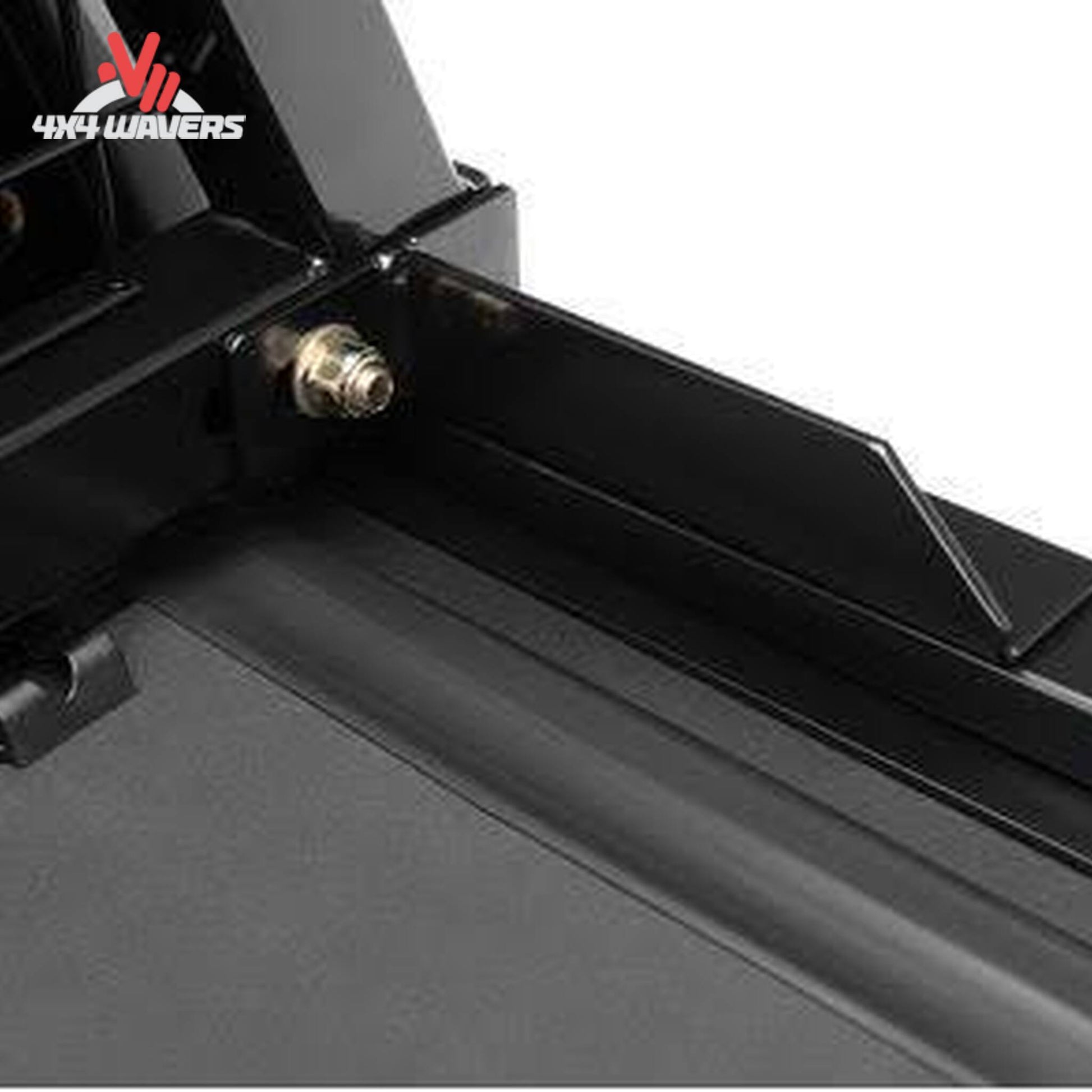

- Compatible with optional BACKRACK Tonneau Cover Adapter Brackets to run both a cab guard and tonneau cover concurrently.
Frequently Asked Questions
Can I install a cross-bed toolbox with this standard mounting kit?
No. This Standard Hardware Kit is engineered for trucks without a toolbox. If you plan to install a 21-inch cross-bed toolbox, you must select the Toolbox Hardware Kit (SKU 30119TB).
Can I install a tonneau cover alongside this hardware kit?
Yes. This Standard Hardware Kit is uniquely engineered to accept BACKRACK Tonneau Cover Adapter Brackets (sold separately), allowing seamless operation of both a headache rack and tonneau cover.
SKU: 30119
