Air Lift LoadLifter 5000 Ultimate Air Spring Kit | 21-26 Ford F-150 Raptor
Air Lift LoadLifter 5000 Ultimate Air Spring Kit | 21-26 Ford F-150 Raptor
No se pudo cargar la disponibilidad de retiro
Heavy-Duty Off-Road Load-Leveling Suspension Support for Factory Long-Travel Trucks

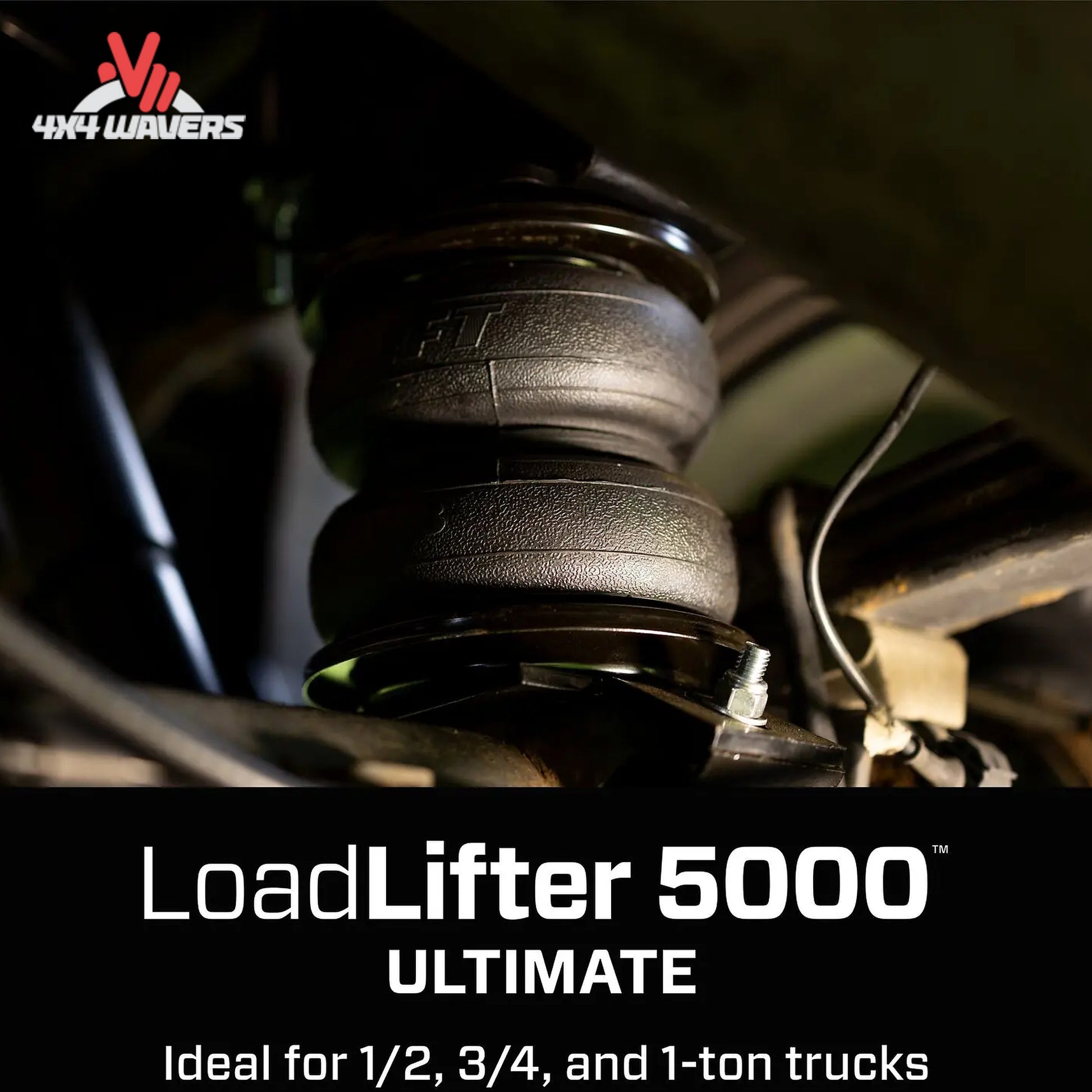

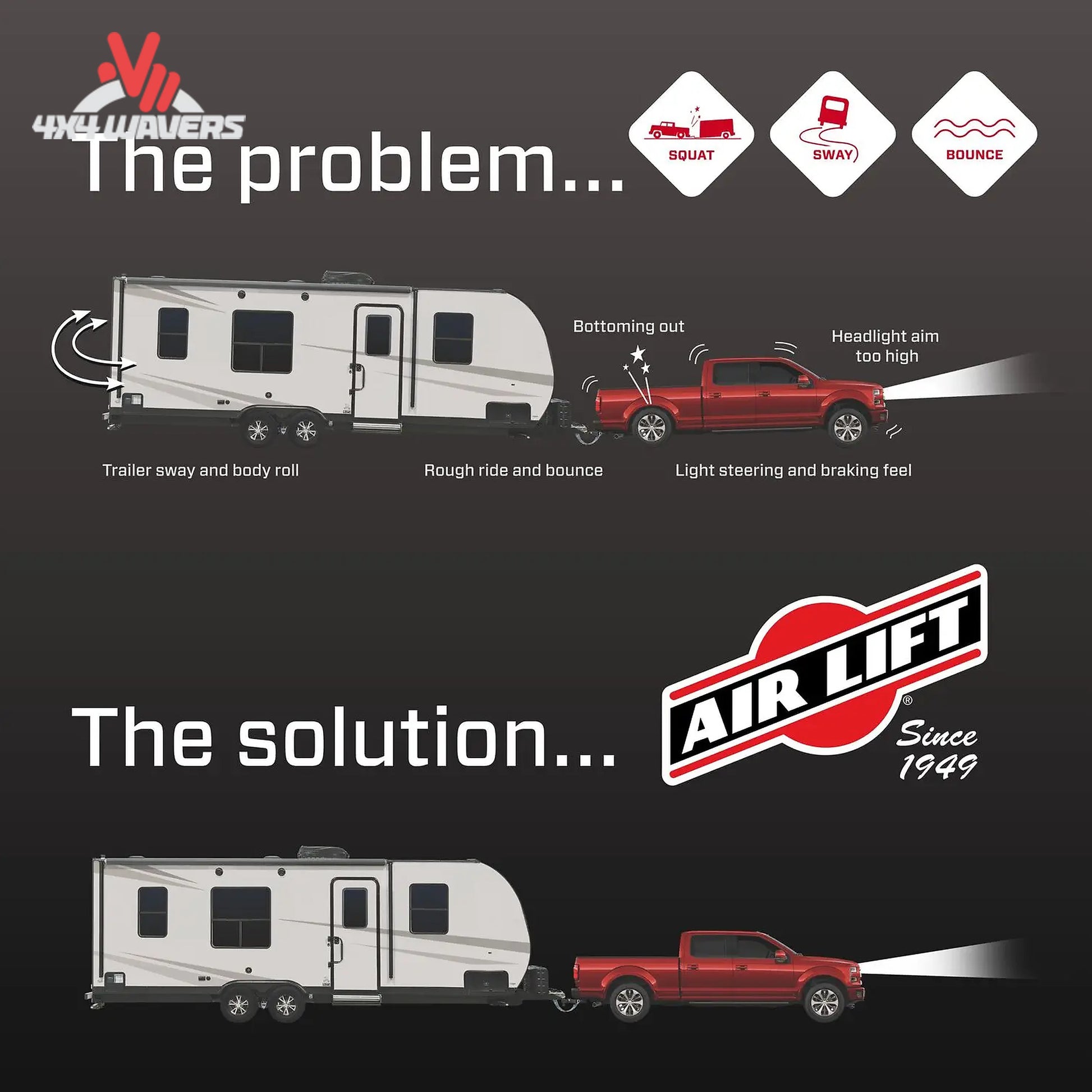

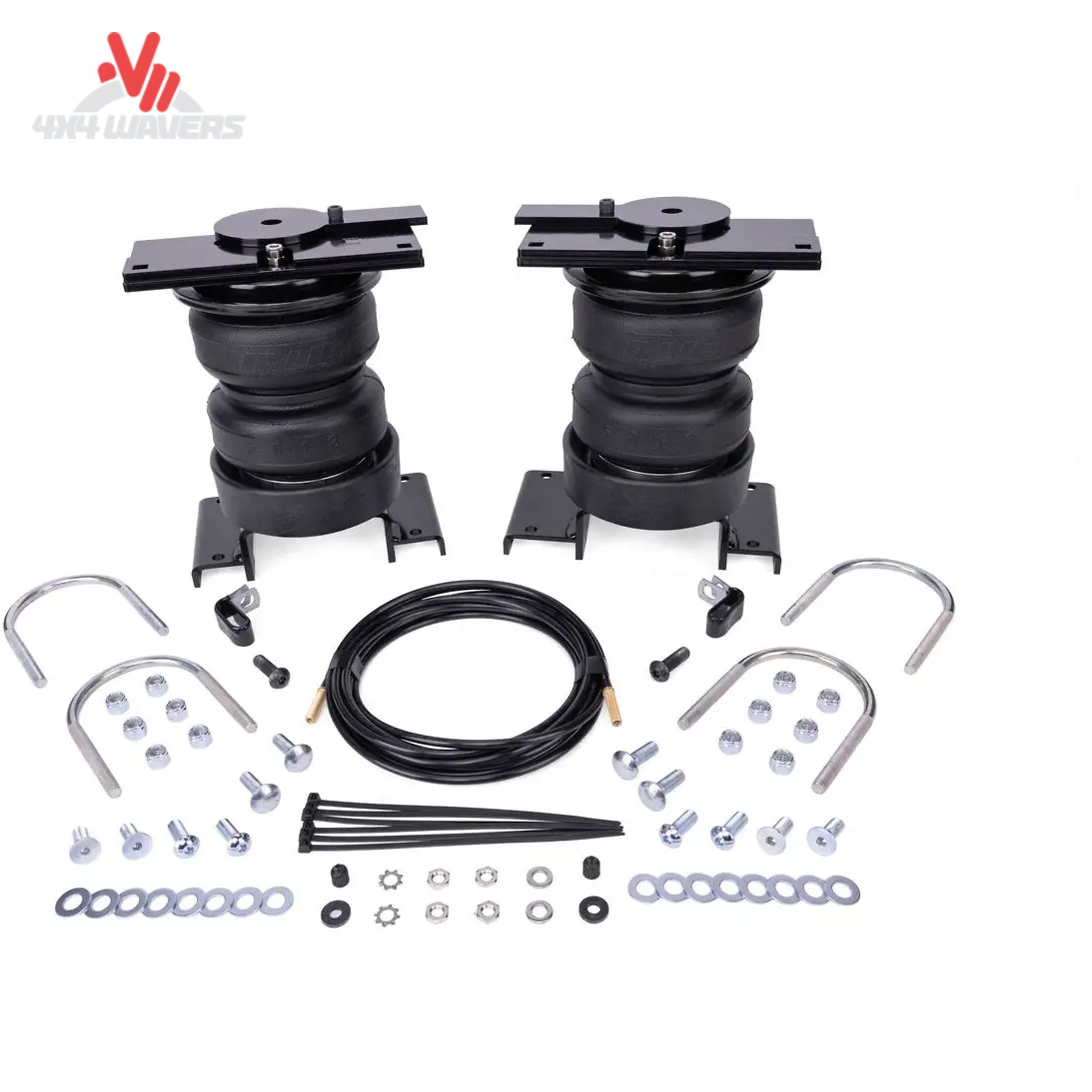

The Air Lift LoadLifter 5000™ Ultimate Air Spring Kit with Air Spring Cradles (MPN: 88414 | SKU: BBCG_88414) delivers up to 5,000 lbs. of load-leveling capacity without restricting the suspension articulation on off-road trucks. Purpose-built to handle severe sub-zero winter freeze cycles, extreme overland payloads, and aggressive highway road salt spray across Canadian transit routes, this heavy-duty suspension system eliminates rear-end squat, trailer sway, and bottoming out. Suspension engineering specialists emphasize that maintaining level ride height during high-speed towing or heavy bed loading is critical for maintaining proper steering control, headlight alignment, and front tire traction on performance platforms.

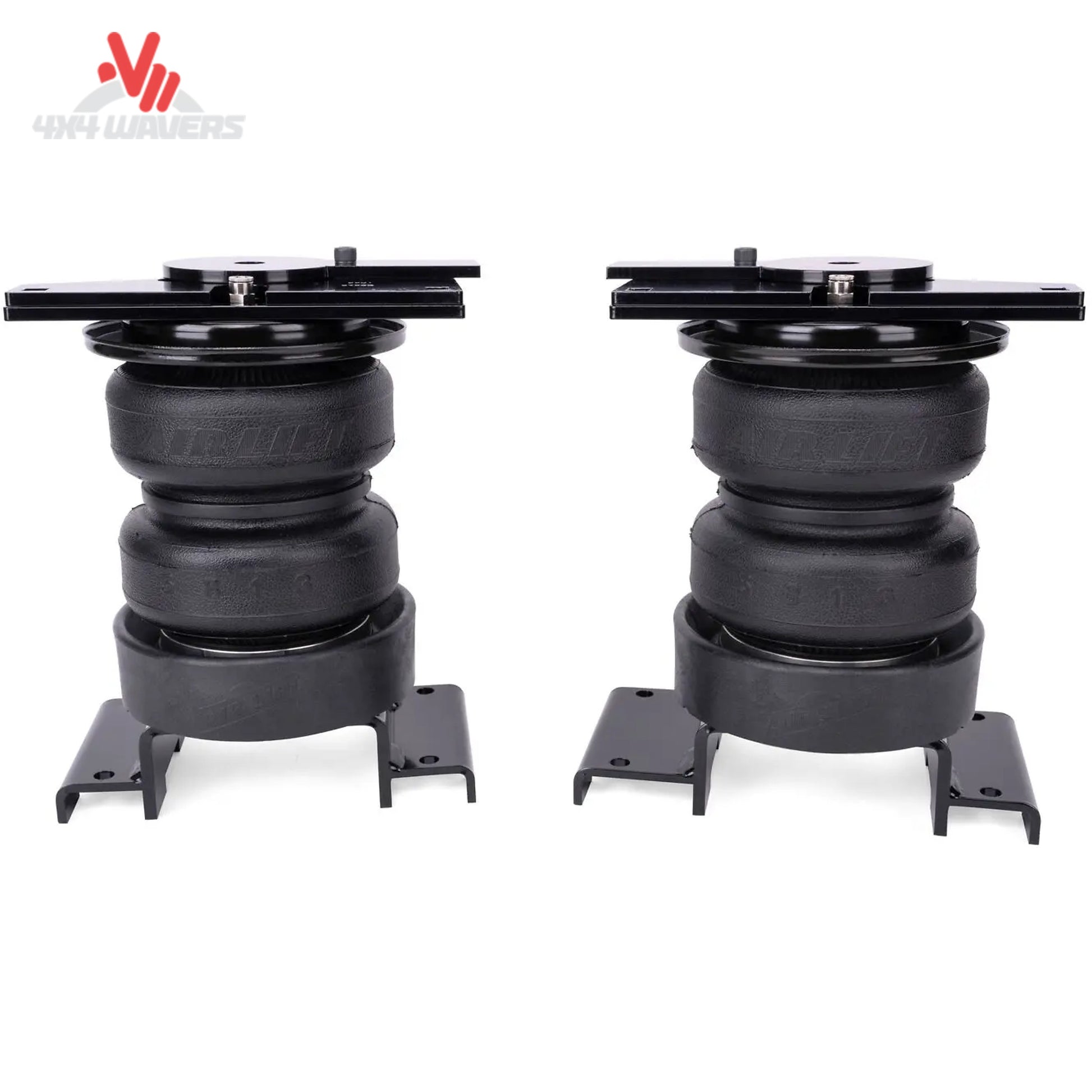

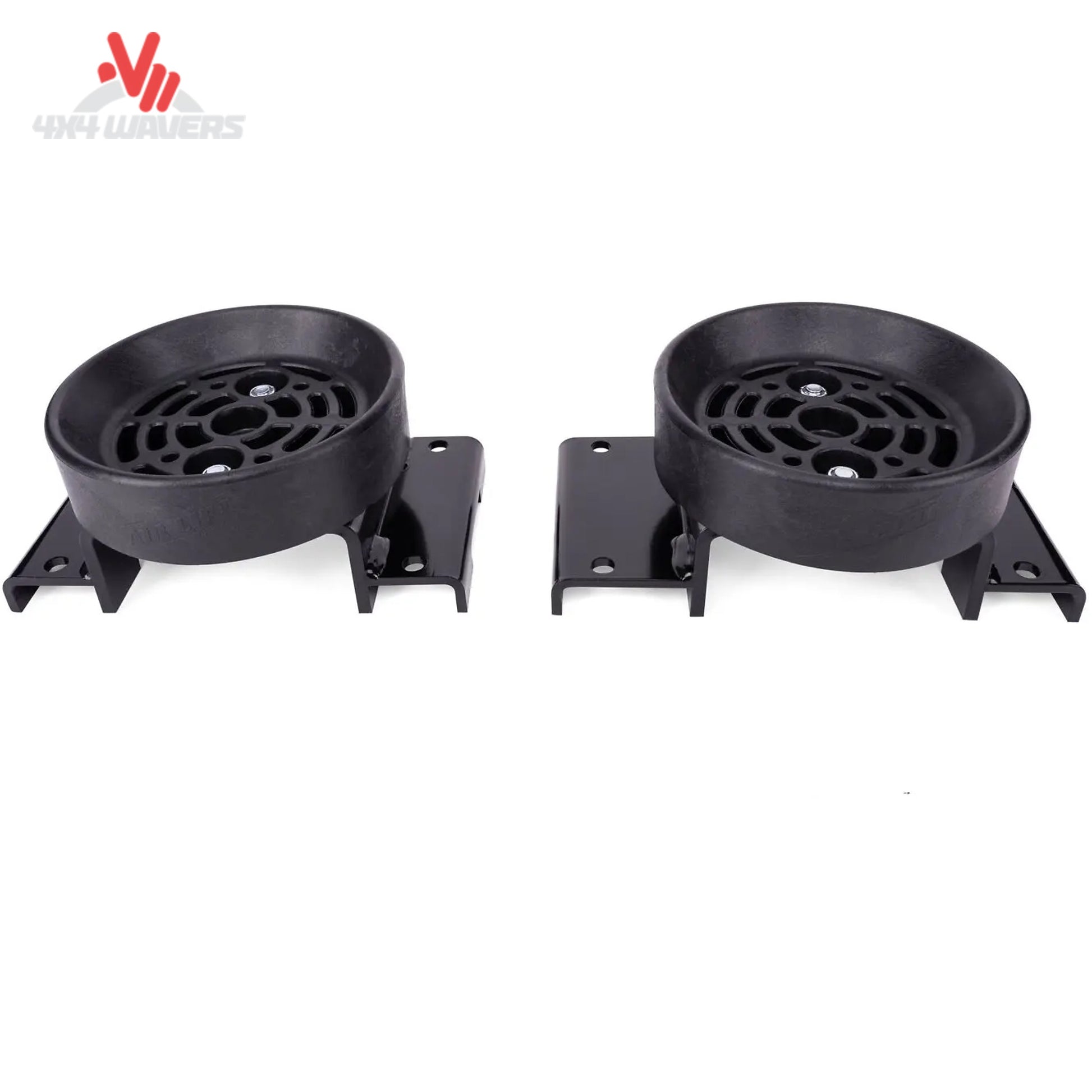

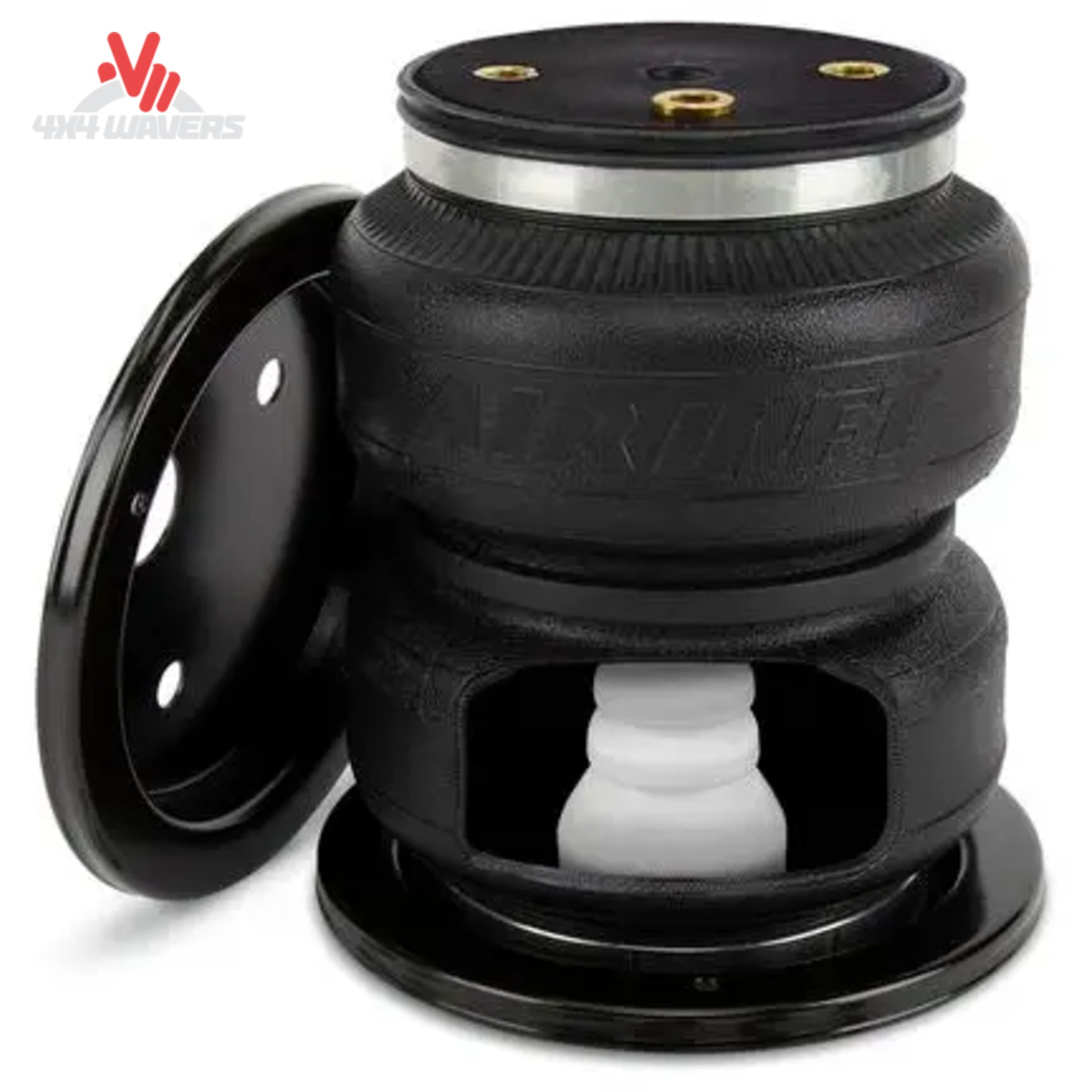

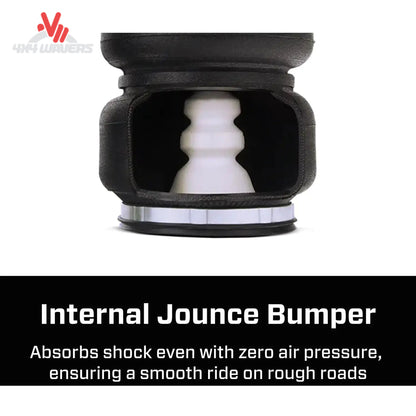

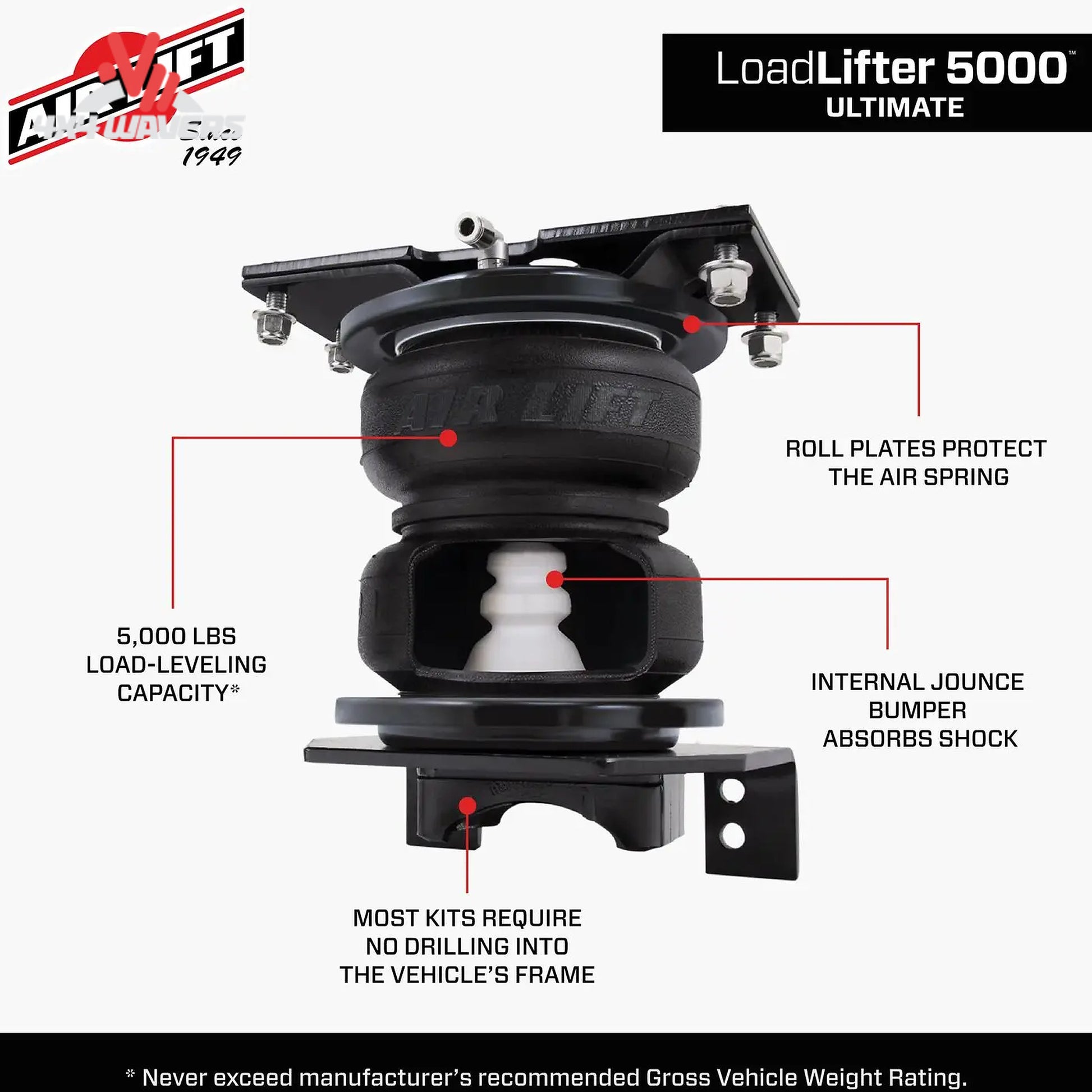

Because this Ultimate kit includes lightweight resin Air Spring Cradles with integrated drain holes, the double-convoluted air springs safely detach from the lower axle mounts during extreme suspension droop, preserving the Raptor's full off-road articulation travel. An internal closed-cell urethane jounce bumper inside each air spring absorbs severe road impacts and allows safe operation at zero PSI without damaging the rubber bellows. Fully adjustable between 5 PSI and 100 PSI, this system allows drivers to tune firmness precisely for heavy bumper-pull trailers or empty high-speed desert running while eliminating harsh metal-on-metal bottoming out.
Technical Specifications
| Specification Feature | Engineered Product Details |
|---|---|
| Brand Alignment | Air Lift Company (LoadLifter 5000™ Ultimate Series) |
| Manufacturer Part Number (MPN) | 88414 |
| Store SKU Identifier | BBCG_88414 |
| Load-Leveling Capacity | Up to 5,000 lbs. (Do not exceed vehicle GVWR) |
| Air Pressure Operating Range | 0 PSI to 100 PSI (Safe at 0 PSI via Internal Jounce Bumper) |
| Bellows Construction | Double-Convoluted Reinforced Synthetic Rubber Bellows |
| Internal Protection | Internal Urethane Jounce Bumper Absorbs Road Shock |
| Articulation Hardware | Includes Air Spring Cradles for Full Off-Road Suspension Extension |
| Mounting Location Style | Underframe Kit (Direct Bolt-On Chassis Alignment) |
| Frame Drilling Requirement | No Drilling Required on Sheet Metal or Chassis Rails |
| Factory Limited Warranty | Limited Lifetime Warranty + 60-Day Ride Satisfaction Guarantee |
Vehicle Fitment
This air helper spring suspension kit is custom-engineered explicitly for 3rd-generation Ford F-150 Raptor high-performance off-road trucks. Review your specific year and trim configuration below to guarantee proper fitment:
- Ford F-150 Raptor 4WD (3.5L High-Output V6 EcoBoost) | 2021, 2022, 2023, 2024, 2025, 2026
- Ford F-150 Raptor R 4WD (5.2L Supercharged V8) | 2023, 2024, 2025, 2026
Strict Fitment Exclusions: This kit is NOT compatible with standard non-Raptor Ford F-150 engines (2.7L EcoBoost, standard 3.5L EcoBoost, 5.0L V8, or 3.3L V6), 3.5L PowerBoost Full-Hybrid models, or fully electric F-150 Lightning EV platforms, all of which use different rear axle geometry and frame mounting brackets.
Installation Notes

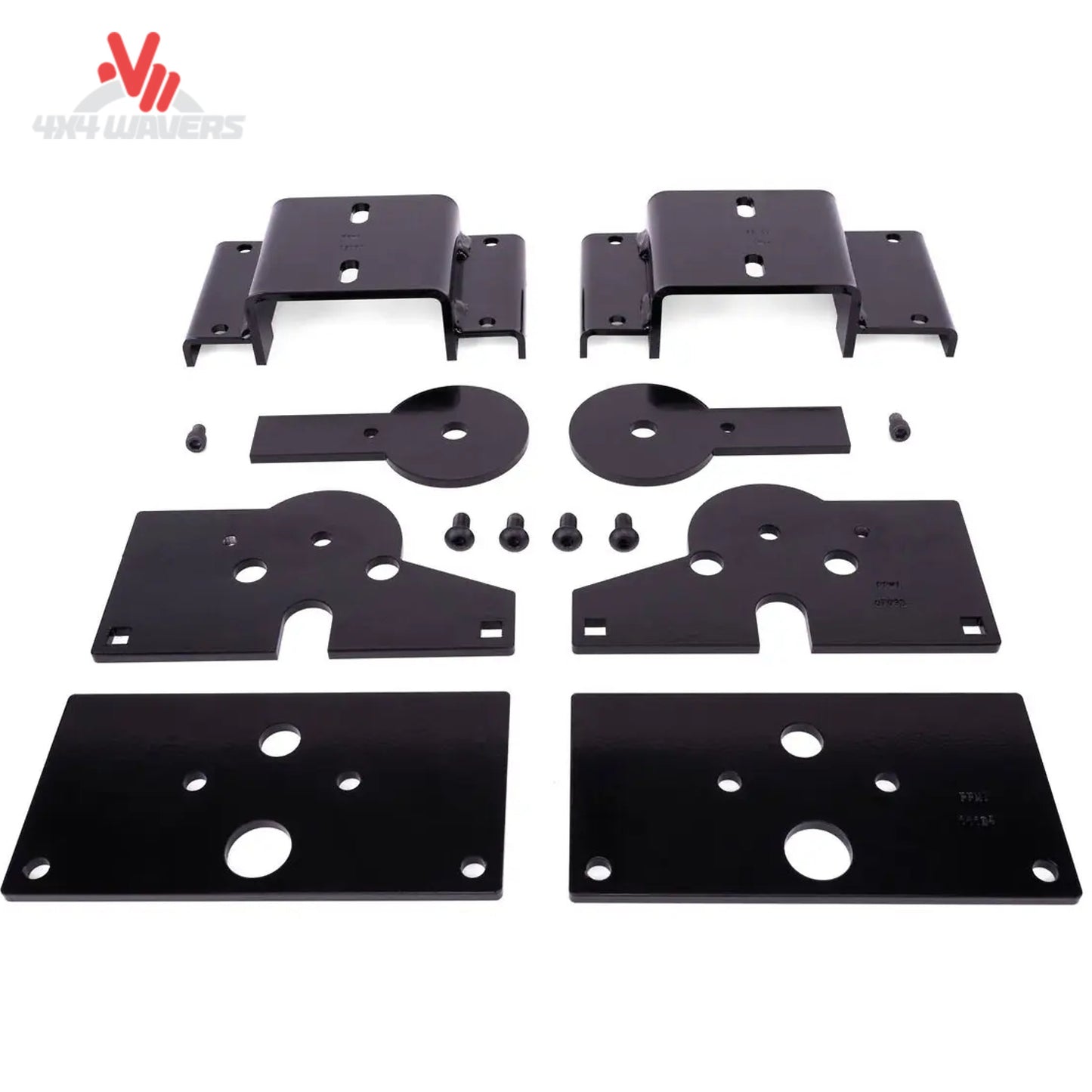

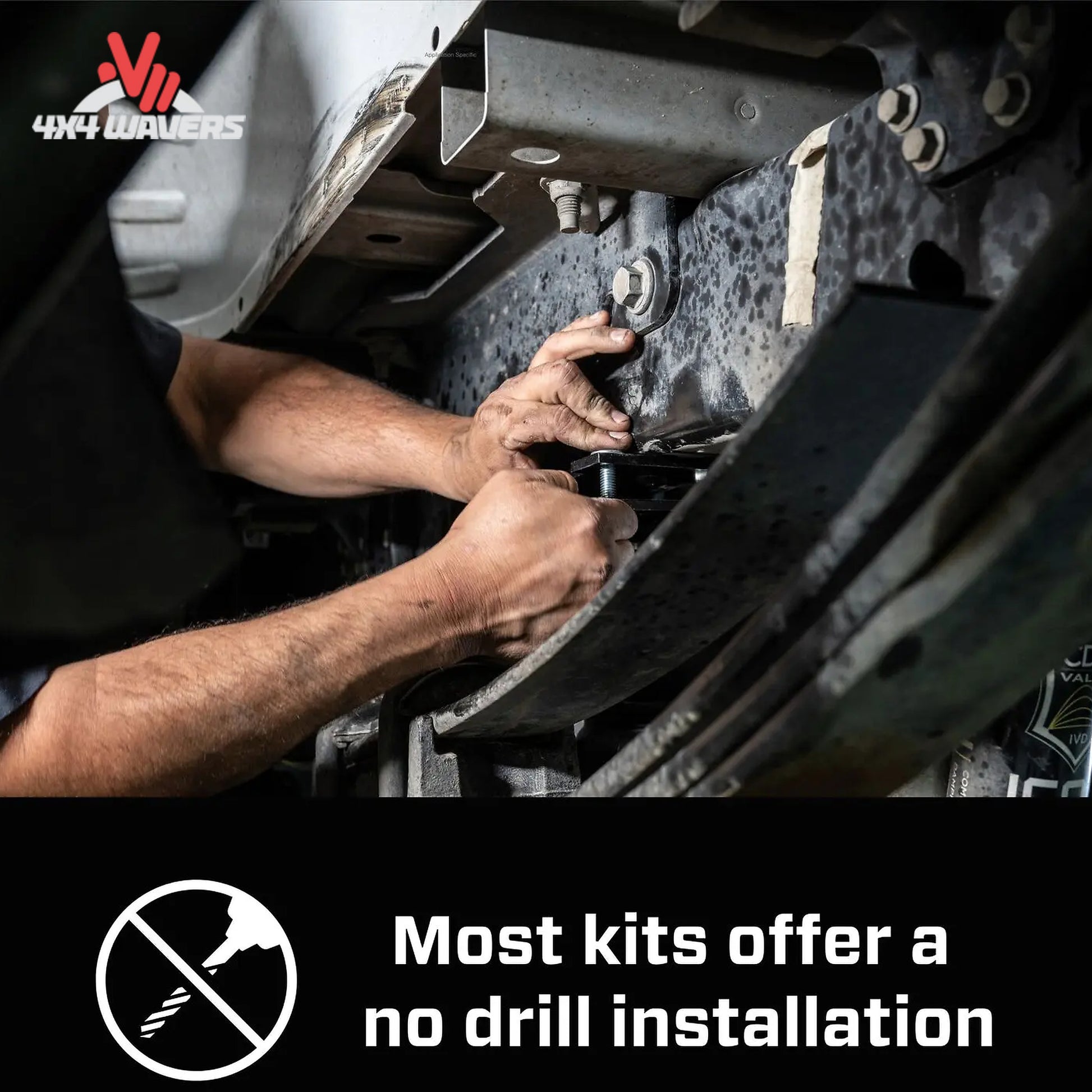

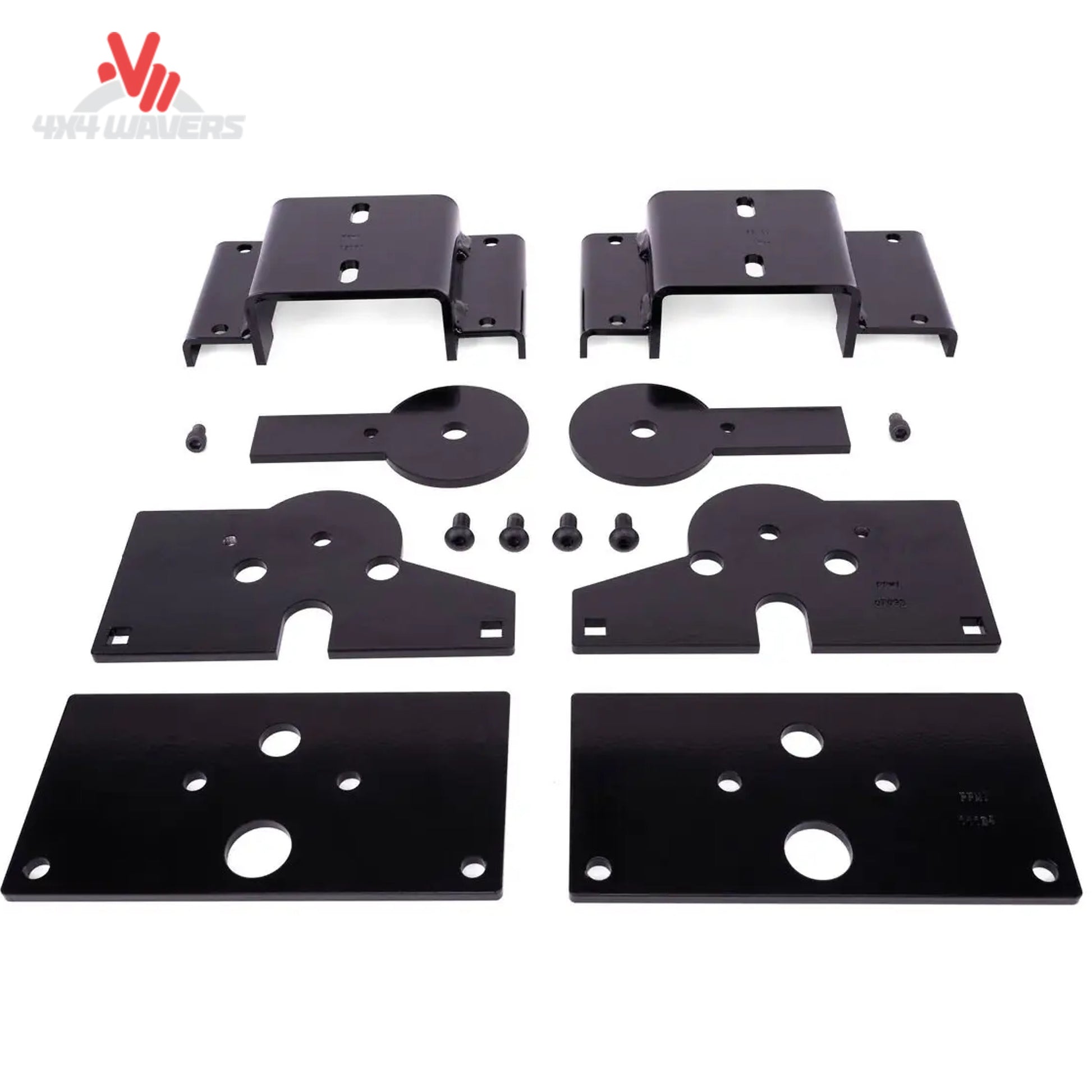

Designed as a direct bolt-on underframe kit, this system installs without drilling any holes into your vehicle's frame or sheet metal. The included resin cradles attach directly to the rear axle brackets, allowing the bottom of the air spring to unseat naturally when off-roading so suspension droop travel is never limited.
Standard installation takes approximately 2 hours using basic hand tools. Included Schrader inflation valves can be routed to your rear bumper or bed area, or paired with an optional Air Lift wireless on-board air compressor system for instant on-the-go cabin pressure adjustments.
Frequently Asked Questions
Will this air spring kit restrict my Raptor's rear suspension articulation when off-roading?
No. Kit 88414 includes Air Lift's specialized Air Spring Cradles. These lightweight resin cups allow the air springs to detach from the lower bracket during extreme suspension extension, preserving full off-road wheel travel and articulation.
Can I safely drive with 0 PSI in these air springs when unloaded?

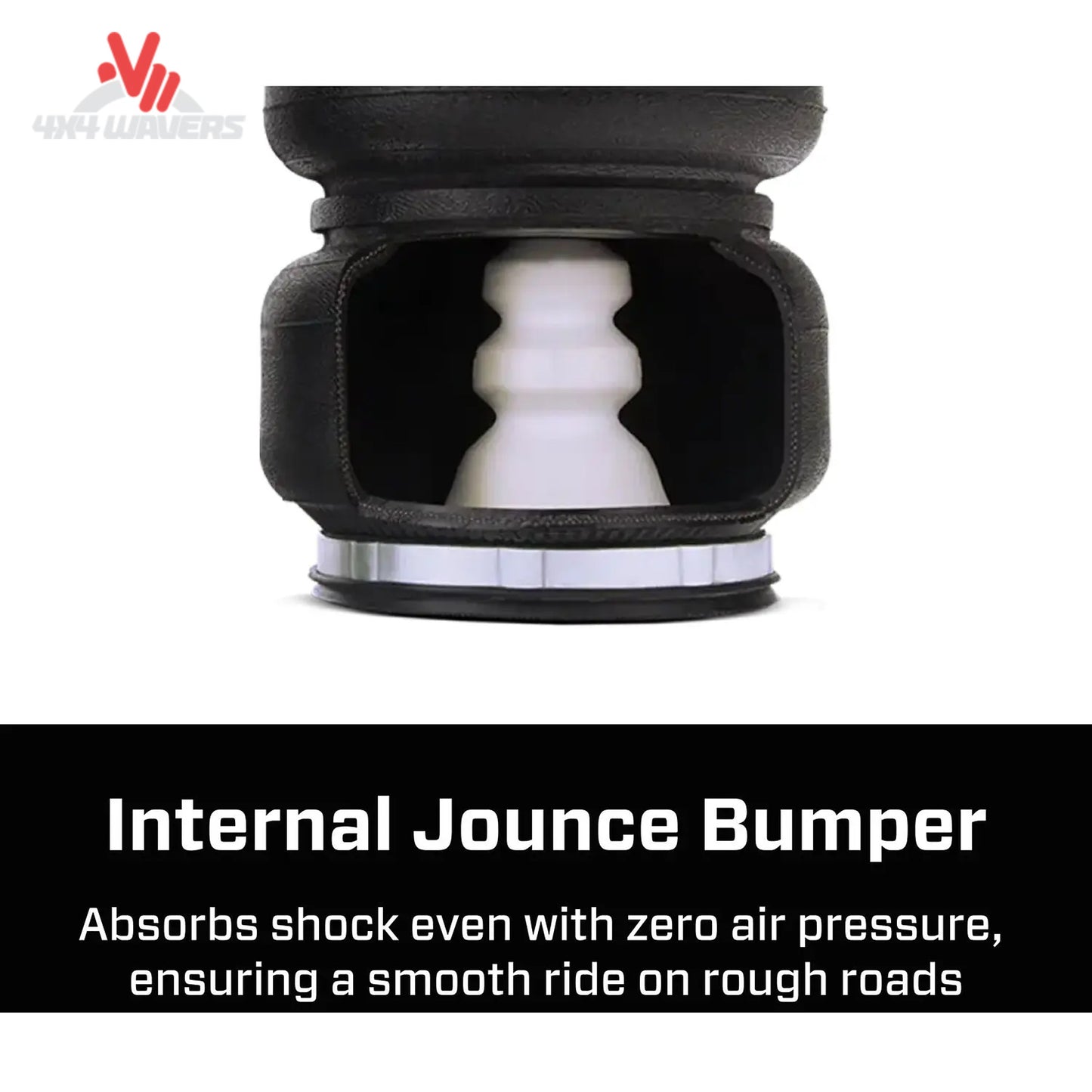

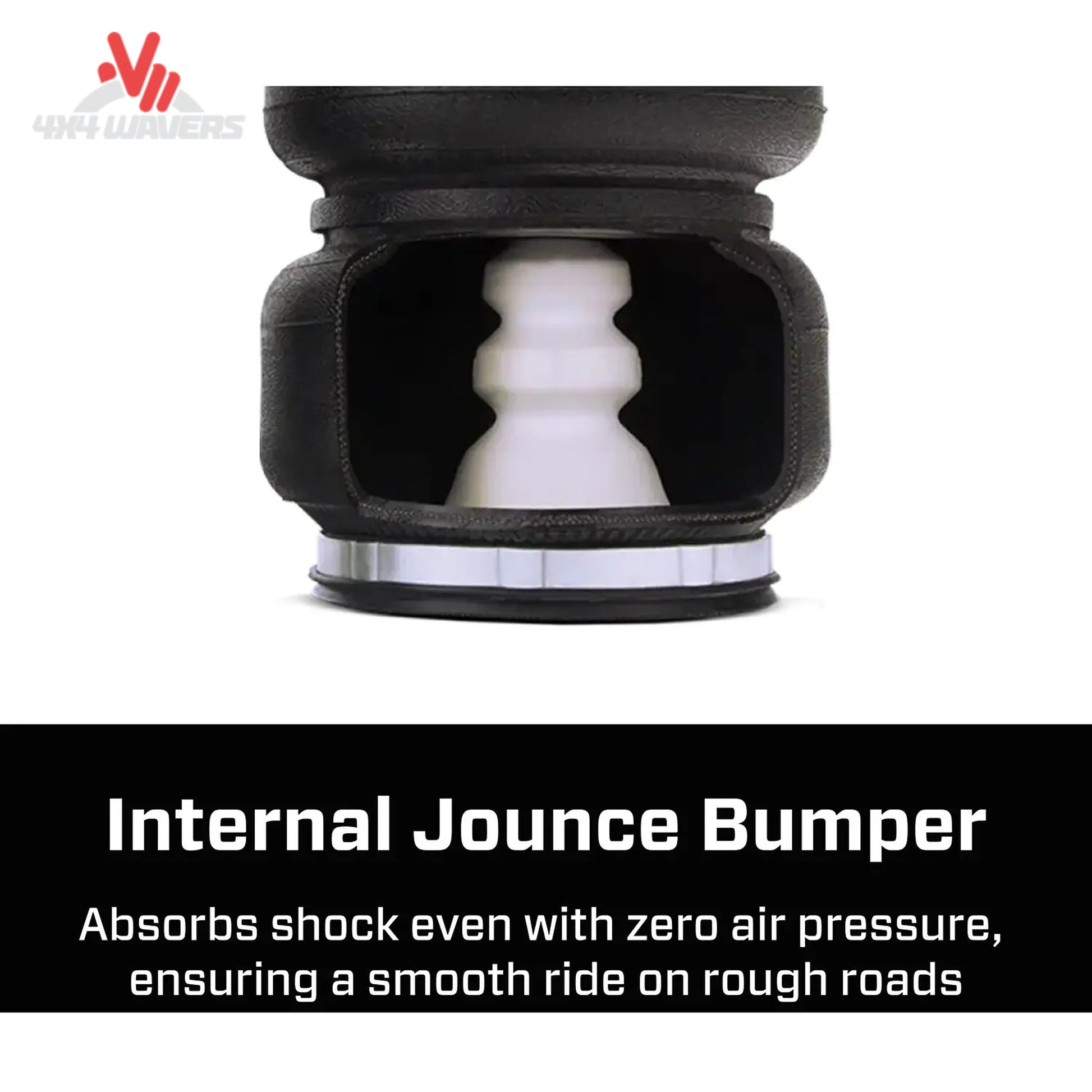

Yes. Because the LoadLifter 5000™ Ultimate features an internal closed-cell urethane jounce bumper inside the air bag, you can safely run zero air pressure when unloaded without damaging the rubber bellows or bottoming out harsh.
Does this kit fit the Ford F-150 Raptor R with the 5.2L Supercharged V8 engine?
Yes. This kit is fully compatible with both the 3.5L High-Output EcoBoost Raptor and the 5.2L Supercharged V8 Raptor R models across the 2021–2026 model years.
Does installing this kit increase my truck's factory payload capacity?
No. While it provides up to 5,000 lbs. of load-leveling support to eliminate squat and trailer sway, it does not increase your vehicle's factory Gross Vehicle Weight Rating (GVWR). Always haul within official manufacturer towing limits.
